Product Description

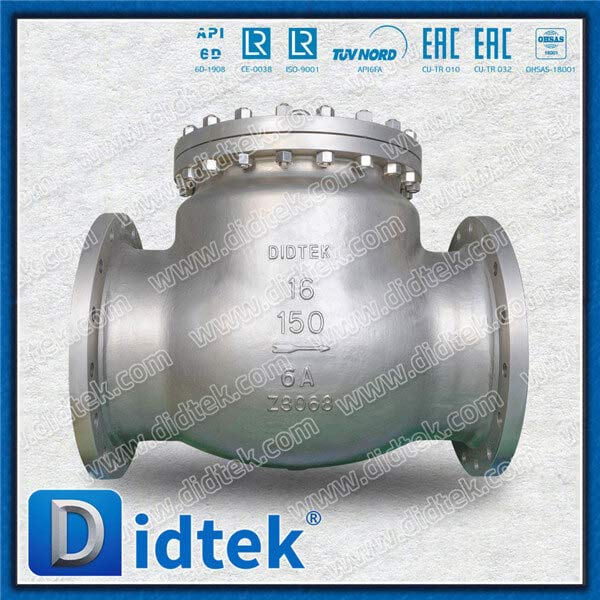

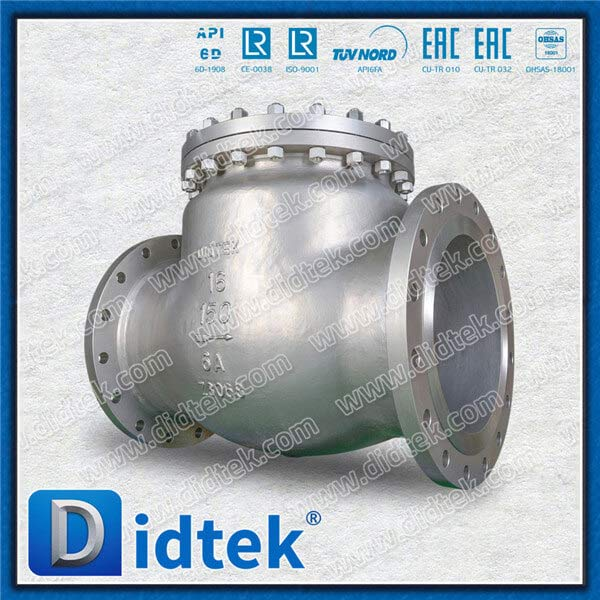

S32760 6A 16'' Flanged Full Opening Renewable Seat Horizontal Swing Check Valve

Applicable Standards:
Check Valve, BS1868
Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598

Material: 6A
Size Range: 2"~36"
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -29°C~425°C

Design Description:

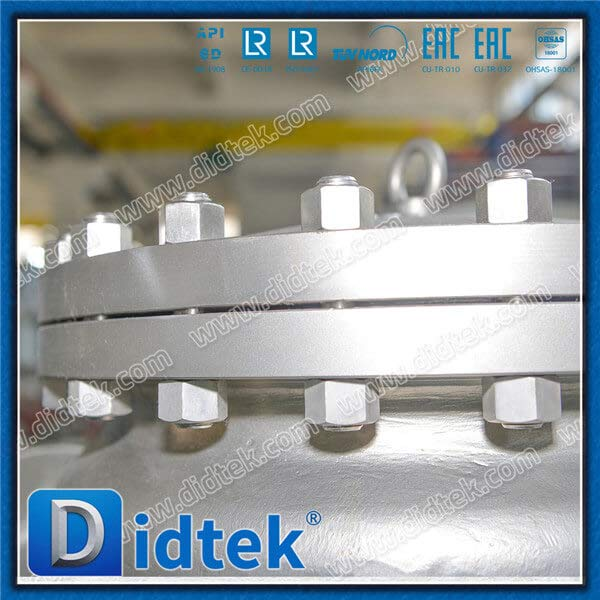

- Bolted Bonnet and Pressure Seal
- Welding seat rings or Renewable seat rings

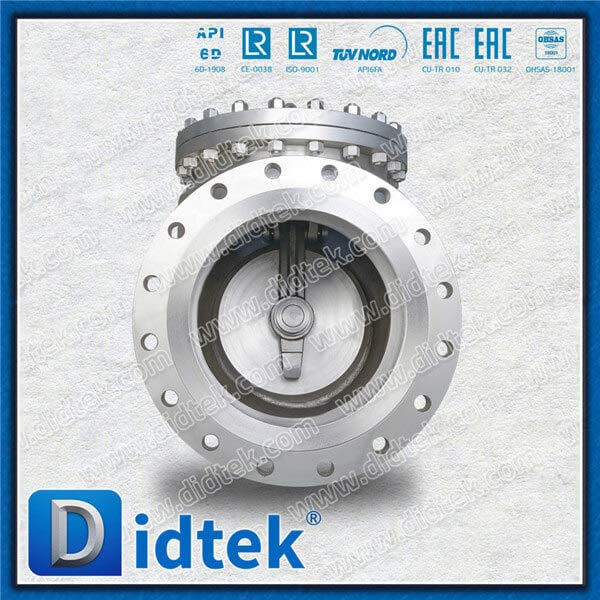

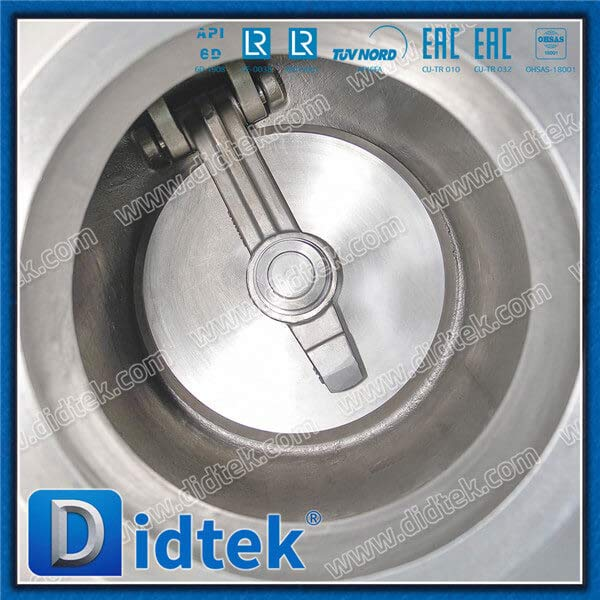

- Fully open disc
- Zero Leakage
- Flange Ends
- Buttwelding Ends
- Horizontal or vertical service.

Brand

DIDTEK

Structure

Check

Valve Material

Didtek provide cast steel, stainless steel, special alloy, CI, DI etc

Valve Type

Didtek Produce Check Valve

Valve Test

100% quantity tested before delivery

Valve Guarantee

18 months after shipments and 12 months after installed

Valve Structure

Swing Check Valve

Valve Delivery

15 - 30 days

Valve Sample

Sample Available by Didtek Valve

Valve Color

Customer request

Valve Packing

Plywood Case for Check Valve

MOQ

1 Set

Valve Certificate

API6D/CE/ISO9001/ISO14001

Place of Origin

Zhejiang, China (Mainland)

Delivery Detail:

Shipped in 15-30 days after payment

Port

Shanghai Or Ningbo

Payment Terms

L/C,D/A,D/P,T/T, Western Union

Application & Function:
Didtek Cast steel swing check valve is used to prevent back flow in the line. Flow is in a straight line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position.

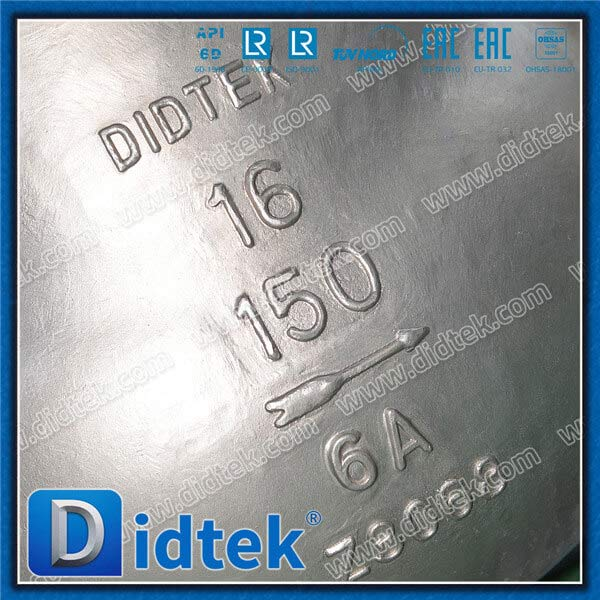

Didtek Cast steel Swing check valves may be installed in horizontal or vertical lines, but must be installed in proper relation to the media flow as indicated by the flow direction arrow marked on the body.

Accessories:
Accessories such as bypasses, locking devices, counter weight and many others are available to meet the customers’ requirements.
