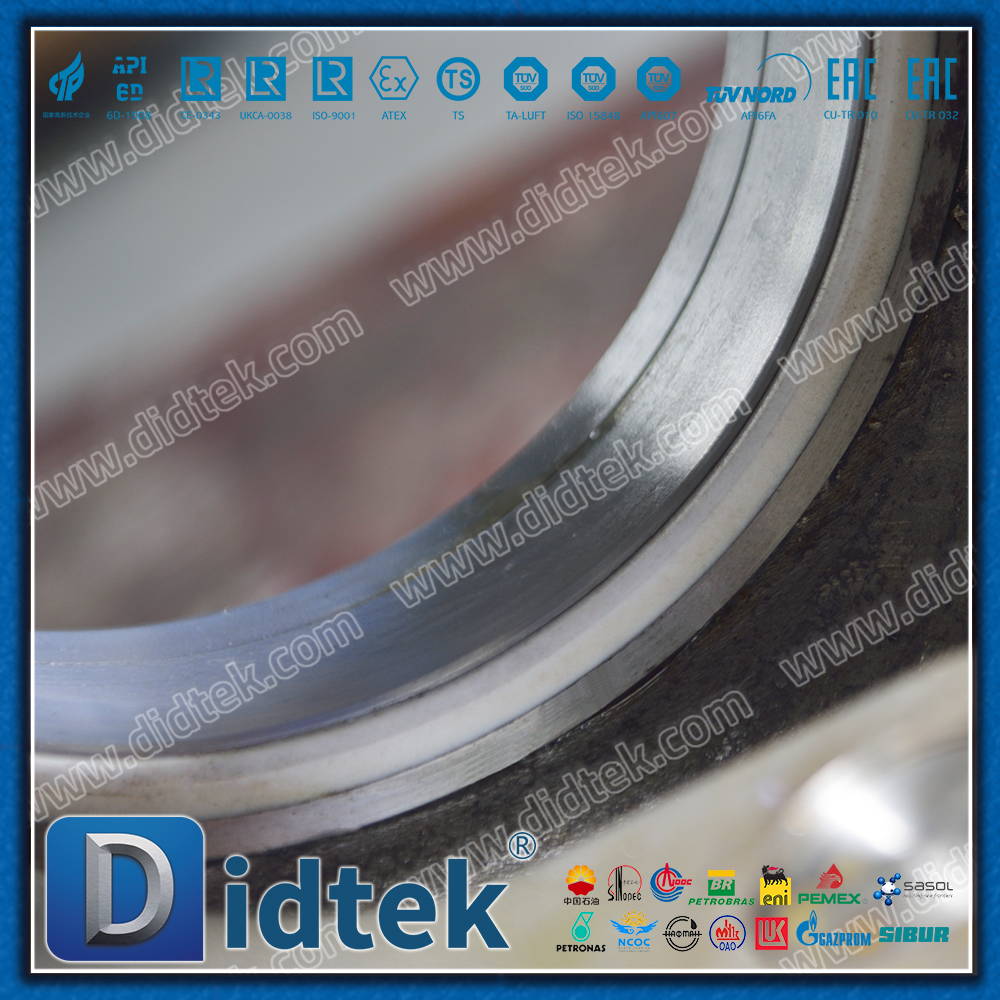

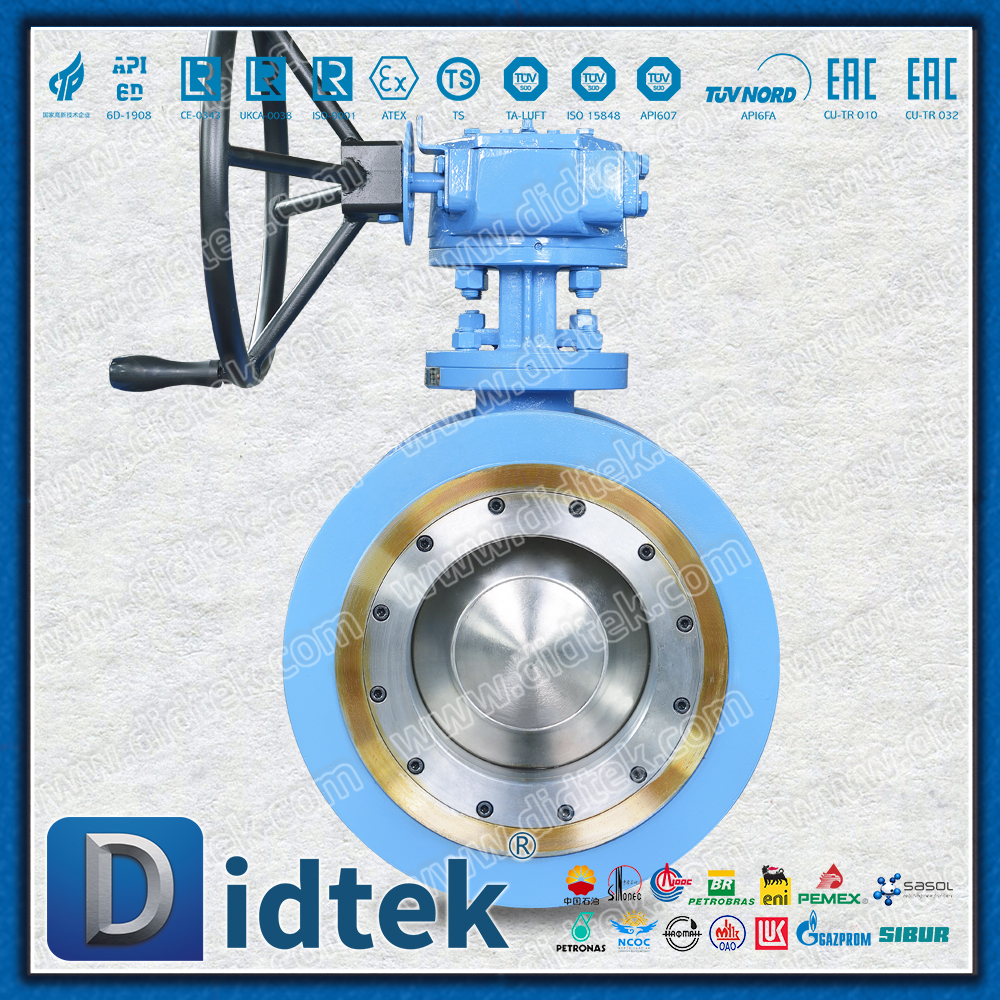

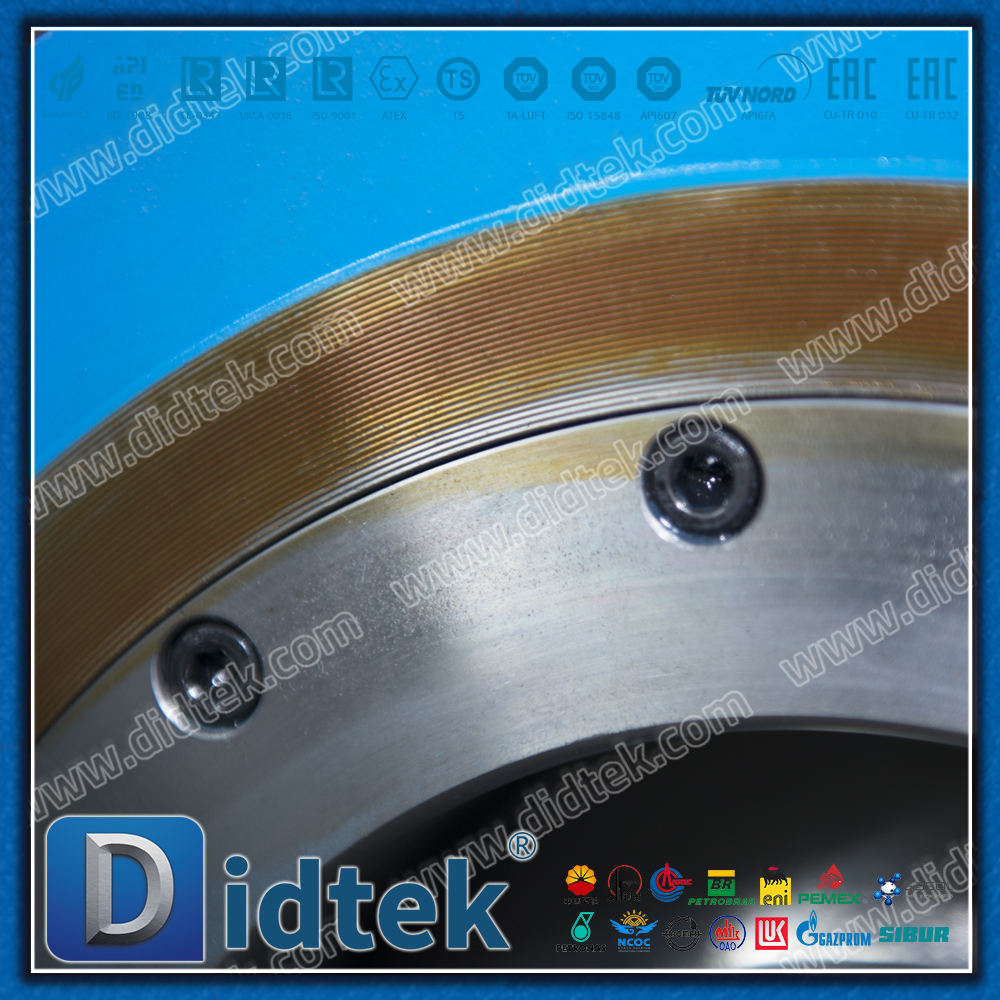

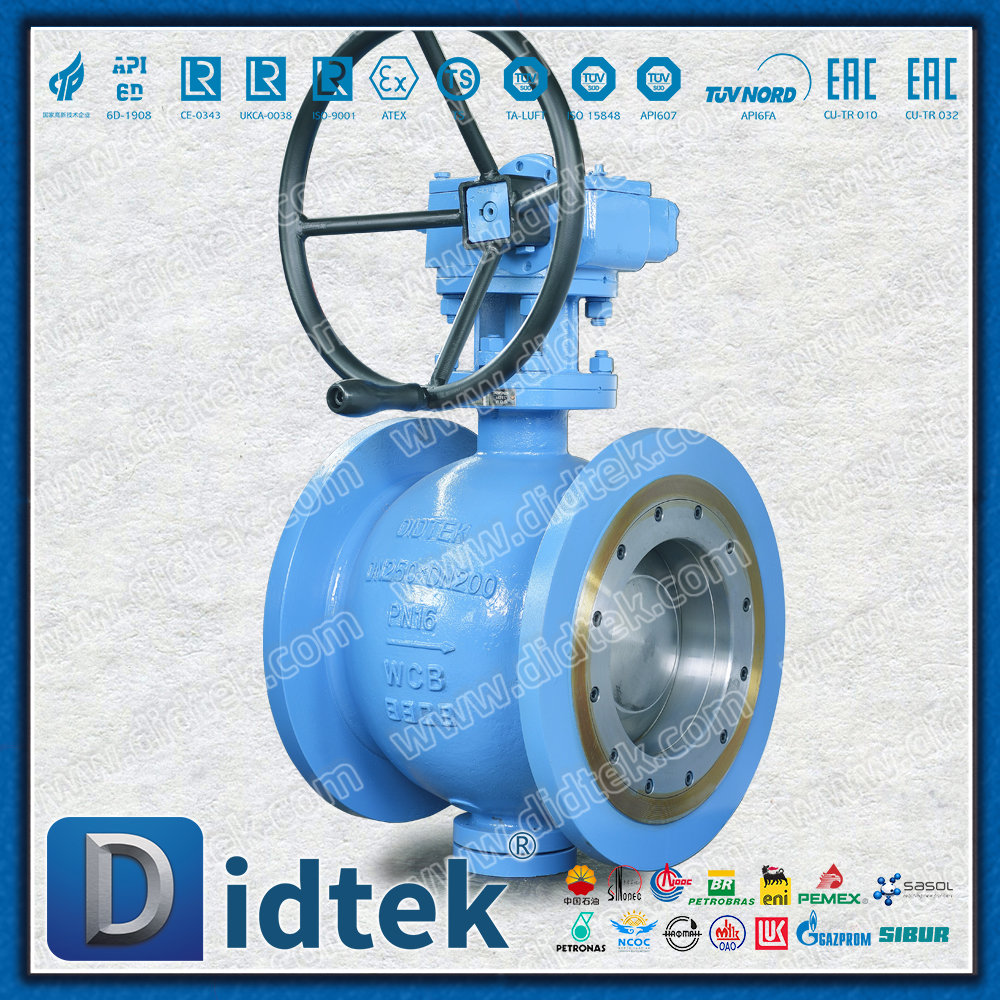

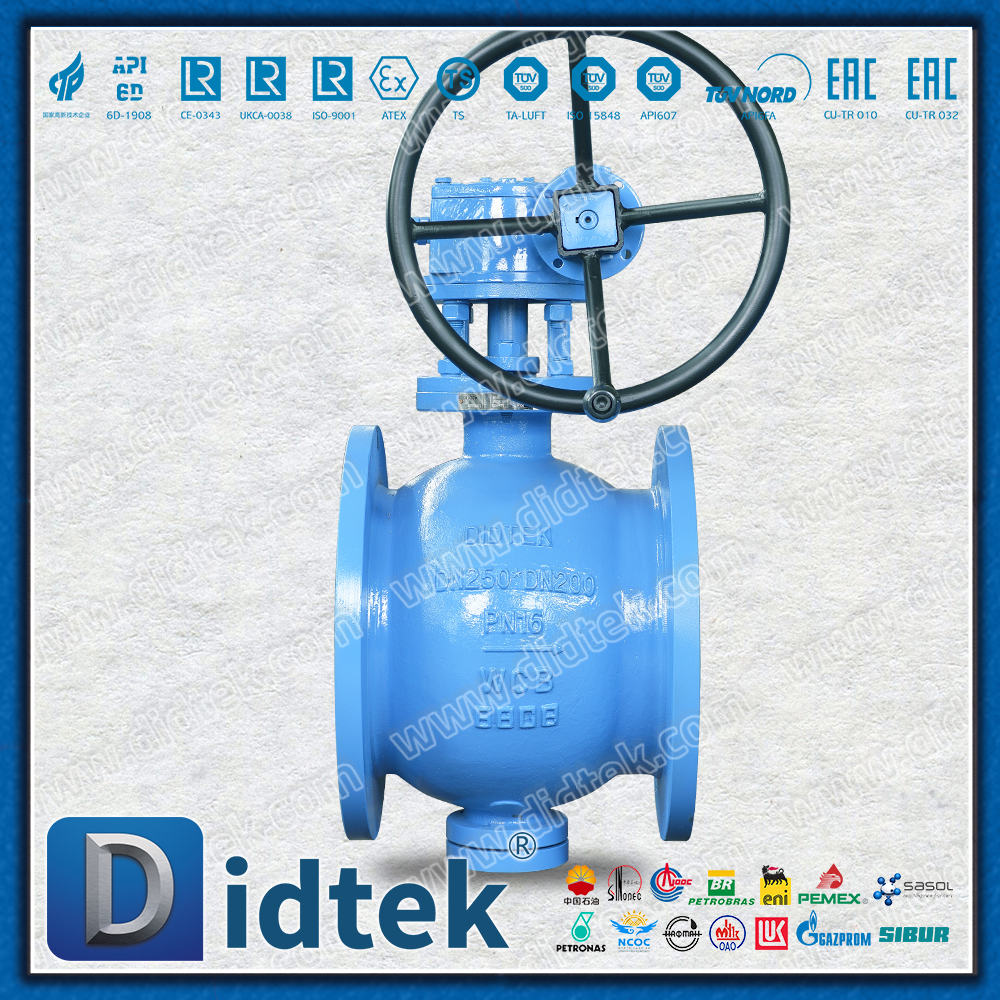

Eccentic Segment Ball Flange Connections Ball Valve

Product Overview

The eccentric sector ball flange connection ball valve is an innovative control valve that combines the eccentric sector ball structure with standard flange connection. This product, through its unique eccentric shaft design and V-shaped fan-shaped ball, perfectly resolves the wear and cavitation issues of traditional ball valves under regulating conditions. It combines outstanding shut-off performance with precise flow regulation capability, making it an ideal solution for regulating and shut-off applications in harsh working conditions.

Technical specifications

Product features

1. Core technology of eccentric sector balls

Zero-friction design

The ball is eccentrically installed and does not come into contact with the valve seat during opening and closing

Significantly reduce the operating torque and extend the service life of the valve

The wear of the sealing surface is reduced by more than 80%

Precise adjustment performance

The V-shaped fan-shaped cut provides precise flow characteristics

The maximum adjustment ratio can reach up to 300:1

It can precisely control low-flow working conditions

2. High-performance sealing system

Bidirectional metal seal

The spring-loaded metal valve seat ensures reliable sealing

Maintain ANSI B16.104 Class IV sealing grade under harsh operating conditions

Soft seal option

Reinforced PTFE valve seat, suitable for conventional working conditions

Polystyrene (PPL) valve seat, suitable for high-temperature working conditions

3. Advantages of flange connection

Standardized interface: Complies with ASME B16.5 and EN 1092-1 standards

Easy installation: Perfectly matches the existing pipeline system

Easy maintenance: It can be quickly disassembled for inspection and maintenance

4. Enhanced structural design

Anti-cavitation design: Optimized flow channel design effectively reduces the risk of cavitation

Anti-clogging structure: The V-shaped sphere has a self-cleaning function

Low-noise operation: Special multi-stage voltage reduction design

Application field

1. Petrochemical industry

Reactor feed control

Liquid level regulation of the distillation column

Catalyst injection system

2. Electric energy

Boiler feed water regulation

Steam pressure control

Condensate water recovery system

3. Chemical process

pH value adjustment system

Chemical dosage control

Polymerization reaction control

4. Special applications

Control of high-viscosity media

Adjustment of slurry containing particulate matter

High-temperature and high-pressure difference working conditions

Summary

The eccentric sector ball flange connection ball valve, through the perfect combination of innovative eccentric design, precise regulating performance and reliable sealing technology, provides industrial users with:

Outstanding regulating performance: Precise flow control, with a regulating ratio as high as 300:1

Long operating life: Zero-friction design, service life is increased by more than five times

Reliable sealing guarantee: Bidirectional metal sealing ensures zero leakage under harsh working conditions

Convenient maintenance experience: Standardized flange connection, simple and quick maintenance

This product is an ideal choice for applications requiring precise regulation and reliable cut-off under harsh working conditions, providing a perfect solution for modern industrial process control.
