Product Overview

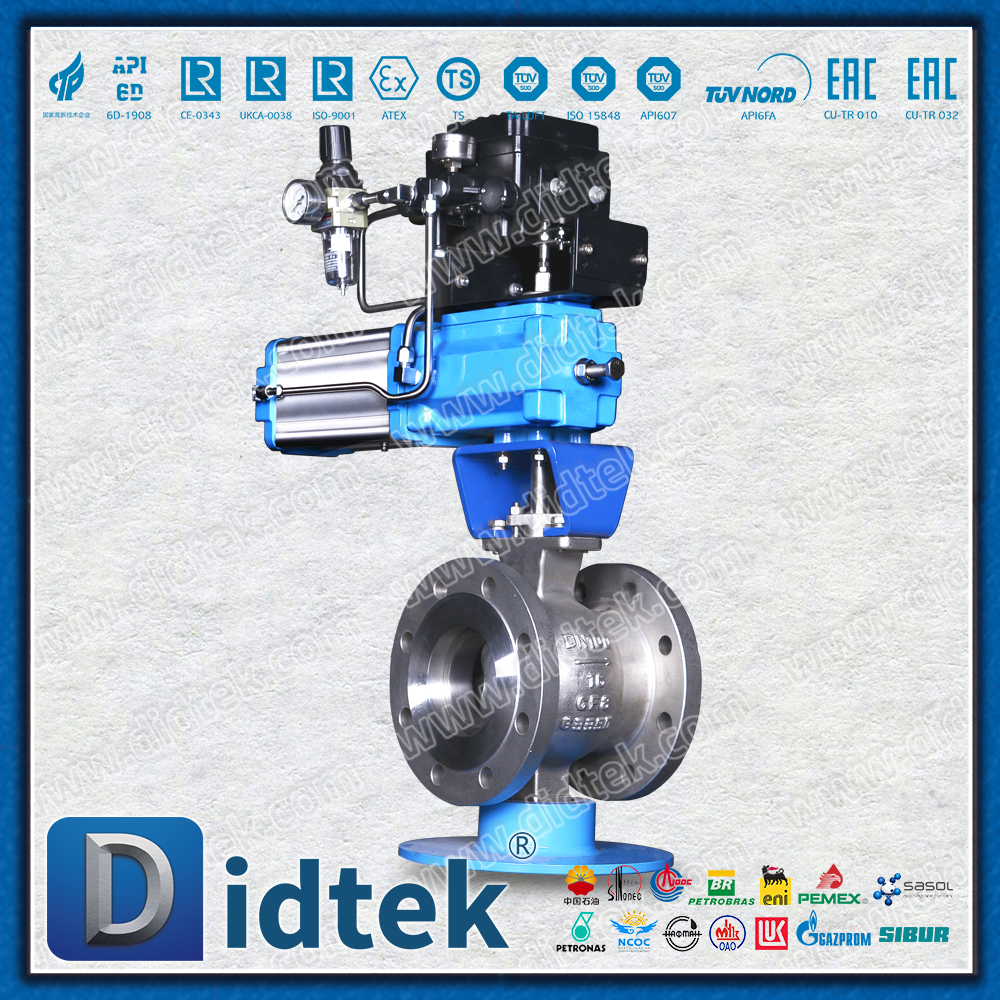

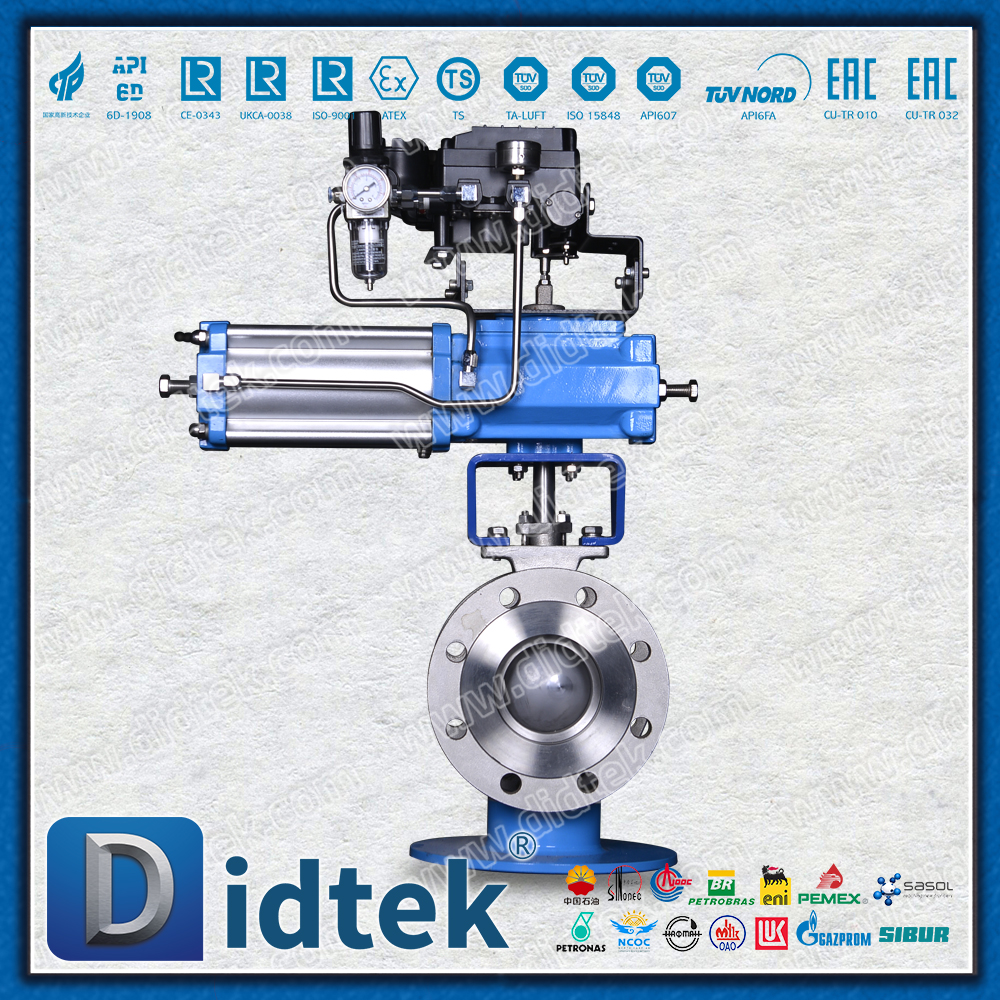

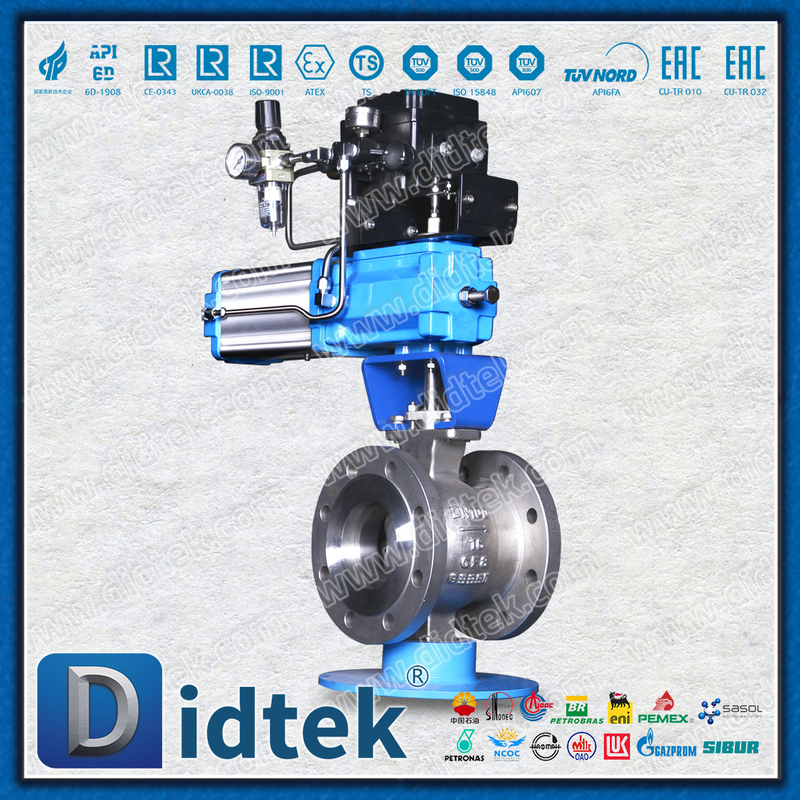

The pneumatic quick-opening and quick-closing type Ni55 valve seat Ni60 ball V-type ball valve is a high-performance special valve that integrates rapid response, wear and corrosion resistance, and precise regulation. It adopts nickel-based alloy sealing pairs (Ni55 valve seat and Ni60 ball) and V-shaped cut ball design, combined with high-performance pneumatic actuators, and is specifically designed for rapid shut-off and precise regulation control under harsh working conditions.
Technical specifications
| Parameter category | technical specification |
| Valve body material | WCB/CF8 / CF8M/other alloy steel |
| Spherical material | Ni60 nickel-based alloy (supersonic spraying) |
| Valve seat material | Ni55 nickel-based alloy |
| Pressure rating | Class 150-600 (PN16 - PN100) |
| Temperature range | -29℃ to +550℃ |
| Connection methods | flange/butt weld/thread |
| Air source pressure | 0.4-0.7 MPa |
| Action time | 0.5 to 2 seconds (depending on the caliber) |
| Flow characteristics | approximately equal percentage |
| Protection grade | IP67 (standard)/IP68 (optional) |
Product features
1. Nickel-based alloy sealing system
Super-hard and wear-resistant combination
Ni60 sphere: Hardness HRC 58-62, resistant to particle wear
Ni55 valve seat: Hardness HRC 55-58, with excellent impact resistance
Excellent corrosion resistance: It has better resistance to acid and alkali corrosion than stainless steel
High-temperature stability: Maintains stable mechanical properties at a high temperature of 550℃

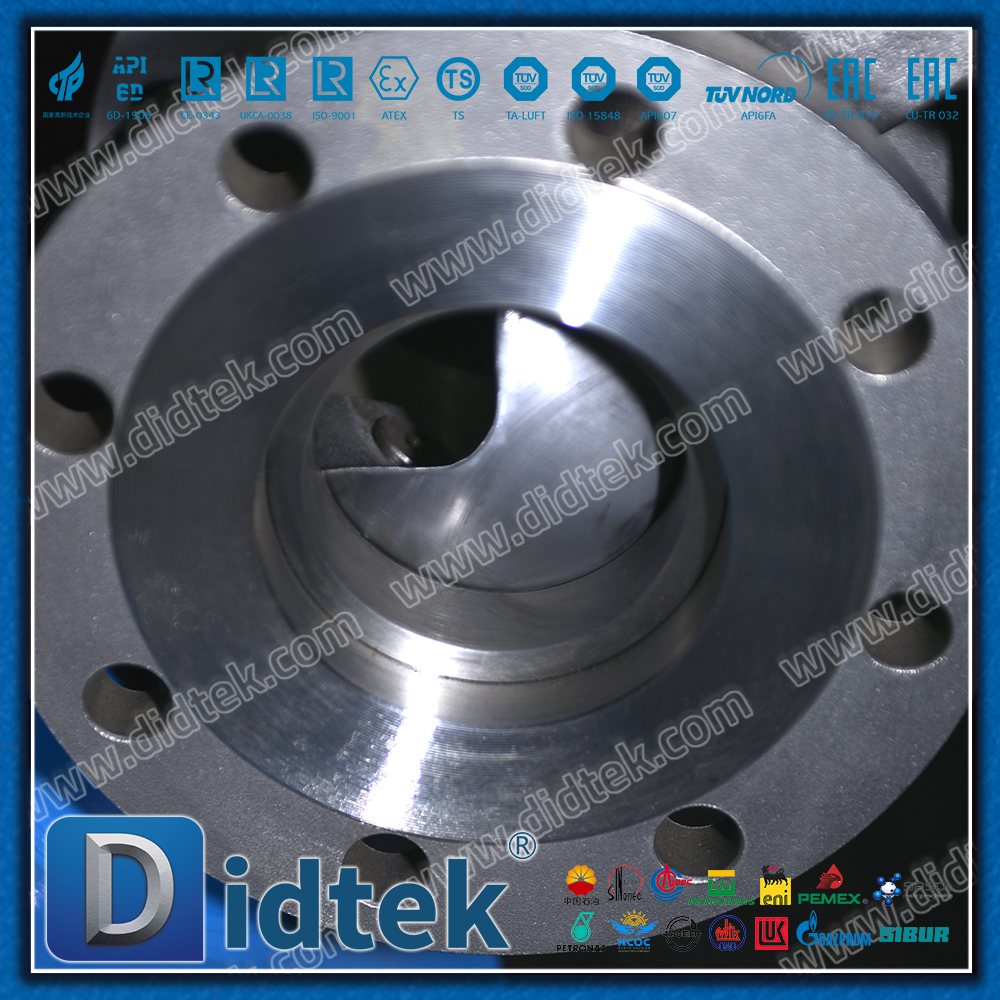

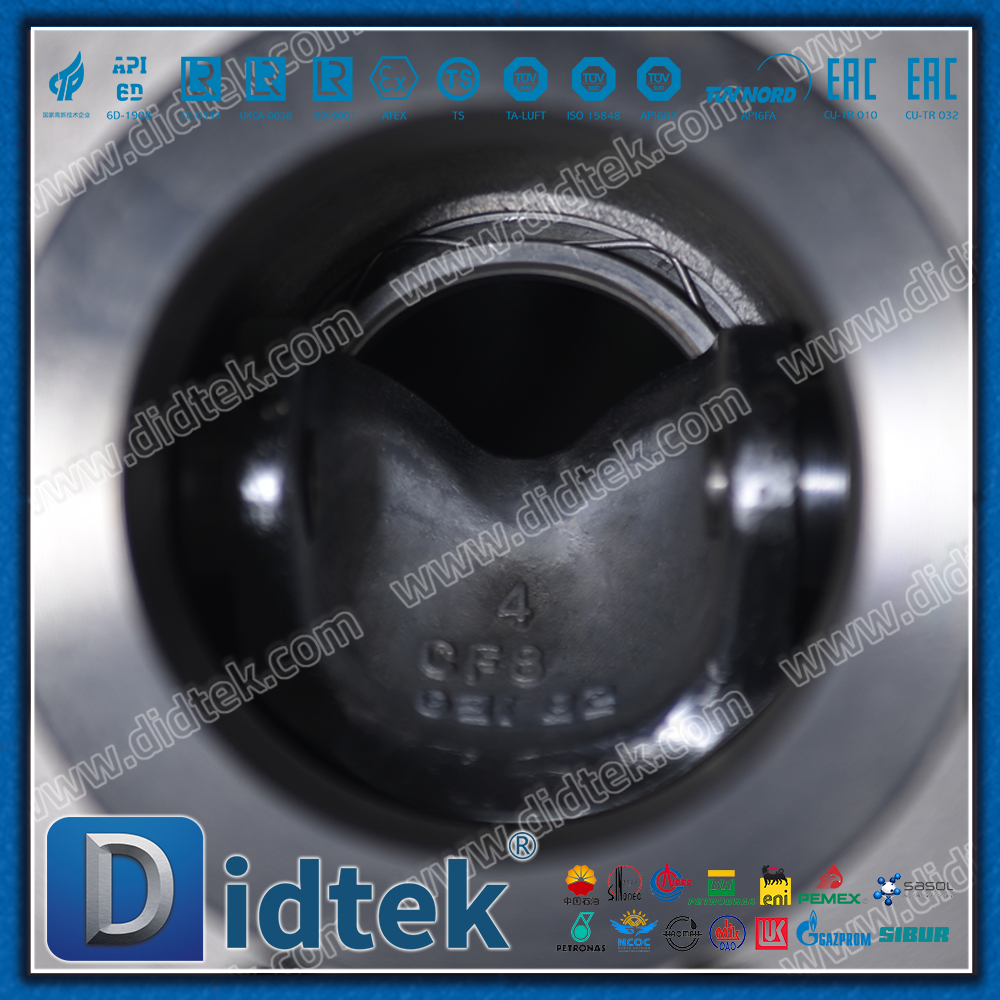

2. V-shaped sphere adjustment characteristics
Precise flow control: The V-shaped cut and the valve seat form a precise flow control window
High regulation ratio: up to 100:1, meeting the requirements of wide-range flow regulation
Shearing function: The V-shaped edge can effectively shear fibrous media

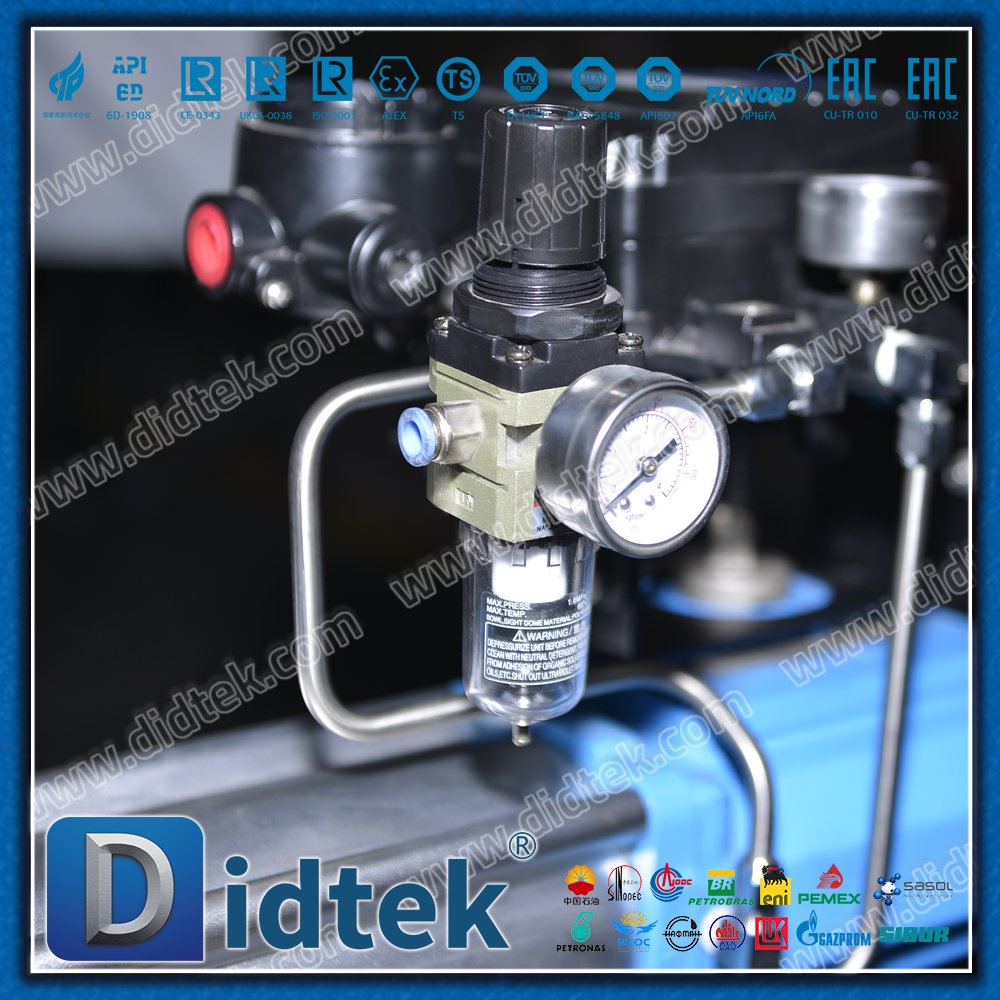

3. Rapid pneumatic actuator system
High-speed response: The specially designed linear stroke cylinder enables rapid action within 0.5 to 2 seconds
Double-acting/single-acting: Spring return fault safety type is available as an option
Precise positioning: An optional positioner is available to achieve precise opening control
4. Specialized structural design
Anti-jamming design: The gap between the ball and the valve seat is optimized to prevent high-temperature jamming
Fire safety: Complies with API 607 standard. A metal seal is formed after the soft seal fails
Anti-blowout valve stem: T-shaped structure valve stem to ensure safety and reliability under pressure
Core parameters
Pressure rating: Class 150-600 (PN16-100)
Temperature range: -29℃ to +550℃
Air source pressure: 0.4-0.7 MPa
Protection grade: IP67/IP68
Connection methods: Flange/butt welding/thread
Application field
Petrochemical industry: Catalyst transportation, polymer particle control
Electric energy: Pulverized coal conveying, fly ash treatment
Metallurgy and mining: Pulp control, dust transportation
Environmental protection engineering: Sludge treatment, waste residue control
Summary
The pneumatic quick-opening and quick-closing type Ni55 valve seat Ni60 ball V-type ball valve, through the perfect combination of nickel-based alloy sealing technology, V-type regulating structure and high-speed pneumatic execution, provides industrial users with:
Super wear-resistant and corrosion-resistant: The service life of nickel-based alloy sealing pairs is increased by 3 to 5 times
Fast and precise control: millisecond-level response, precise flow regulation
Wide applicability: Suitable for all kinds of harsh working conditions
Reliable and safe: Multiple safety designs ensure long-term stable operation
This product is an ideal choice for granular media, slurry transportation and industrial processes that require rapid and precise control.
| Brand | DIDTEK |
| Structure | Ball |
| Valve Material | Didtek provide cast steel, stainless steel, special alloy, CI, DI etc |
| Valve Type | Didtek Produce Ball Valve |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | Tunnion Mounted Ball Valve |
| Valve Delivery | 15 - 30 days |
| Valve Sample | Sample Available by Didtek Valve |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Ball Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
