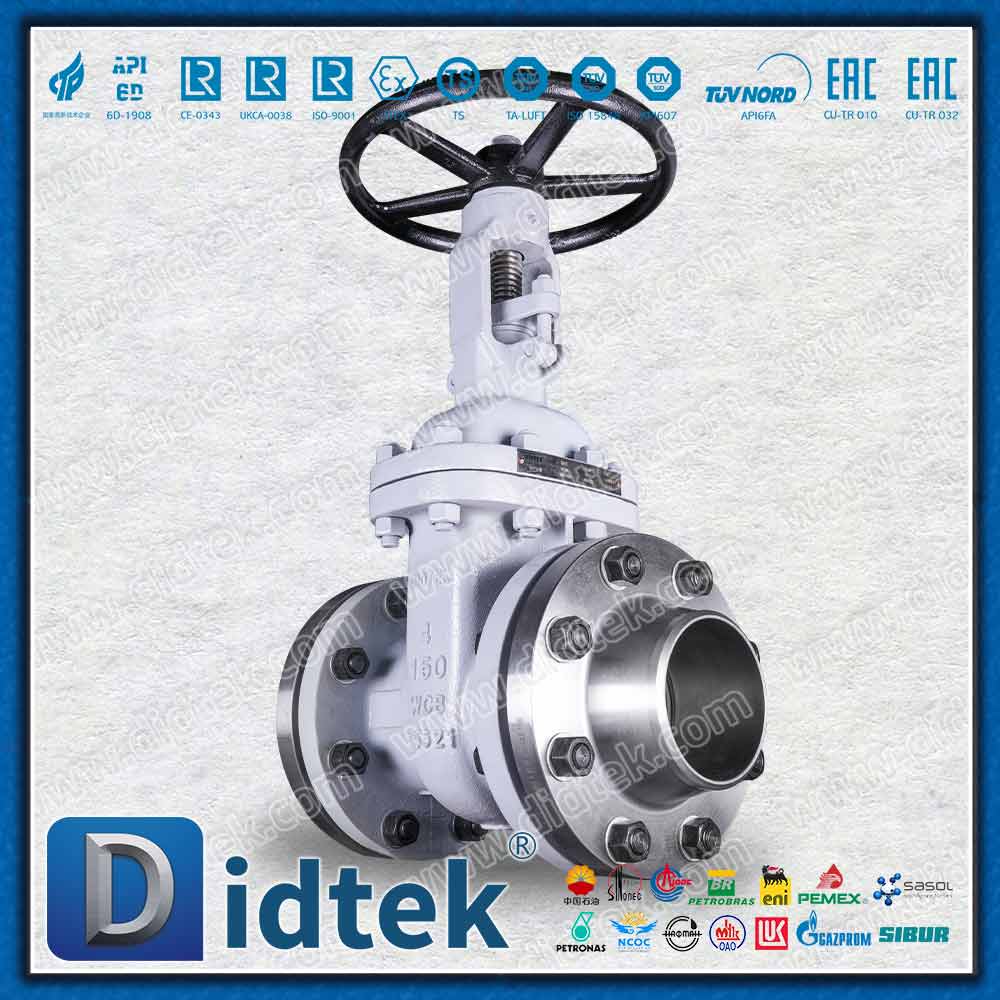

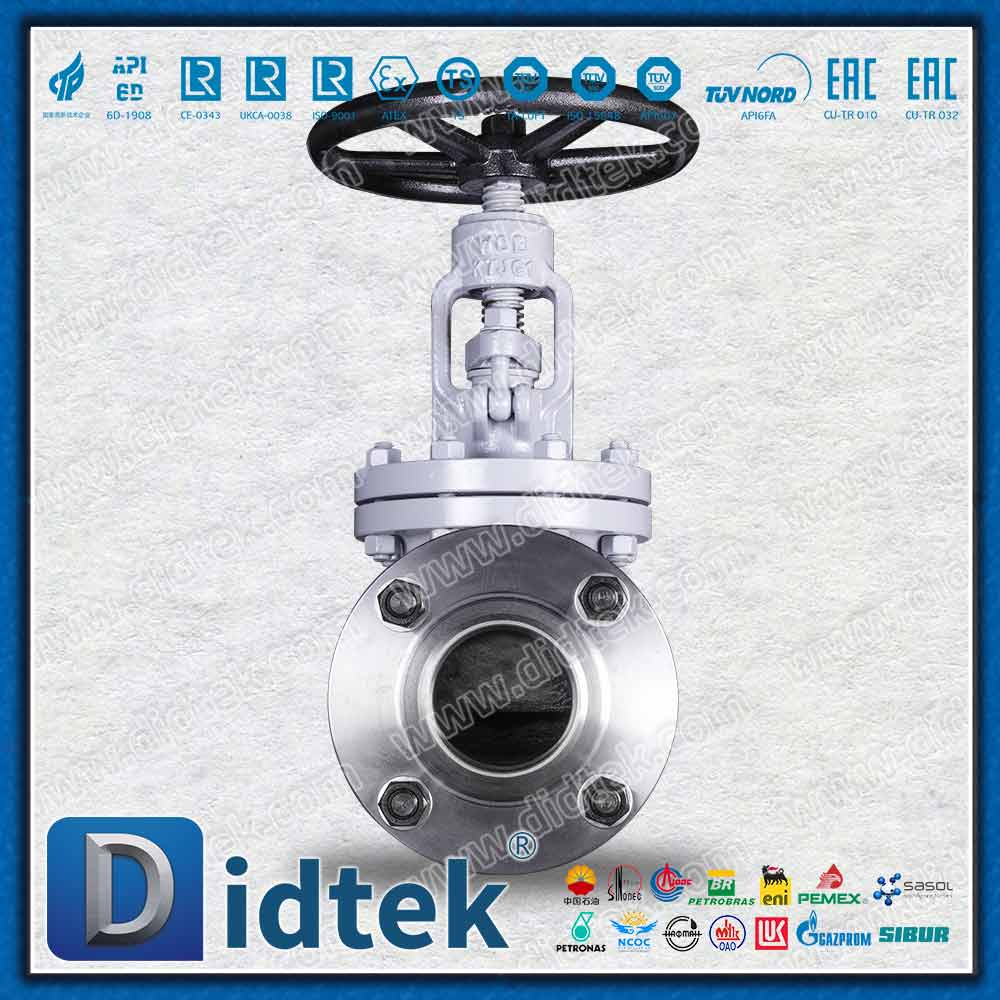

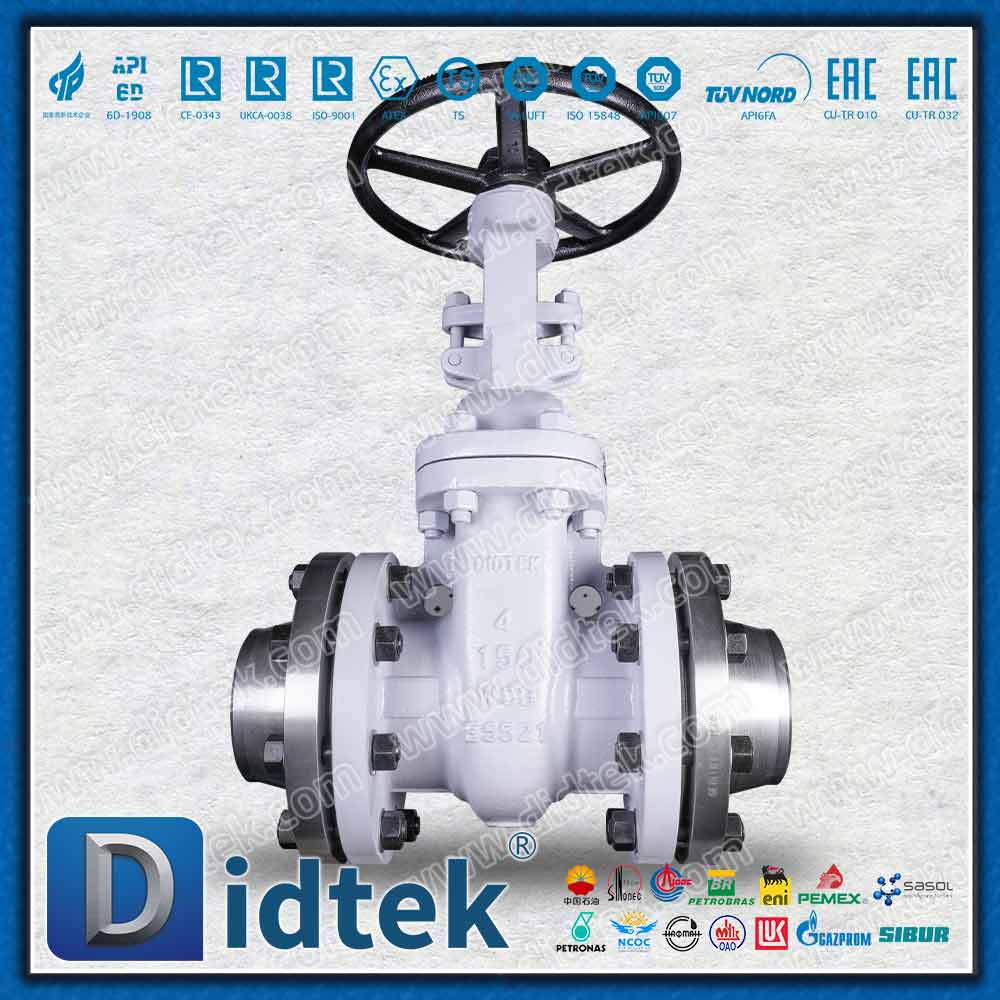

API600 Gate Valve With Counter Flange Match Bolts And Gasket

The API 600 Gate Valve is the industry standard for high-pressure, high-temperature isolation in oil, gas, and chemical piping systems.

Model:
Z41-150LBC
Brand:
DIDTEK
Code:
CSV-CCSGV-080

Availability:

Quantity:



Inquire

API 600 Gate Valve Kit Companion Flange for Gate Valve Stud Bolt and Gasket Set Cast Steel Gate Valve with Flanges API 600 Flanged Valve Assembly

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

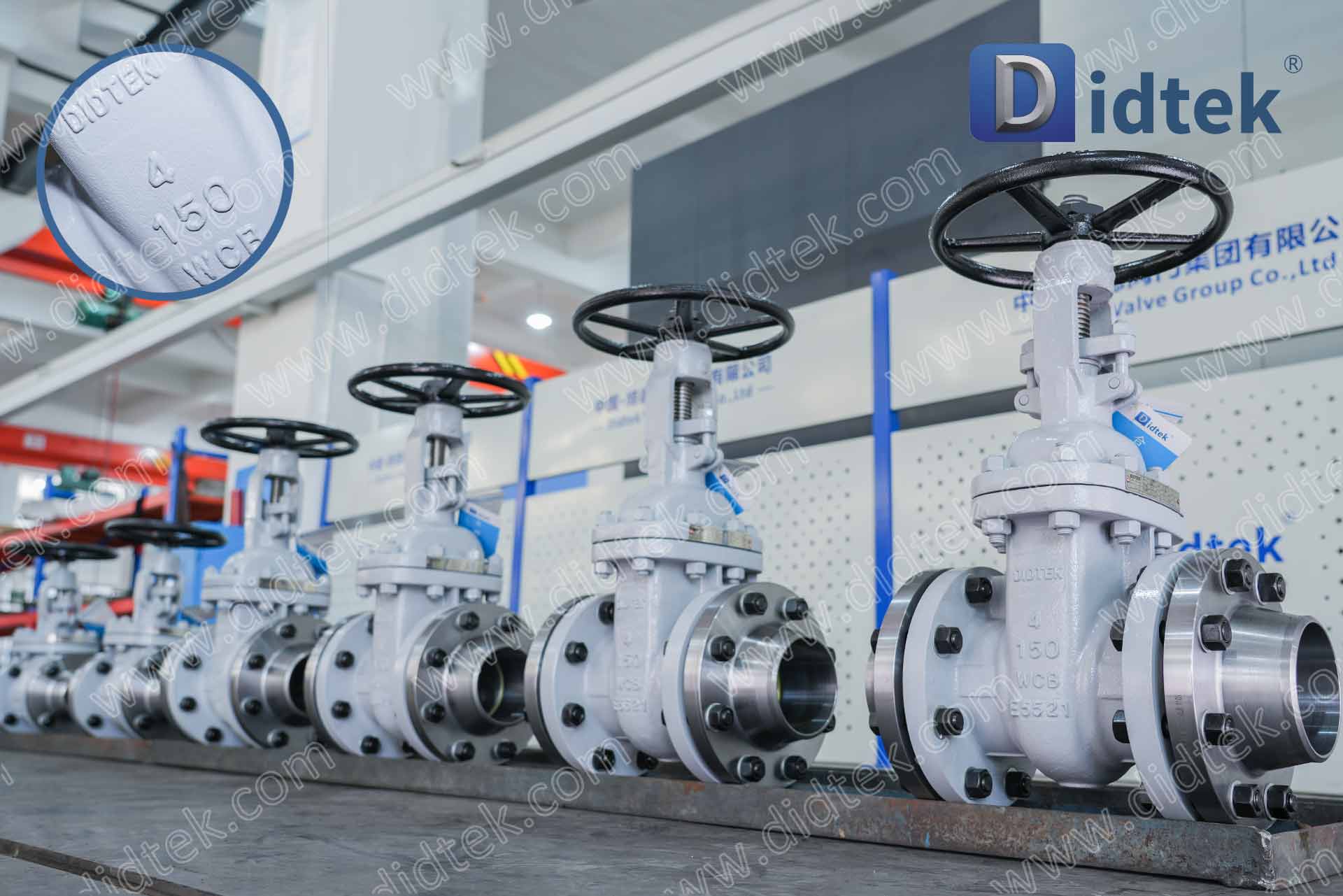

The API 600 Gate Valve is the industry standard for high-pressure, high-temperature isolation in oil, gas, and chemical piping systems. Constructed with a Bolted Bonnet (BB) and Outside Screw & Yoke (OS&Y) rising stem design, it provides exceptional structural rigidity and reliable shut-off performance. To ensure a "Plug-and-Play" installation, we provide a complete piping assembly kit including matching Companion Flanges (Counter Flanges), high-tensile Stud Bolts (ASTM A193 B7/B8) with Heavy Hex Nuts (A194 2H/8), and professional-grade Spiral Wound Gaskets (SWG). This holistic supply approach ensures dimensional compatibility, eliminates procurement mismatches, and guarantees leak-free integrity during field commissioning. A-80-DIDTEKCSGV- API600 Gate Valve With Counter Flange Match Bolts And Gasket

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	150LB

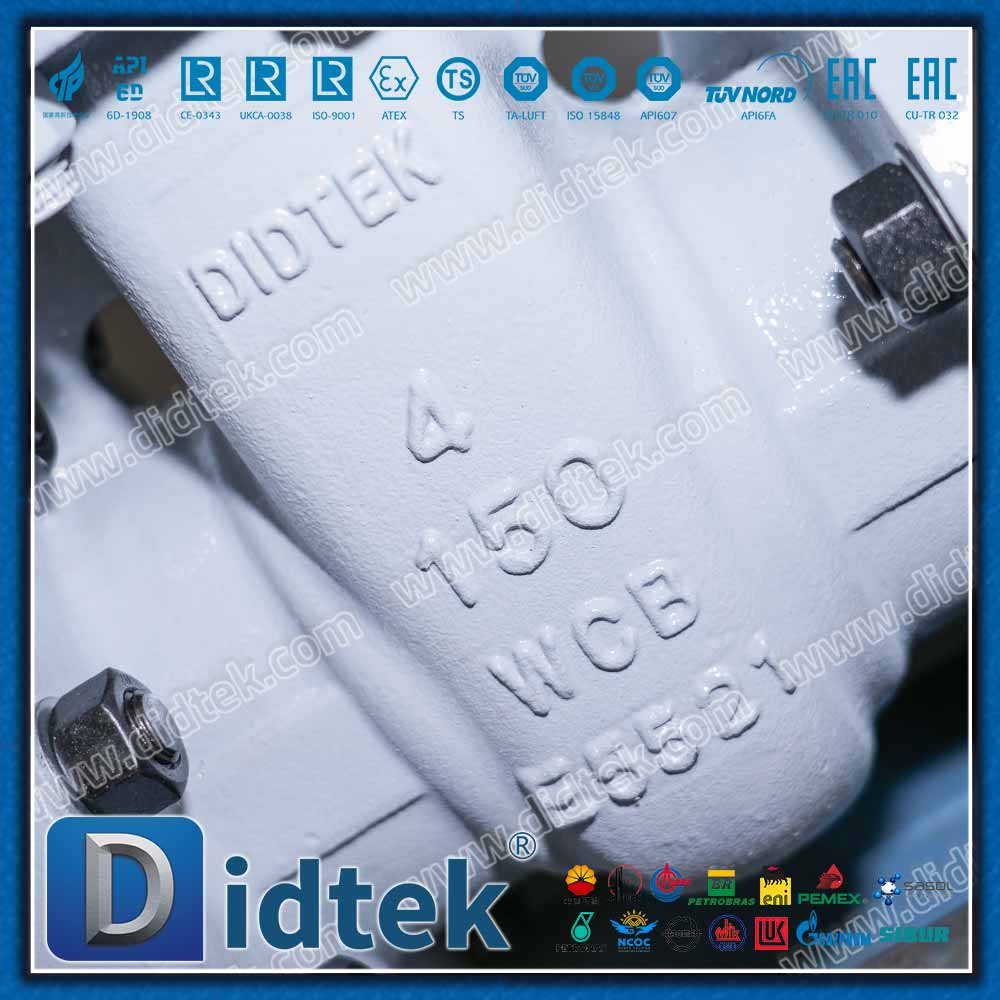

Material	WCB
Wedge	WCB+13Cr
Temperature Range	-29°C~425°C
Design According	API 600
End to End Dimension	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API607
Inspection and Test	API 598
Operate	Handwheel
Body Type	Gate
Type of Valve	Gate Valve
Suitable Medium	Water, Steam, oil, acid, air, nitrogen, natural gas etc.

Design Description

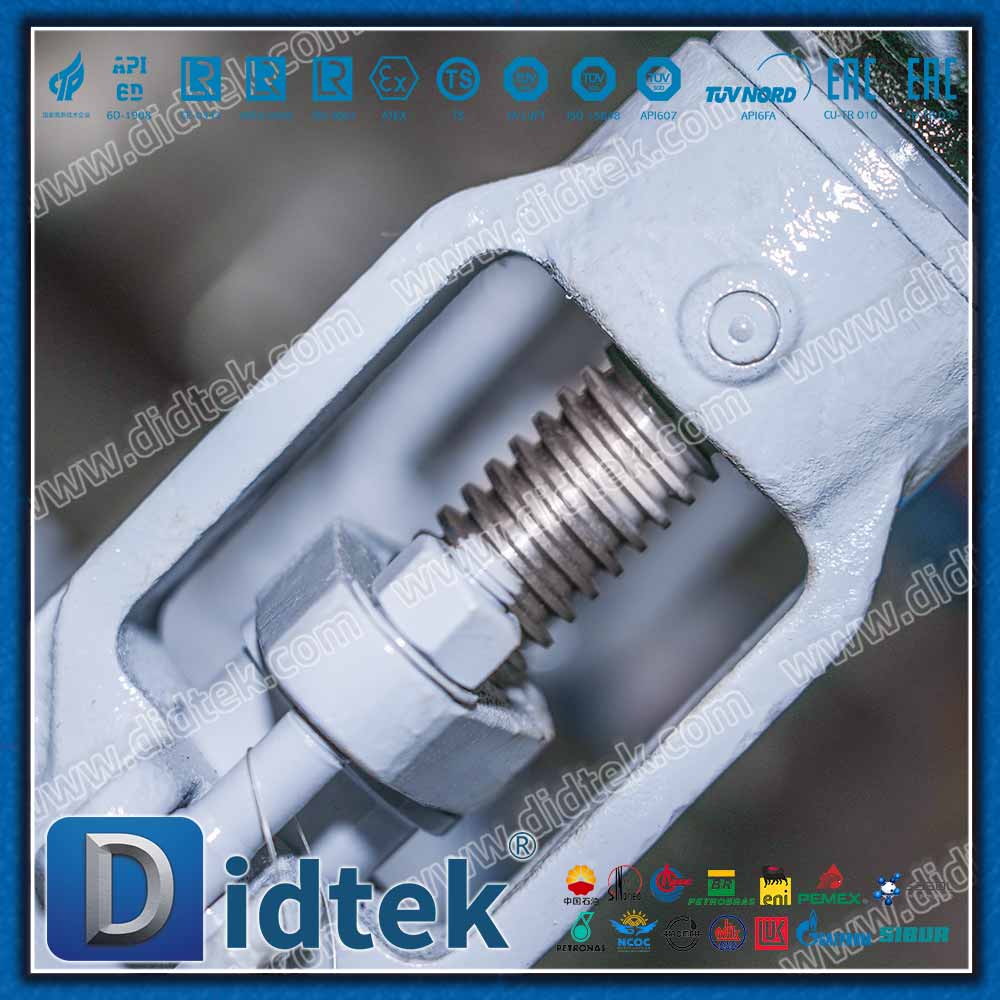

API 600 Gate Valve: Designed to API 600 and ASME B16.34 standards, featuring an OS&Y (Outside Screw & Yoke) rising stem, bolted bonnet, and flexible wedge. It delivers optimal flow isolation with minimal pressure drop and exceptional thermal compensation.

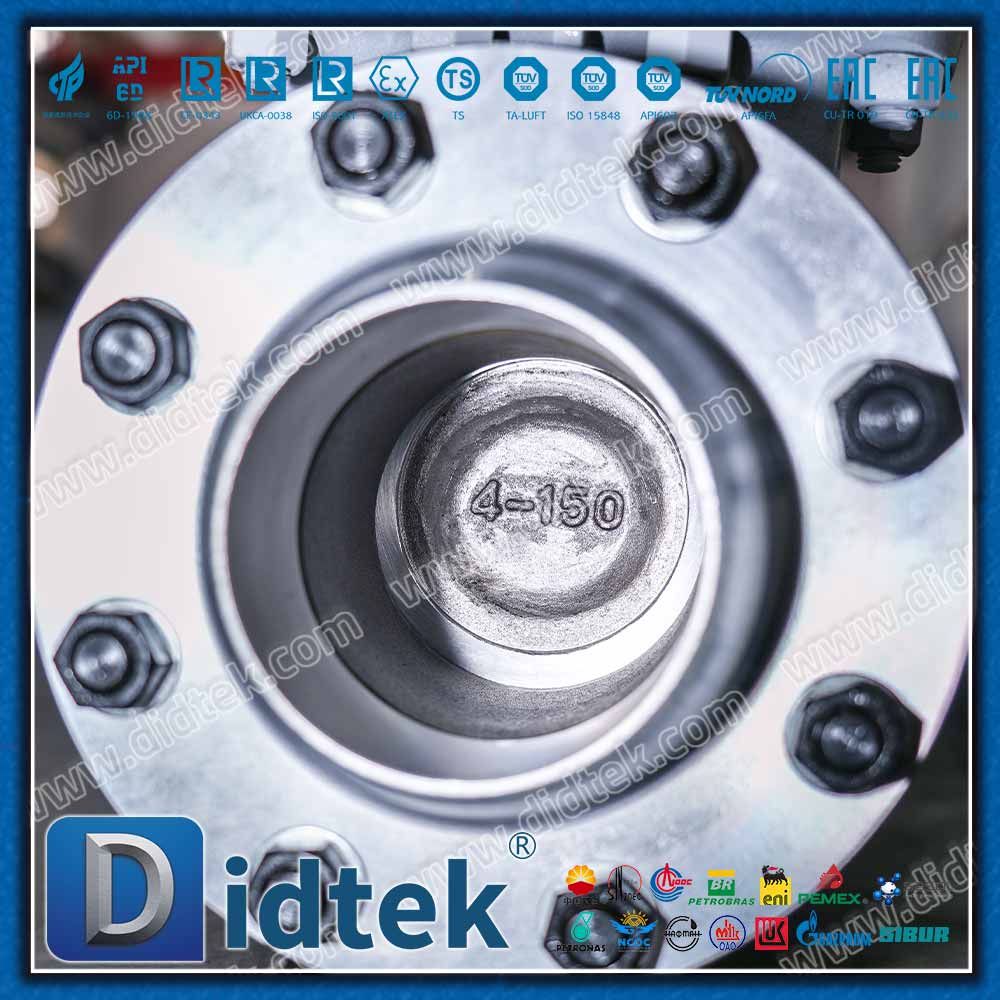

Companion Flanges (Counter Flanges): Precision-machined to ASME B16.5 / B16.47 specifications, made from matching materials (e.g., ASTM A105N for carbon steel or A182 F316 for stainless steel) to ensure seamless welding and piping alignment.
Stud Bolts & Heavy Hex Nuts: Manufactured to ASTM A193 Grade B7 (with A194 Gr. 2H nuts) for high-strength carbon steel service, or ASTM A193 B8/B8M for corrosive environments, guaranteeing secure, high-tension flange joints.
Spiral Wound Gaskets (SWG): Engineered with a 316L stainless steel winding strip and flexible graphite or PTFE filler, offering superior resilience and seal integrity under high-pressure and high-temperature cycling.

Parameters

Brand	DIDTEK
Structure	Gate Valve
Material	Carbon Steel
Type	Gate
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

API600 Gate Valve With Counter Flange Match Bolts And Gasket are widely utilized in demanding environments due to their superior material properties:

Oil & Gas Refining: Mainline isolation for crude oil, refined products, and high-temperature hydrocarbon processing units.
Power Generation: Steam and boiler feed water systems in thermal and power plants requiring robust high-pressure isolation.
Petrochemical & Chemical Plants: Handling corrosive chemicals, acids, and industrial gases where complete flange-to-valve material integrity is critical.
Pipeline Infrastructure: Long-distance transmission pipelines requiring pre-matched, ready-to-install valve and flange assemblies.
