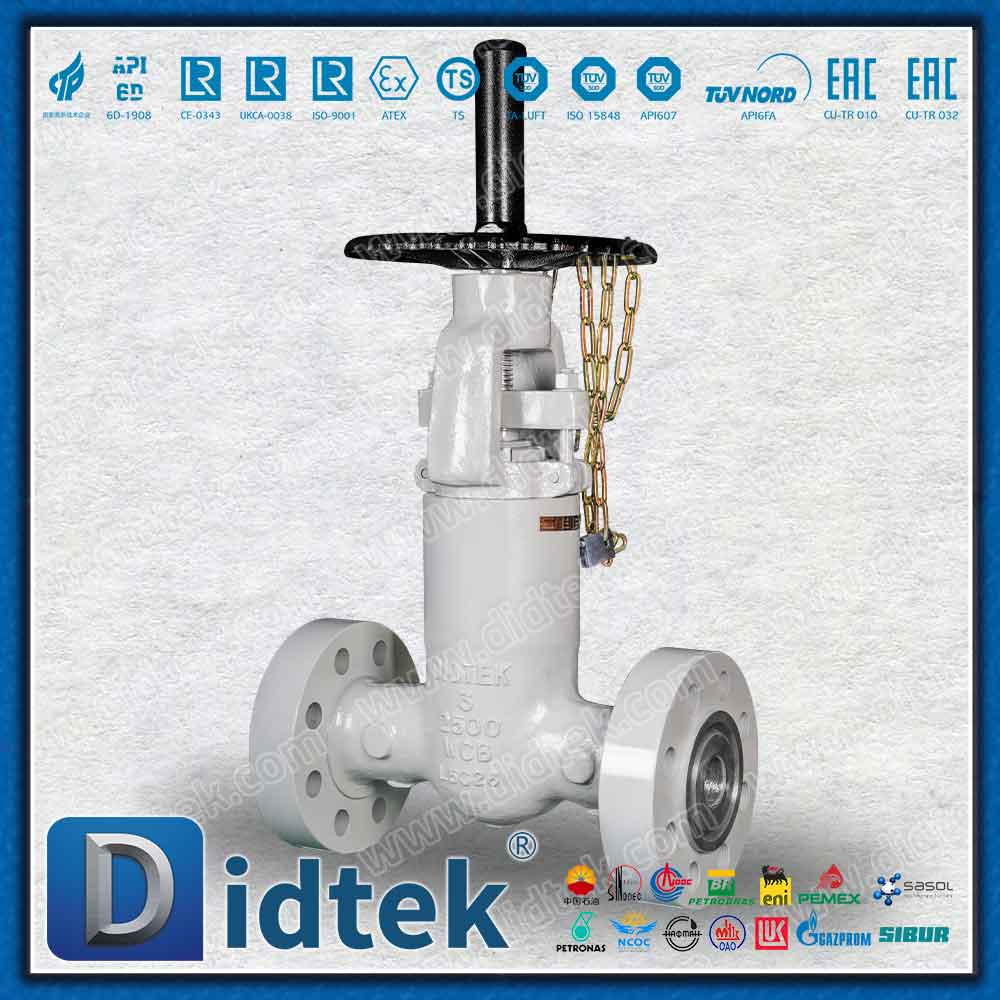

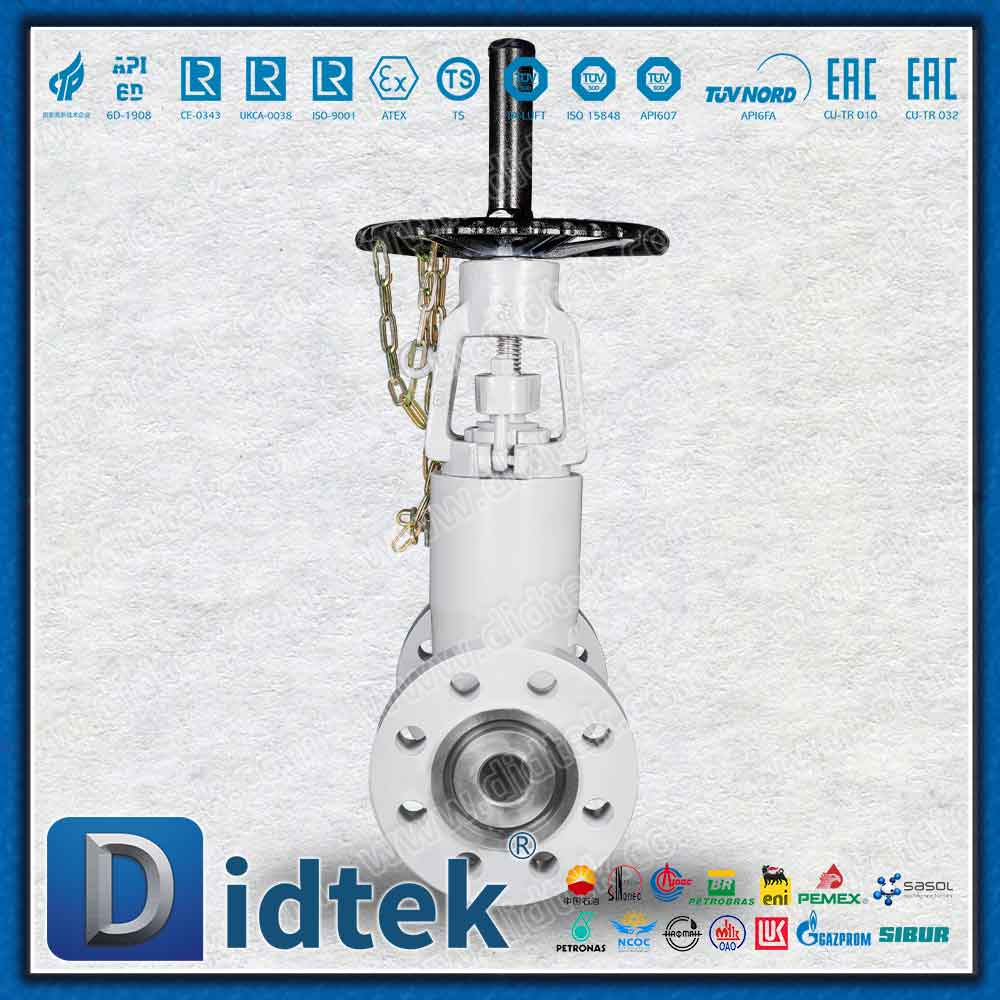

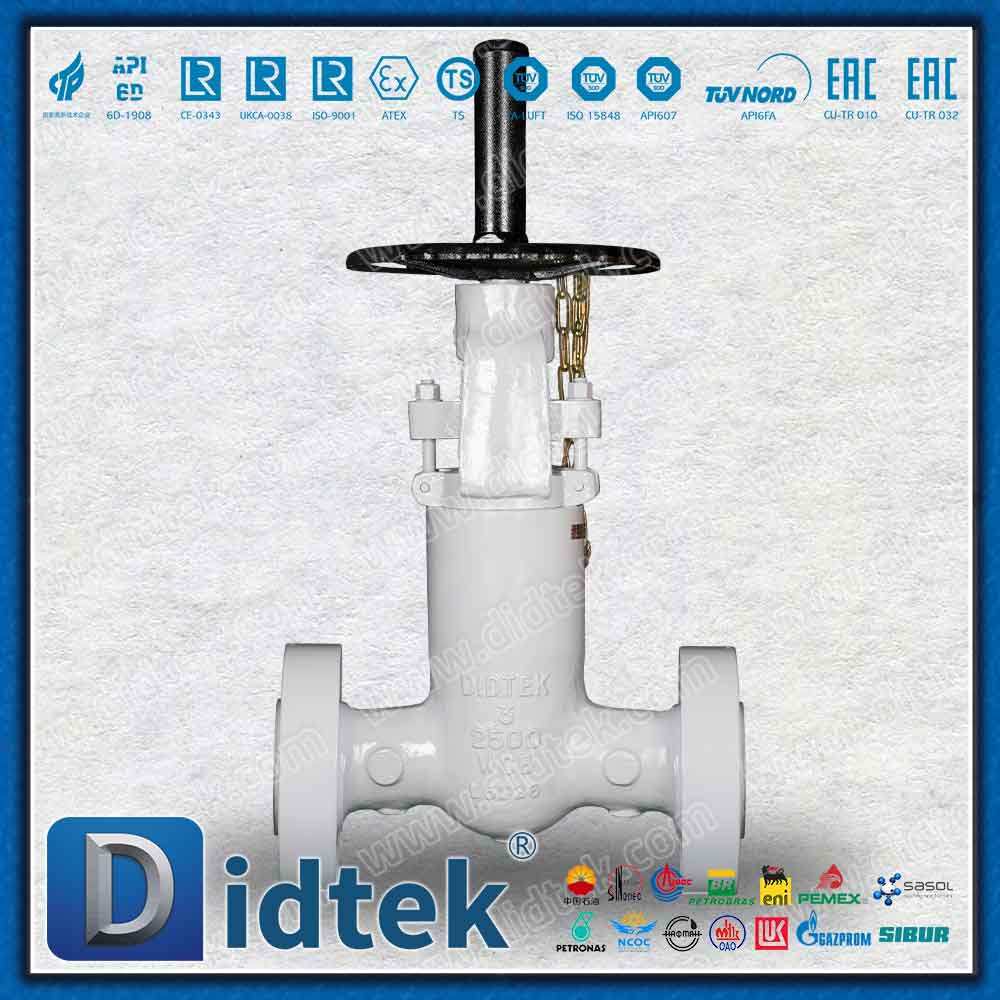

Pressure Seal 2500LB RTJ Gate Valve

The Pressure Seal 2500LB RTJ Gate Valve is a high-performance flow control solution engineered for the most demanding ultra-high pressure and high-temperature services.

Model:
Z440-2500LBC
Brand:
DIDTEK
Code:
CSV-CCSGV-077

Availability:

Quantity:



Inquire

Pressure seal gate valve 2500LB RTJ Valve High Pressure Isolation Valve API 600 Pressure Seal Stellite Seated Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

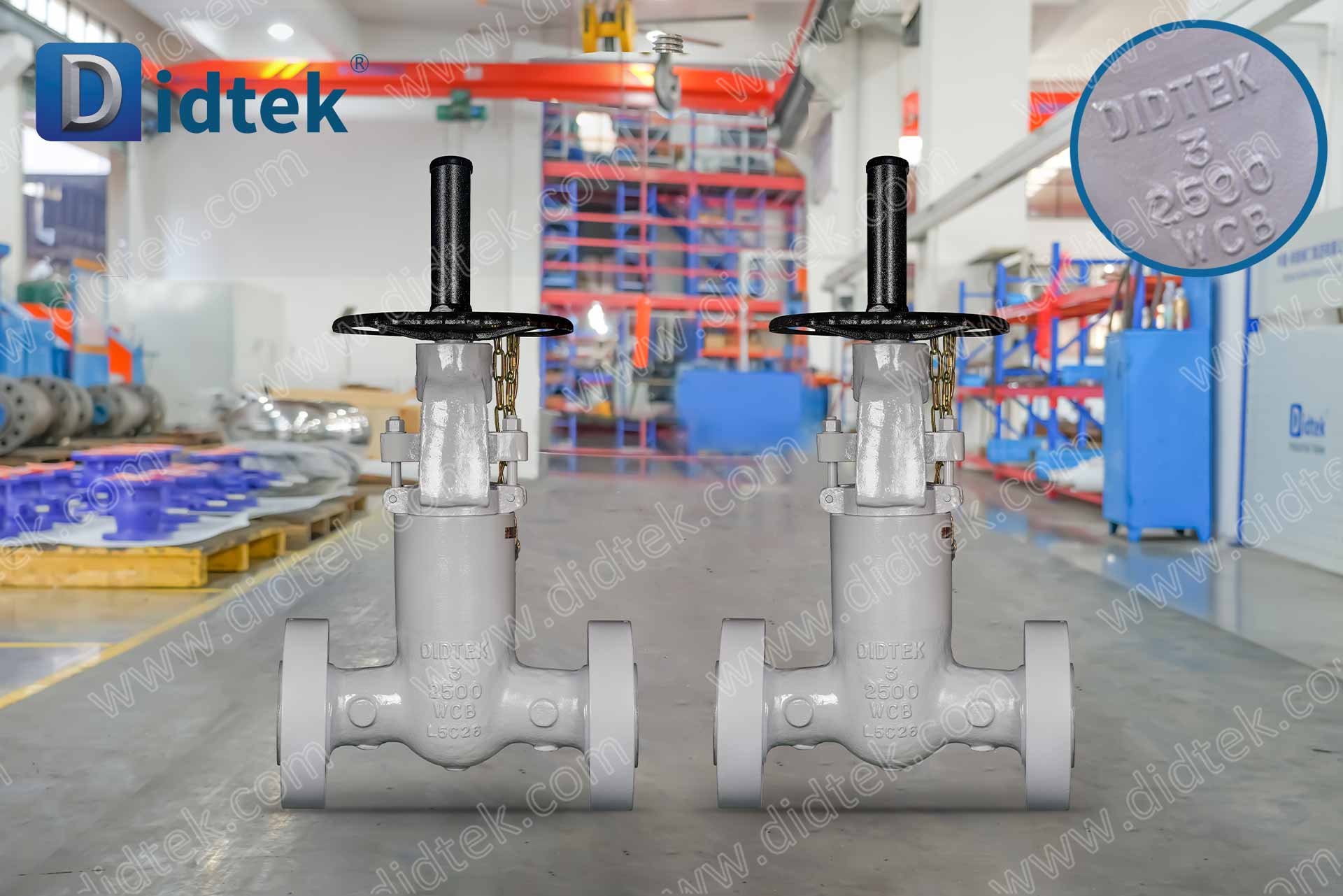

The Pressure Seal 2500LB RTJ Gate Valve is a high-performance flow control solution engineered for the most demanding ultra-high pressure and high-temperature services. Utilizing a Pressure Seal Bonnet design, this valve converts internal system pressure into a sealing force, ensuring leak-proof integrity where bolted bonnets often fail. Rated for ASME Class 2500, it features RTJ (Ring Type Joint) ends for a robust metal-to-metal connection. This valve is the primary choice for main steam isolation, boiler feed water, and high-pressure hydrocarbon processing. A-77-DIDTEKCSGV Cast Steel Gate Valve-Didtek Pressure Seal 2500LB RTJ Gate Valve

Product Parameters

Parameter Name	Parameter
Size Range	3''
Pressure Range	2500LB
Material	WCB
Wedge	WC9+STL
Temperature Range	-26°C~150°C
Design According	ASME B16.34
End to End Dimension	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RTJ
Fire Safety	API607
Inspection and Test	API 598
Operate	Handwheel
Body Type	Gate
Type of Valve	Gate Valve
Suitable Medium	Water, Steam, oil, acid, air, nitrogen, natural gas etc.

Design Description

Self-Reinforcing Pressure Seal: The sealing force on the bonnet gasket increases proportionally with internal line pressure, providing a superior seal during high-pressure surges.

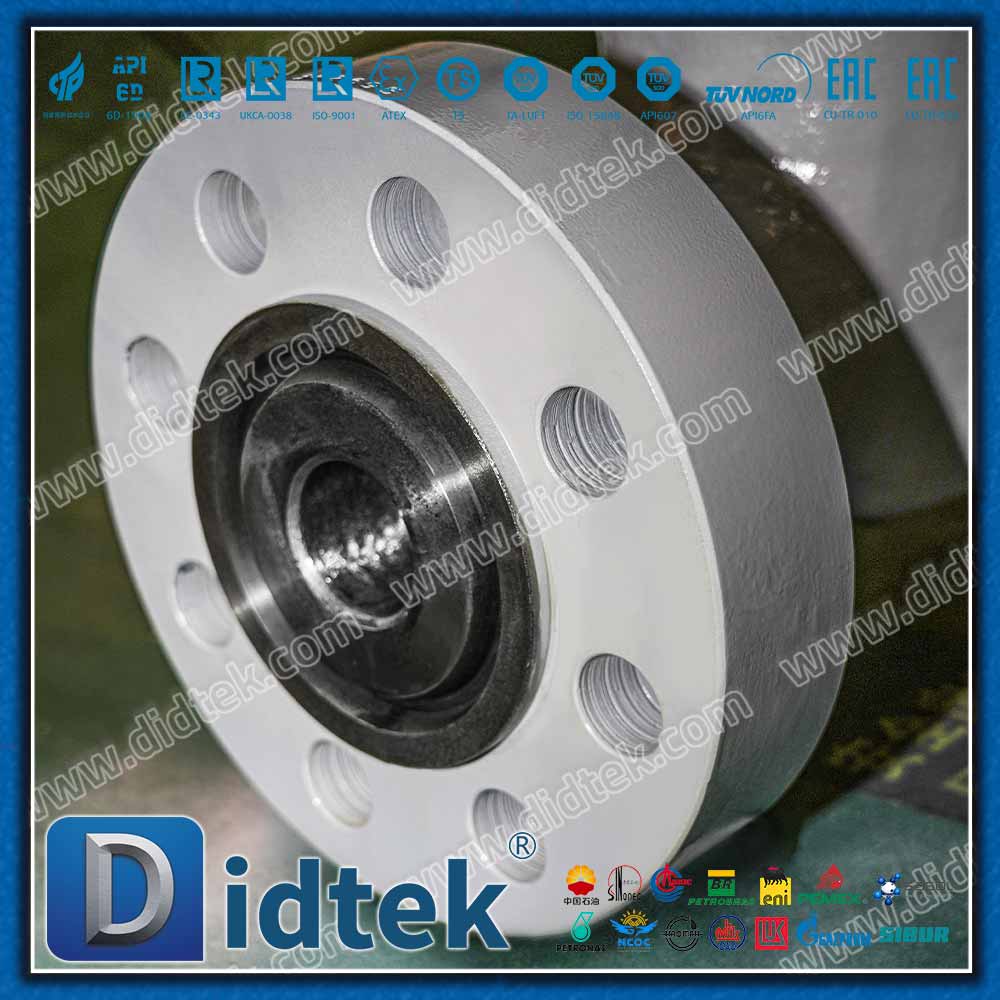

RTJ Leak-Proof Connection: Equipped with Ring Type Joint (RTJ) flanges to provide a high-integrity metal-to-metal external seal, essential for high-vibration and high-temperature cycling.
Stellite Hard-Faced Seats: The wedge and seat rings are overlaid with Stellite #6 or similar hard alloys to resist erosion, wire-drawing, and galling at high velocities.
Flexible Wedge Design: Compensates for seat distortion and thermal binding due to rapid temperature changes, ensuring the valve remains operable in extreme cycles.
Fully Guided Travel: Precision-machined wedge guides ensure accurate alignment and minimize friction between the seating surfaces throughout the travel.

Parameters

Brand	DIDTEK
Structure	Gate Valve
Material	WCB
Type	Gate
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Pressure Seal 2500LB RTJ Gate Valve are widely utilized in demanding environments due to their superior material properties:

Supercritical Power Plants: Main steam, re-heat, and feed water isolation systems.
High-Pressure Petrochemical: Hydrocracking, catalytic reforming, and synthesis gas units.
Extreme High-Pressure Pipelines: Critical shut-off for ultra-high pressure distribution lines.
