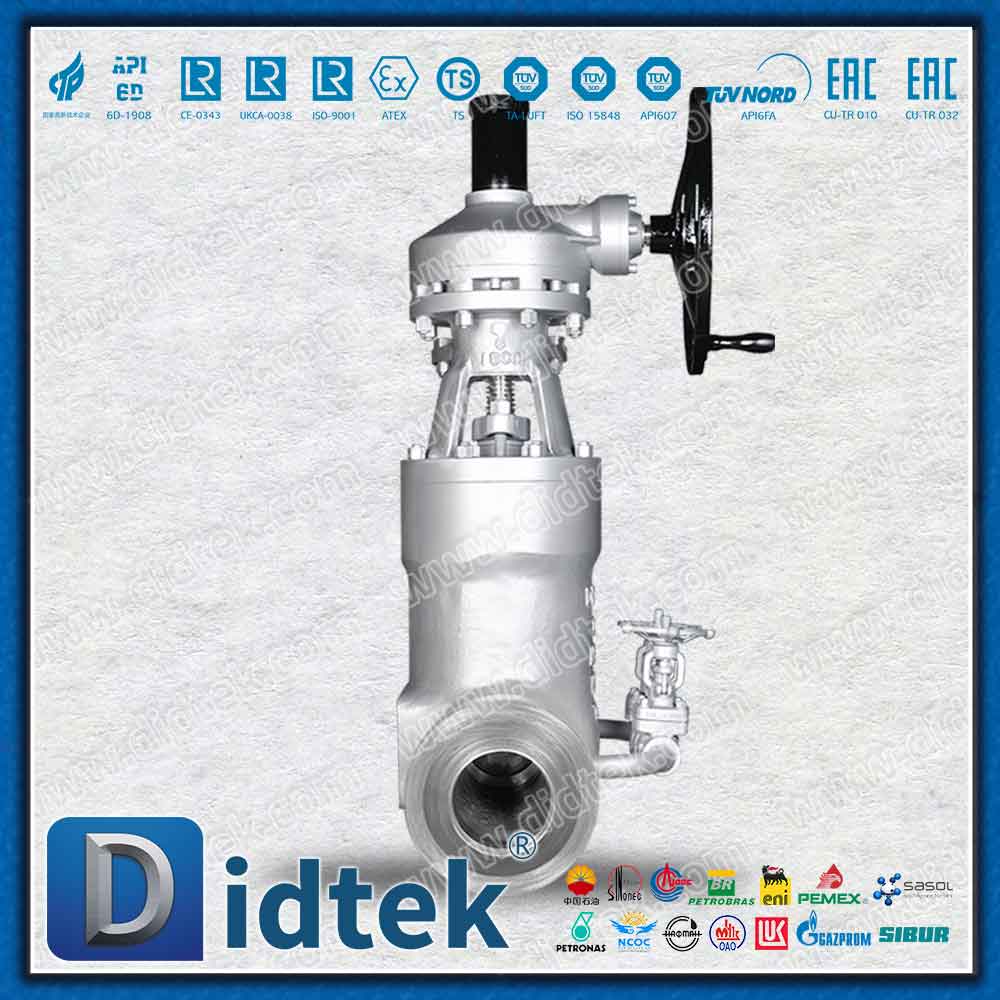

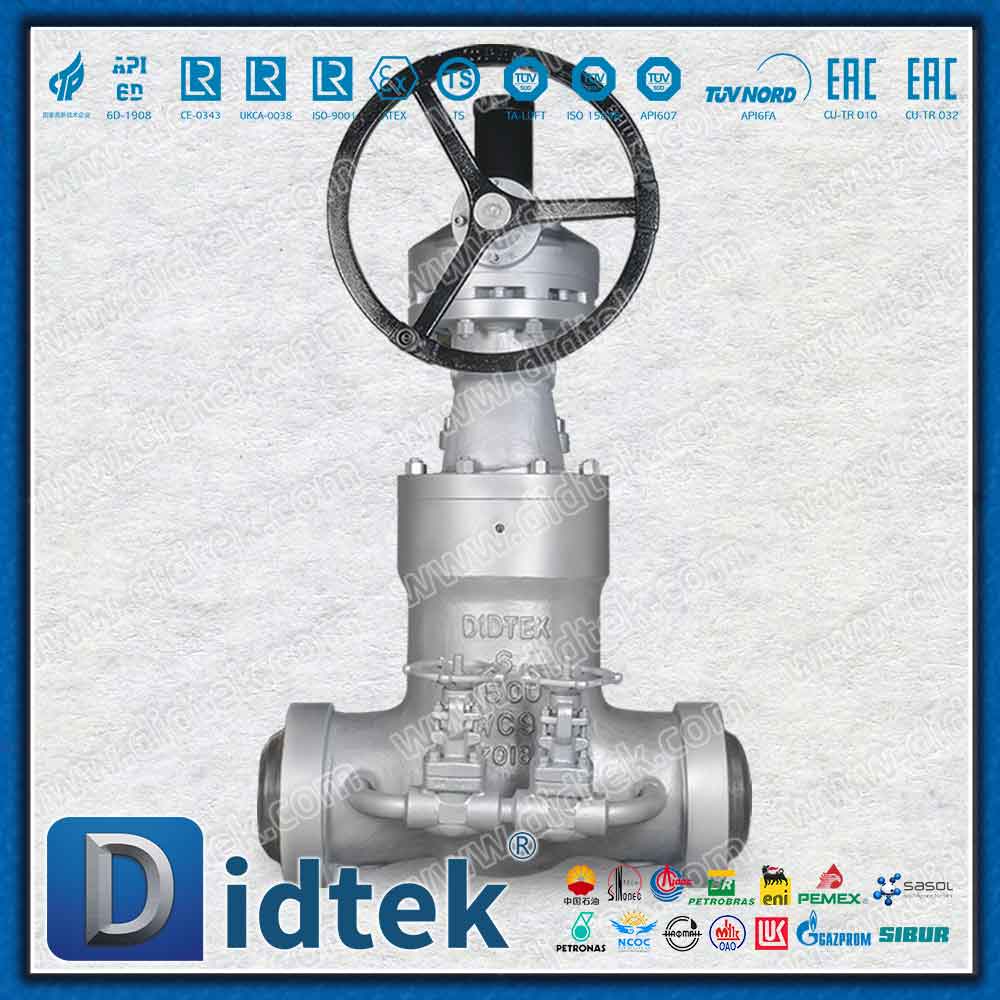

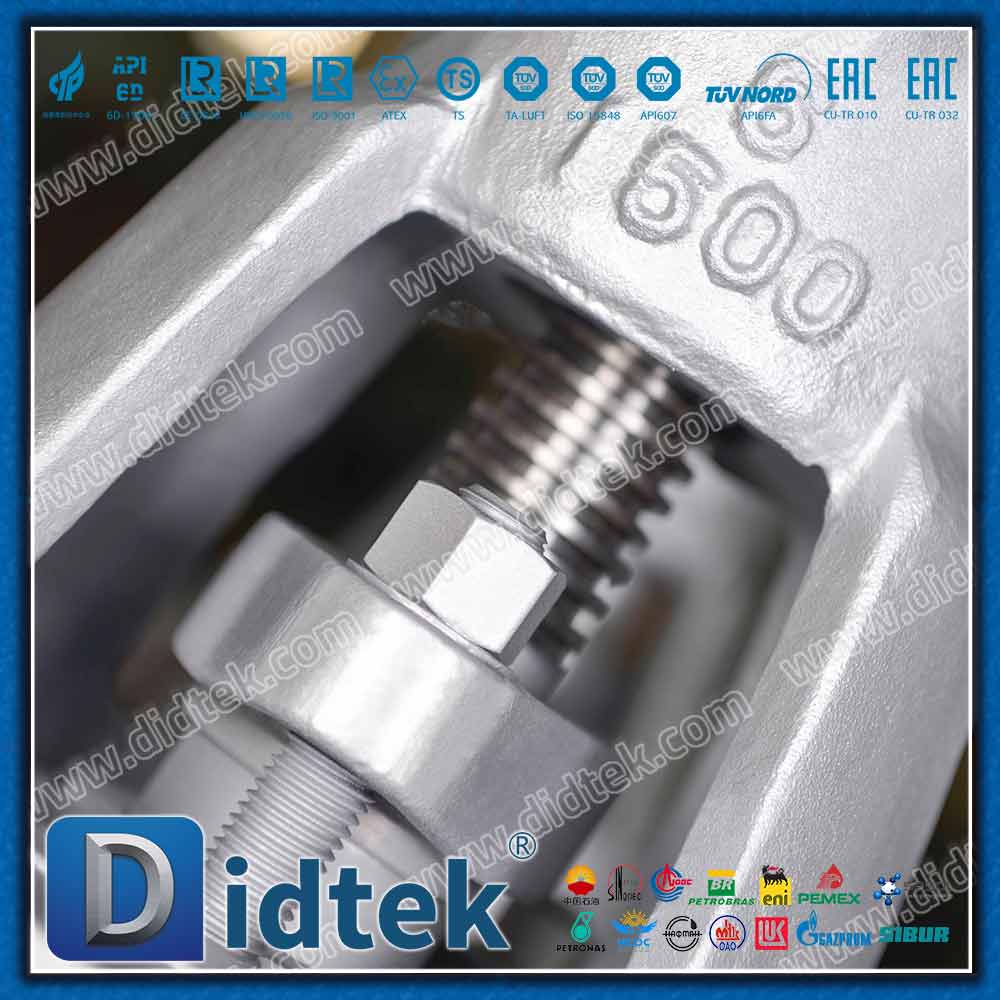

WC9 PSB 1500LB By Pass Gate Valve For Steam

Product Detail

The WC9 PSB 1500LB By-Pass Gate Valve serves as a premium, heavy-duty isolation component engineered specifically for high-pressure, high-temperature (HPHT) steam applications in power generation and petrochemical facilities. Forged and cast from structural ASTM A217 WC9 chrome-moly alloy steel, the valve body features a dense, heavy metallic composition that inherently resists creep and thermal scaling. This allows the unit to maintain absolute structural integrity and safe operation at extreme continuous temperatures up to 593°C.

At the core of its performance is the advanced Pressure Seal Bonnet (PSB) architecture. Unlike conventional bolted bonnets that are prone to yielding under extreme stress, this design utilizes the internal steam pressure to actively tighten the seal. As line pressure increases, it forces the bonnet against a specialized trapezoidal graphite sealing gasket. We integrate a stainless steel anti-extrusion protection ring into this assembly, ensuring absolute sealing and zero leakage even during volatile thermal cycling and intense pressure spikes common at Class 1500 ratings.

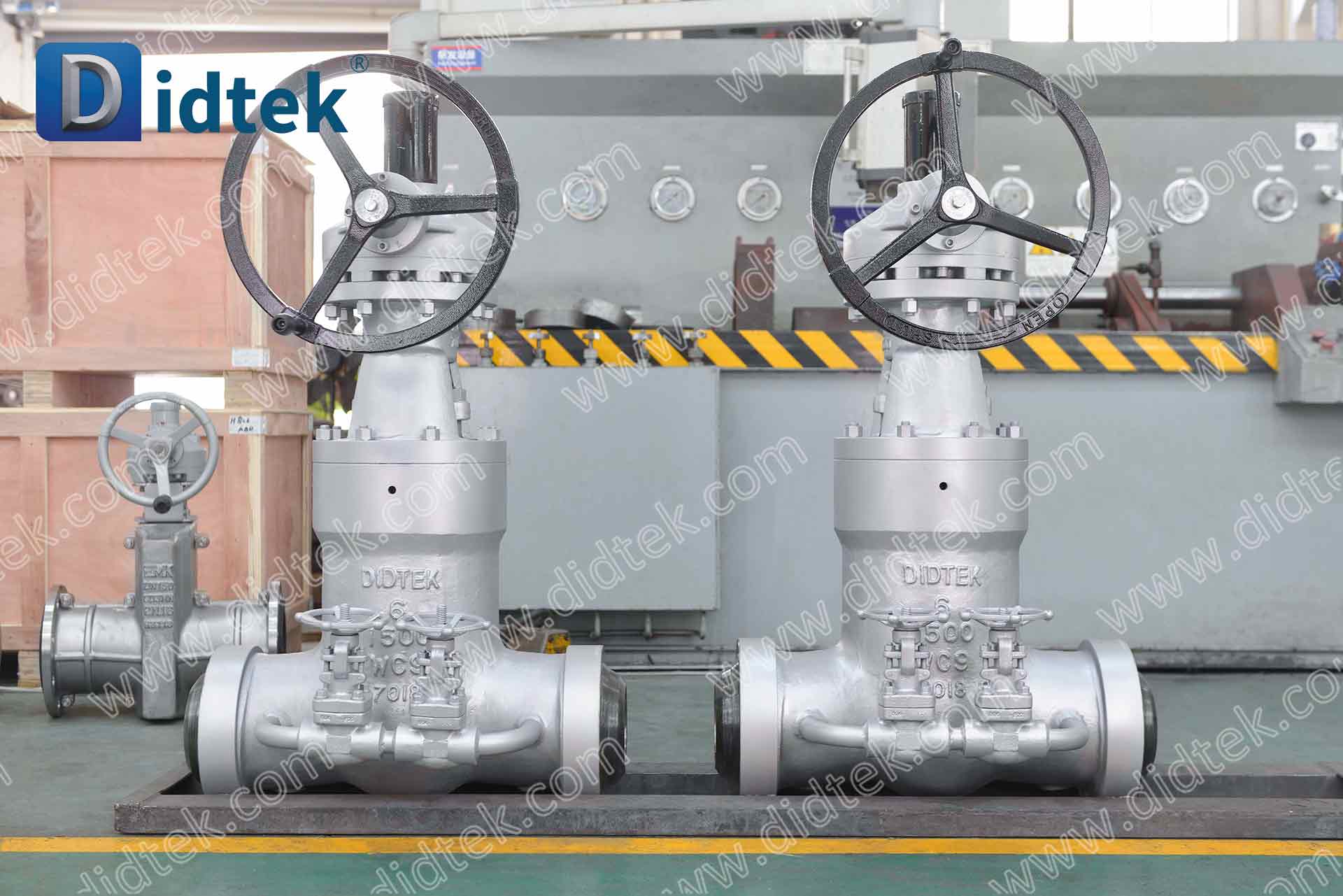

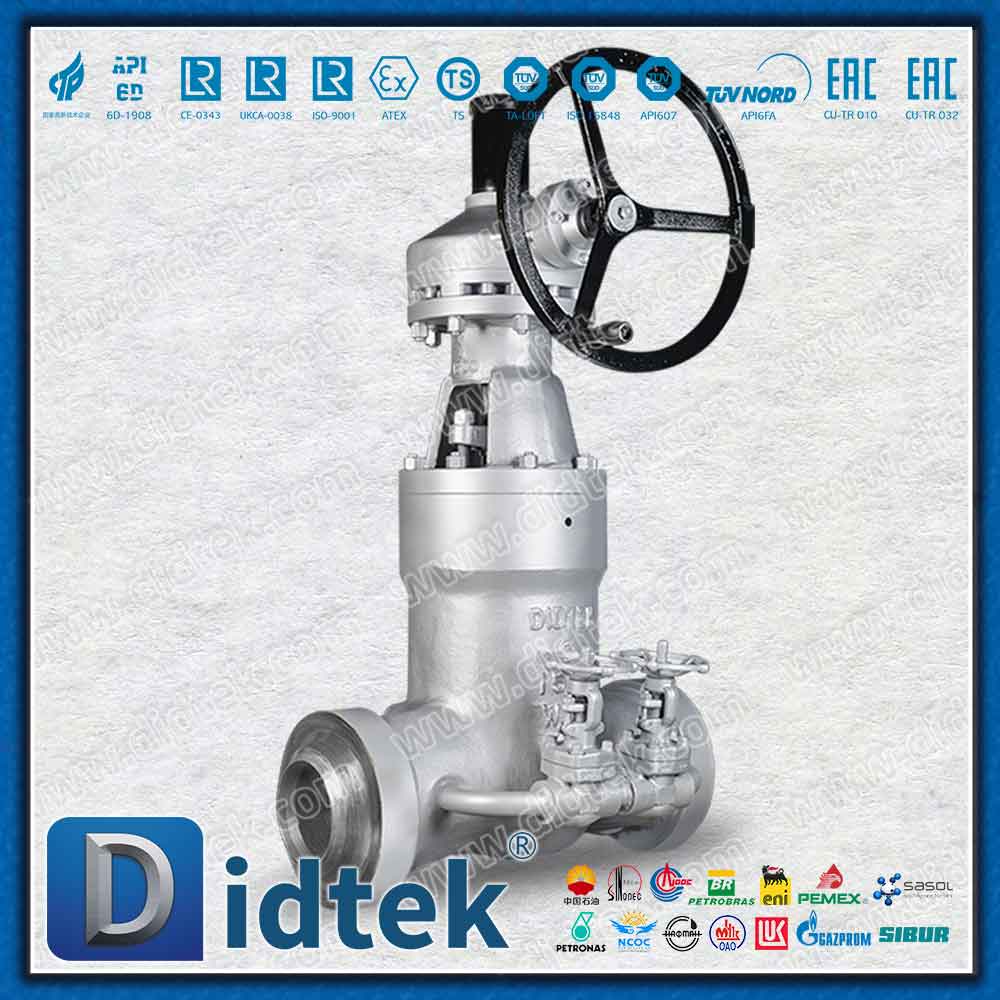

Furthermore, the integrated by-pass equalization system fundamentally transforms operational safety. Before the main gate opens, the small auxiliary bypass valve allows a controlled flow of steam to warm the downstream line and equalize differential pressure. Operators can hear the controlled hiss of pressure balancing, which dramatically reduces the operating torque required on the main stem and completely prevents thermal binding. To accommodate varied facility automation requirements, the top works feature a standardized ISO mounting flange, providing perfect compatibility with manual bevel gears, as well as electric or pneumatic actuators, and optional valve position indicators.

Product Parameters

Design Description

• High-Temperature WC9 Alloy: The 2.25% Cr - 1% Mo alloy composition provides superior tensile strength and corrosion resistance against superheated steam applications, preventing material degradation over decades of use.

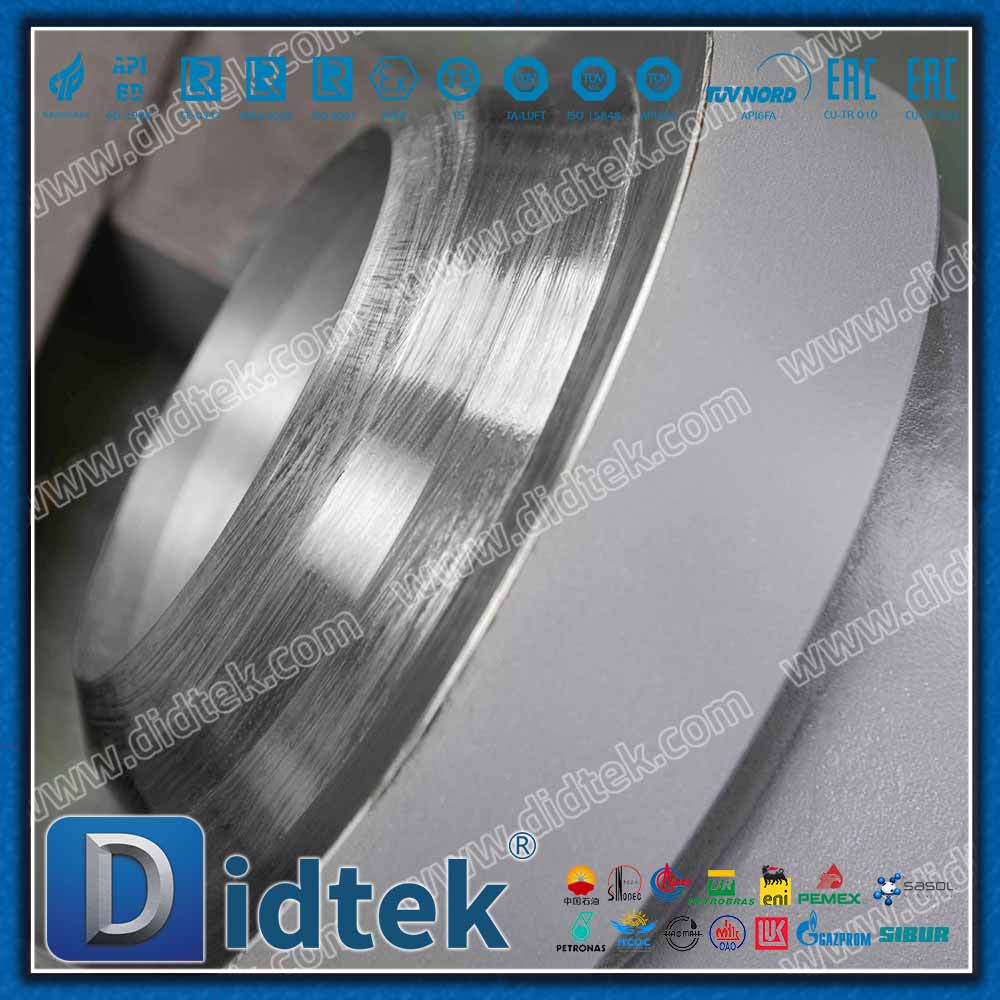

• Advanced Hardfacing Technology: To combat the severe erosion and wire-drawing effects of high-velocity steam, the wedge and seat rings are heavily overlaid with Stellite 6 cobalt-based alloy. Additionally, the upper backseat is hardfaced with Stellite 21. This dual-alloy approach drastically improves anti-galling properties and extends the operational lifespan of the internal trim under extreme differential pressures.

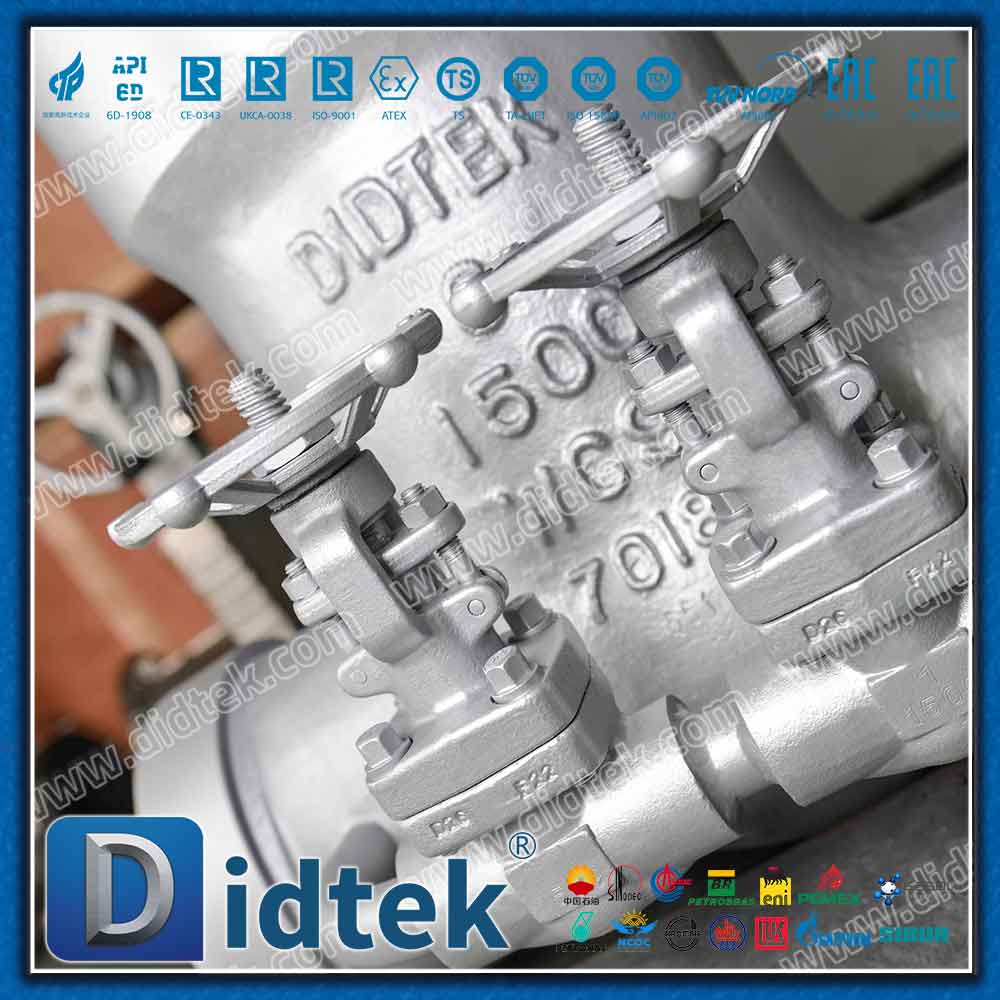

• By-Pass Equalization System: The small auxiliary bypass valve ensures controlled warming of the downstream piping network. This equalizes differential pressure, ensuring safe, predictable, and exceptionally smooth operation of the main valve without excessive mechanical strain on the operator or actuator.

• Pressure Seal Bonnet Integrity: The self-reinforcing gasket design means the higher the line pressure, the tighter the bonnet seal—ideal for managing volatile steam surges safely without the constant retorquing required by traditional flanged connections.

• Custom Safety Enhancements: Recognizing the complex realities of HPHT environments, the internal structure supports critical modifications such as a wedge vent hole to relieve trapped cavity pressure, overpressure protection tubes, and precise limit switches to comprehensively prevent thermal expansion lock-up.

Parameters

Quality Control & Global Logistics

Industrial procurement demands absolute certainty in material traceability and functional reliability. Our production protocol mandates that 100% of the valves undergo rigorous hydrostatic and pneumatic testing prior to dispatch, strictly conforming to API 598 standards. Every unit is accompanied by a comprehensive Mill Test Certificate (MTC) and detailed quality traceability reports, giving plant engineers complete confidence in the metallurgical and mechanical properties of their assets.

Recognizing the physical weight and critical nature of these heavy-duty valves, our packaging standards are engineered for extreme global transit. Each valve is first coated with a protective layer and hermetically wrapped in anti-rust plastic film to prevent oxidation from atmospheric moisture. The unit is then secured within a seaworthy, heavy-duty plywood case, fortified to absorb impact and vibration during long-haul ocean freight, ensuring the equipment arrives at your facility in pristine, ready-to-install condition.

Application & Function

WC9 PSB 1500LB By Pass Gate Valves for Steam are widely utilized in demanding environments where material failure is not an option. The specialized alloy properties and pressure-seal mechanics make them the preferred isolation solution for the following critical sectors:

• Thermal Power Plants: Essential for main steam isolation lines, turbine bypass systems, and superheater headers. The valves handle the intense thermal shock and sustained high pressures required to drive massive turbines, ensuring safe start-up and shutdown sequences without structural fatigue.

• Petrochemical Refining: Deployed heavily in high-temperature hydrocracking and steam cracking units. The Stellite-hardfaced trim resists the corrosive and erosive nature of mixed hydrocarbon and steam flows, minimizing maintenance downtime in continuous processing units.

• Industrial Steam Networks: Critical for high-pressure steam distribution and boiler isolation. The integrated bypass system allows operators to safely introduce steam into cold piping networks, preventing catastrophic water hammer and extending the lifespan of the entire piping infrastructure.
