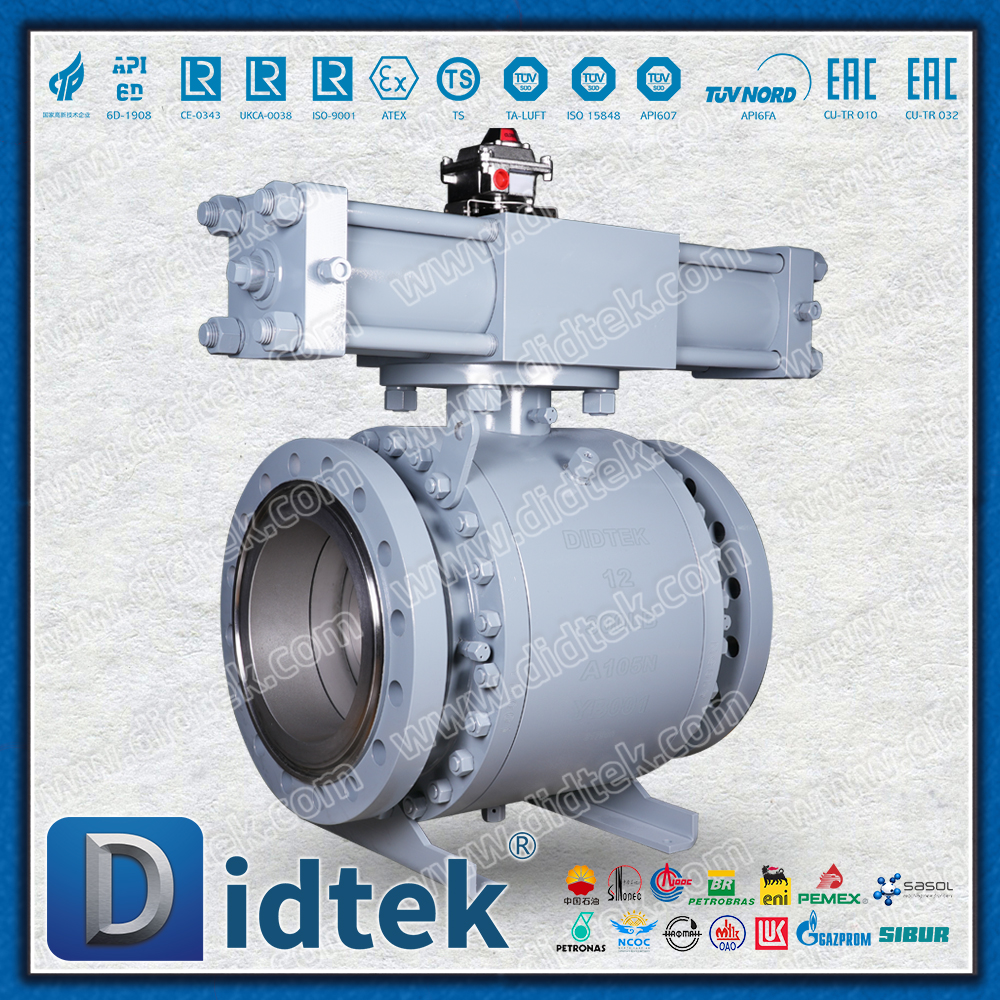

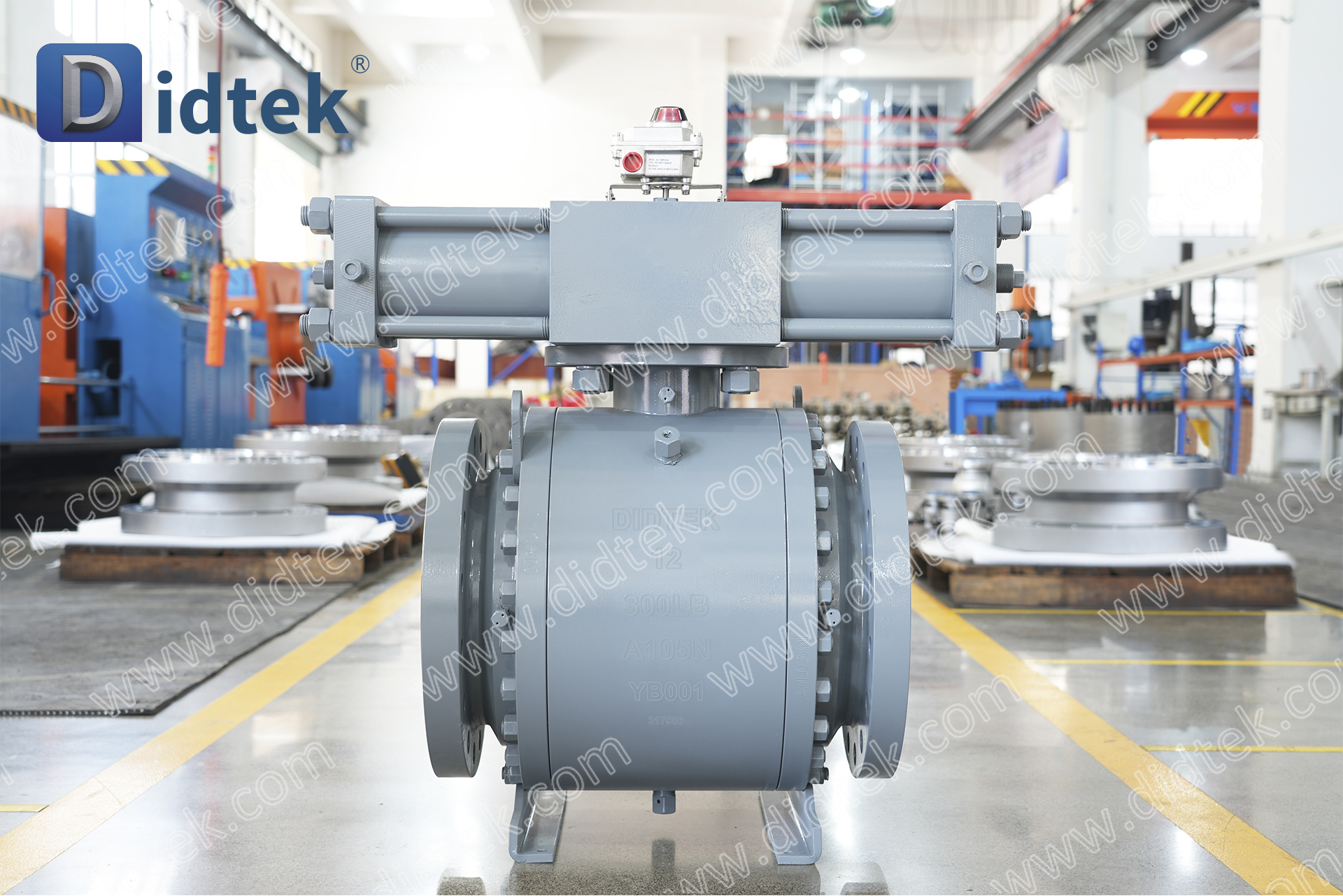

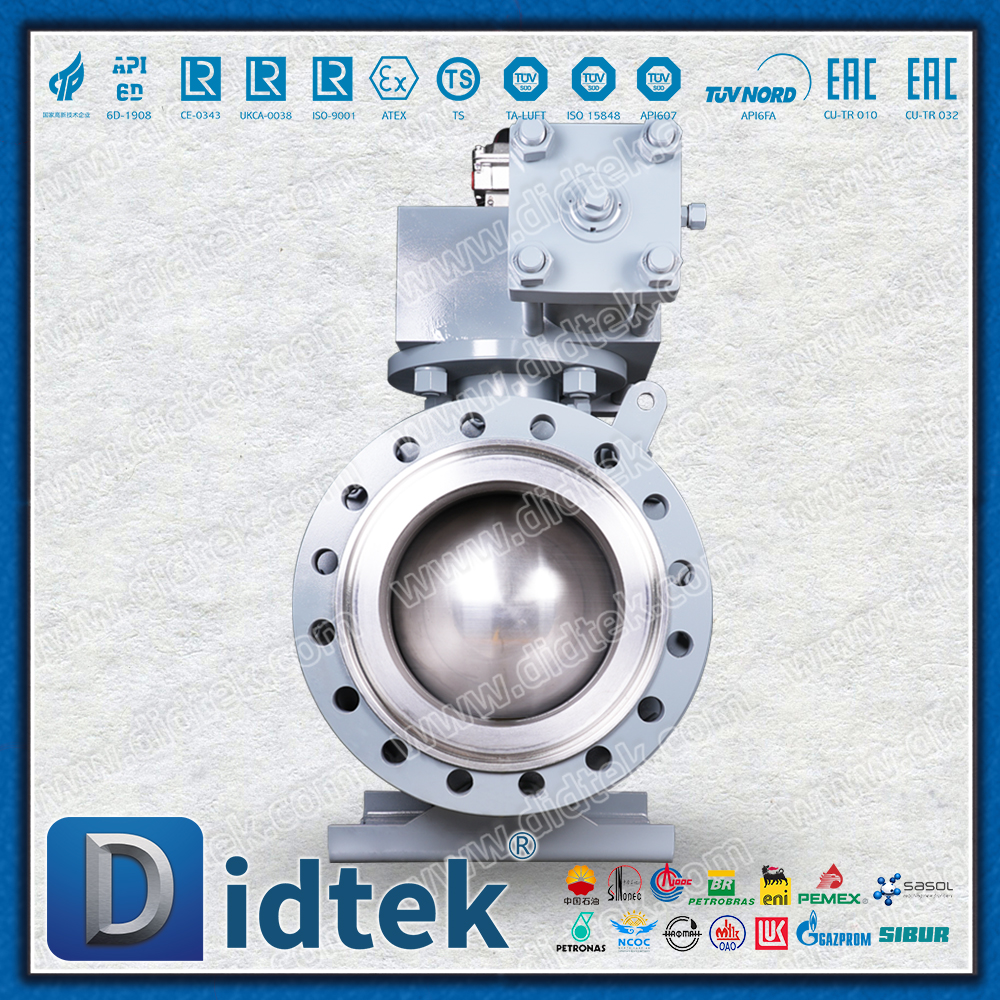

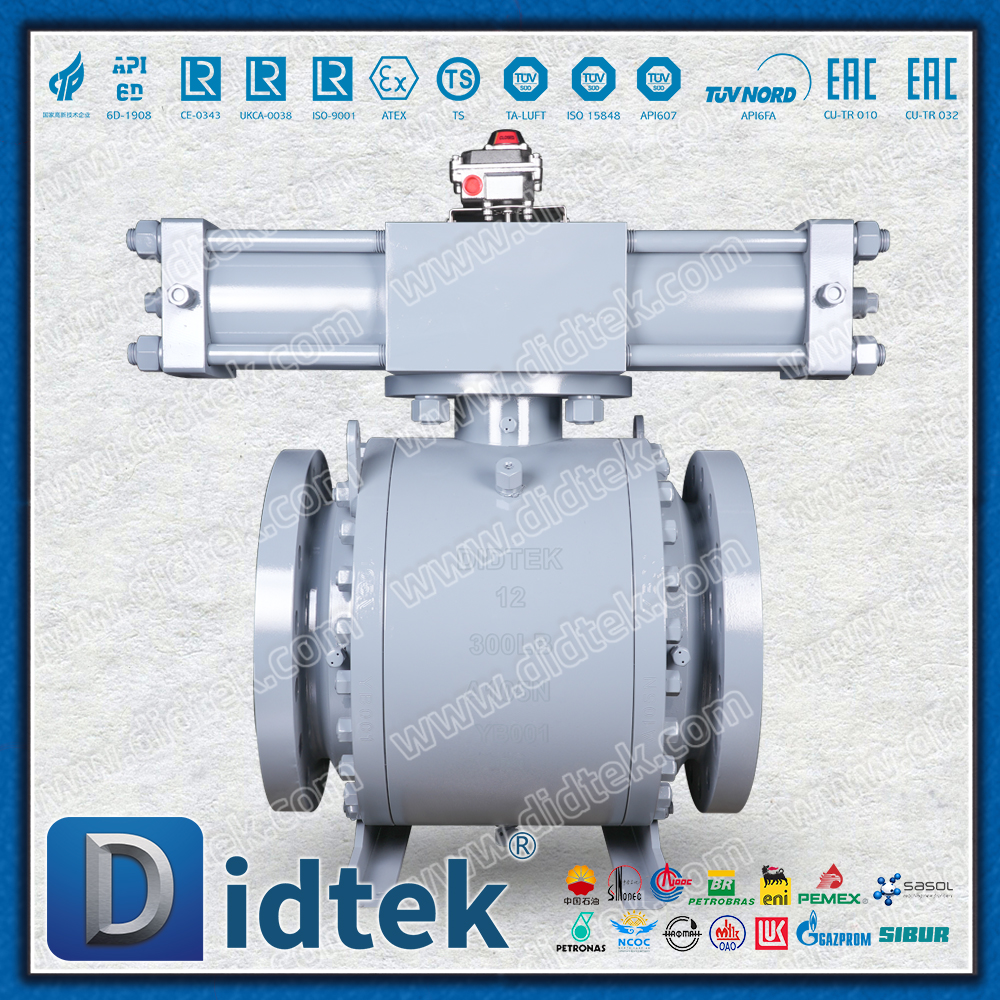

Industrial A105N Hydraulic Operate Forged Steel Valve

Core Product Positioning

This product is made of ASTM A105N forged steel and is an industrial-grade high-performance valve specially driven for hydraulic systems. Combining the excellent mechanical properties of forging materials with the high torque and rapid response advantages of hydraulic actuators, it is suitable for industrial applications that require high temperature and high pressure, critical safety, and strict automation control.

Detailed technical specifications

Core design features

1.Advantages of A105N forged steel valve body

High-strength structure: The forging has dense grains, tensile strength ≥ 485 MPa, and impact toughness is superior to that of castings

Stable high-temperature performance: It still maintains good mechanical properties at a high temperature of 425℃

No casting defects: Eliminate casting defects such as sand holes and gas holes, and have higher pressure-bearing safety

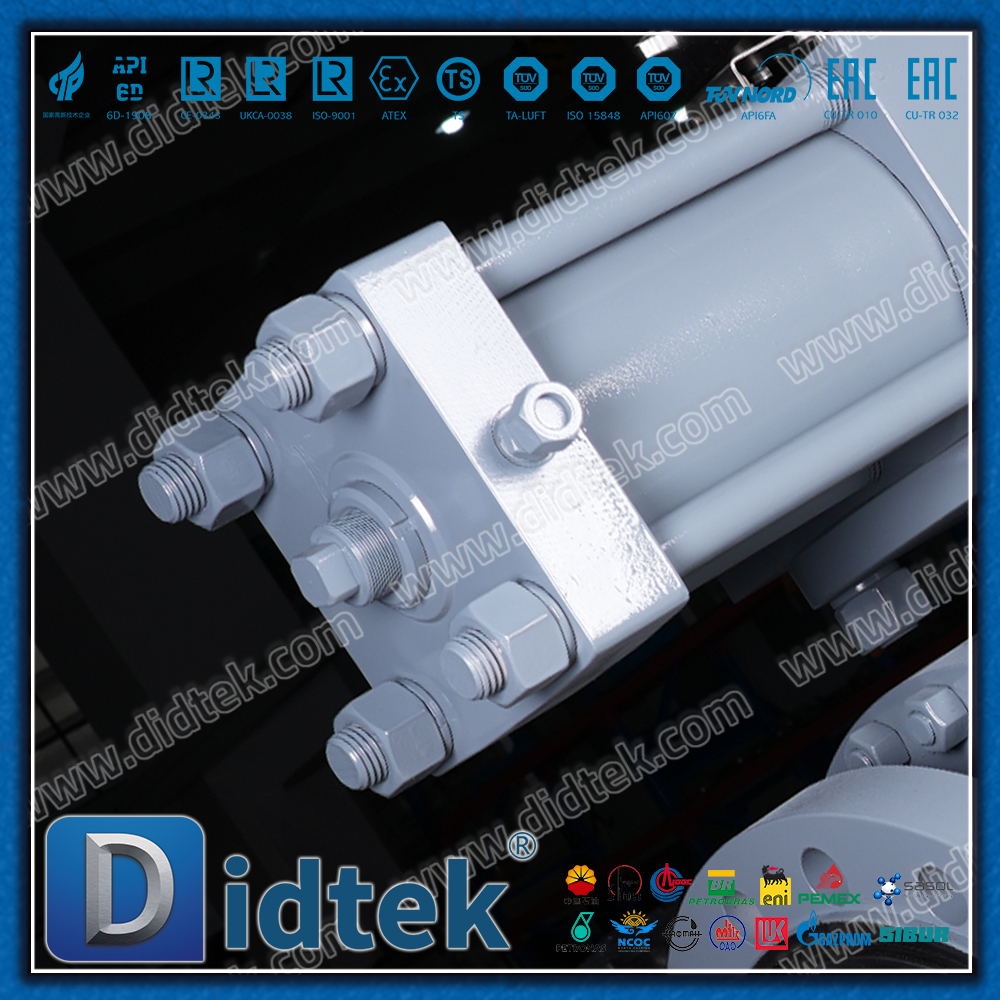

2. Specialized hydraulic actuator system

Super large torque output: Hydraulic drive provides a torque capacity far exceeding that of pneumatic/electric actuators

Precise position control: An optional hydraulic servo system is available to achieve precise valve opening adjustment

Intrinsic explosion-proof: Hydraulic drive without electrical components, suitable for explosive hazardous environments

Fast response: Full-stroke action time 2-8 seconds (adjustable according to configuration)

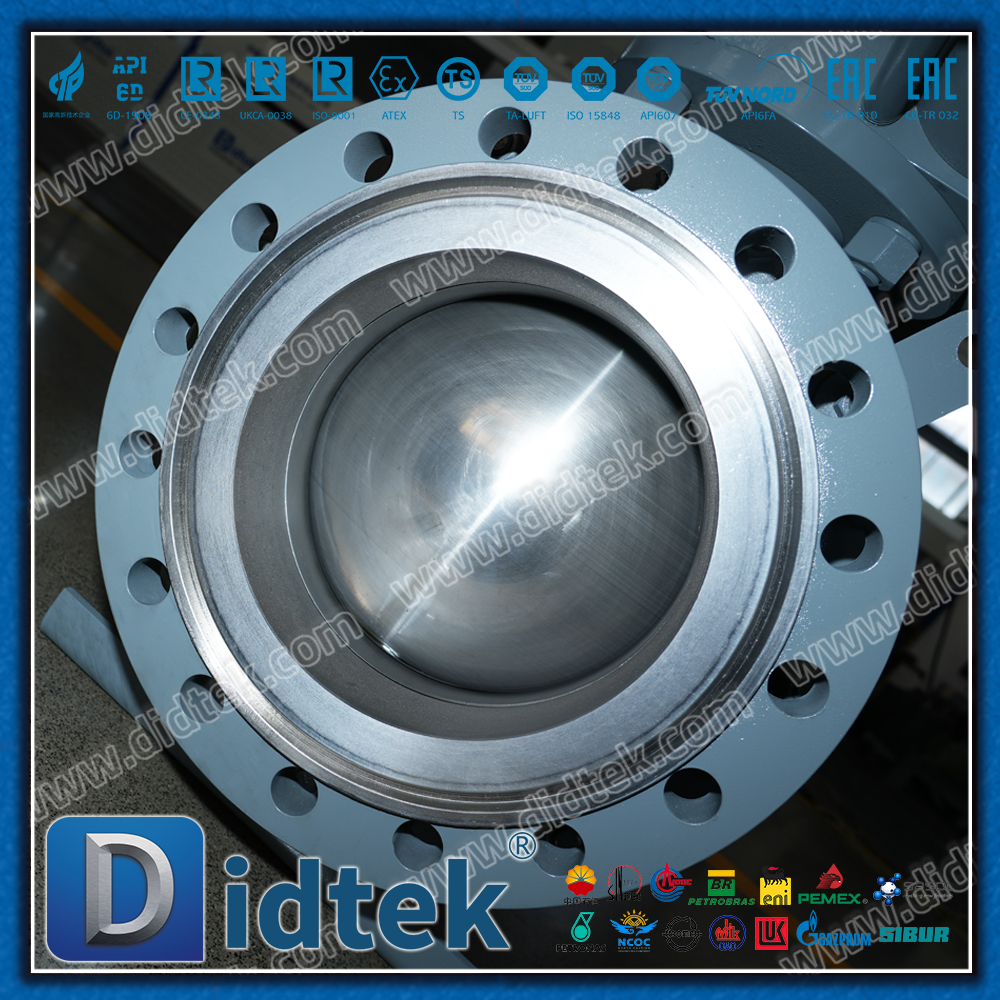

3. Heavy-duty sealing system

High-pressure sealing design: Multiple sealing structures are adopted to ensure zero leakage at Class 2500 grade

Self-compensating valve seat: Spring-loaded valve seat, automatically compensates for changes in sealing specific pressure caused by variations in temperature and pressure

Fire safety: Complies with API 607 standard. After the soft seal fails, a metal-to-metal secondary seal is formed

Performance and Advantages

Ultra-high pressure capability: Up to Class 2500 pressure level

Reliability and lifespan: The designed lifespan exceeds 100,000 cycles

Adaptability to harsh environments: waterproof, explosion-proof, heat-resistant, and vibration-resistant

Low maintenance requirements: The hydraulic system has a long maintenance cycle and a low failure rate

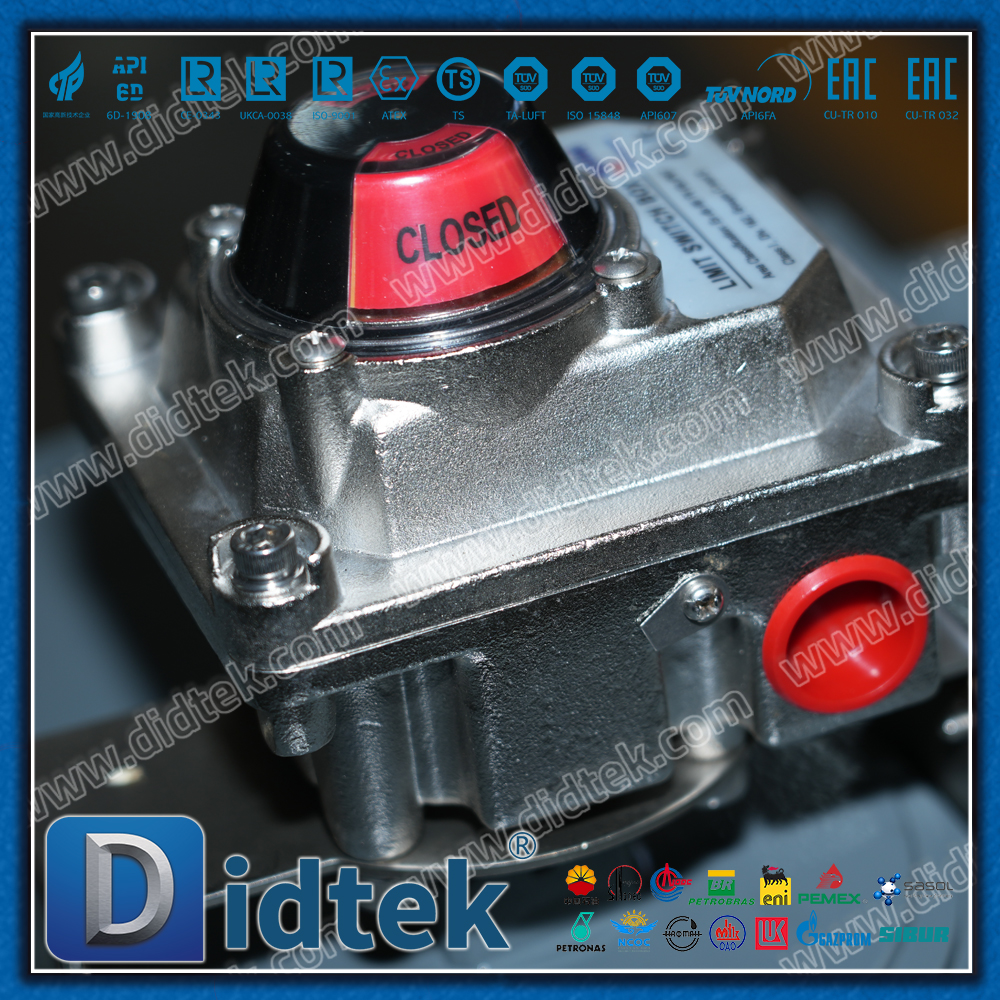

Intelligent control: Supports position feedback, pressure monitoring, and remote control

Typical application fields

Oil and gas: wellhead equipment, choke manifolds, high-pressure gathering and transportation pipelines

Chemical process: Feeding and discharging of high-pressure reactors, control of synthesis circuits

Energy and power: High-pressure feed water and steam systems for supercritical units

Heavy industry: Hydraulic press systems, steel rolling equipment, heavy machinery

Special applications: Submarine valves, auxiliary systems for nuclear power plants, military equipment

Summary

The Industrial A105N hydraulic-driven forged steel valve, through the perfect combination of the outstanding performance of forged steel materials and the powerful power of hydraulic drive, provides industrial users with

Ultimate pressure capacity: Up to Class 2500 pressure level

Super strong driving torque: Suitable for the most demanding operating conditions

Intrinsically safe and reliable: Explosion-proof design, fault safety protection

Long service life: The designed service life exceeds 100,000 cycles

Applicable customer groups: Critical application scenarios with extremely high requirements for valve performance, reliability and safety, such as oil and gas, chemical industry, power, heavy industry, etc.
