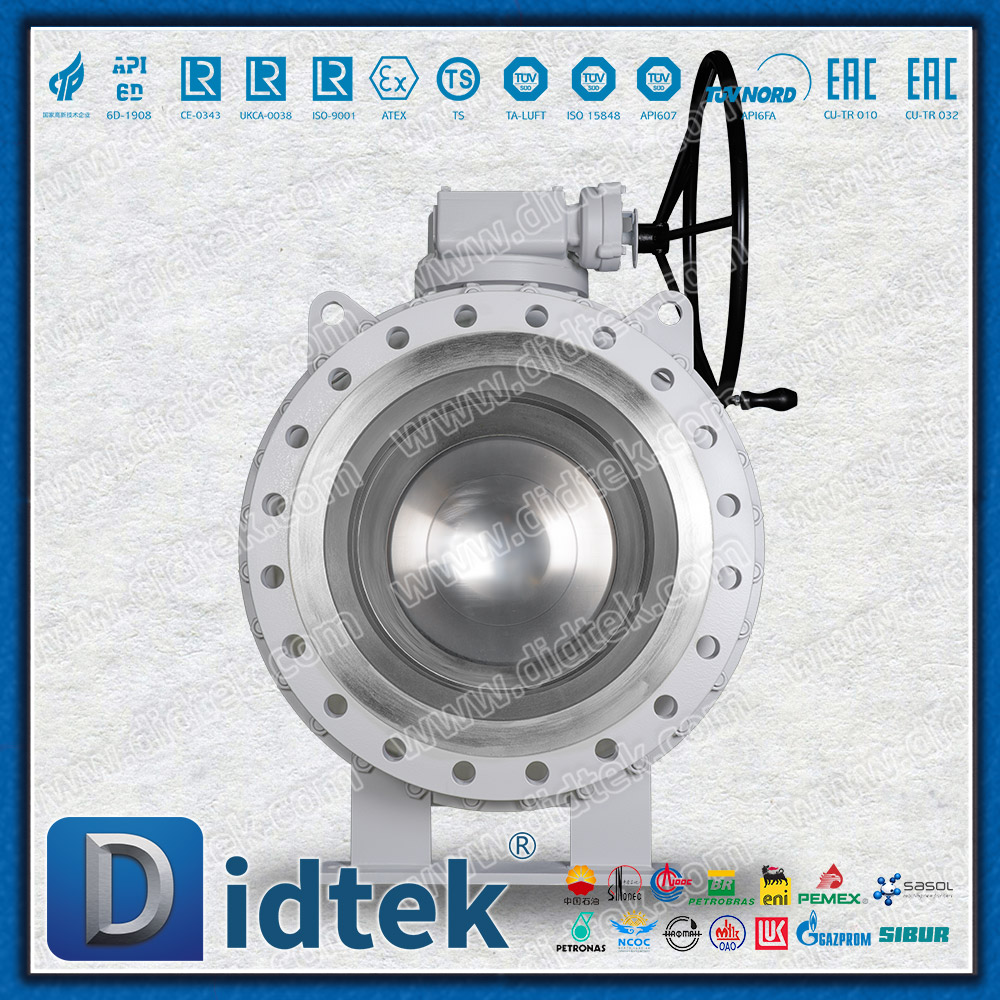

Gear Operated LF2 Top Entry Ball Valve for Industrial Use

The Didtek Gear Operated LF2 Top Entry Ball Valve is a premium fluid control solution designed for high-pressure networks and extreme low-temperature environments.

Model:
Q347F-150LBL
Brand:
DIDTEK
Code:
TRBV-FTBV-041

Availability:

Quantity:



Inquire

ASTM A350 LF2 Top Entry Ball Valve Gear Operated In-line Maintenance Valve API 6D Low Temperature Ball Valve Forged Steel Top Entry Ball Valve Manufacturer High Pressure DBB Top Entry Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

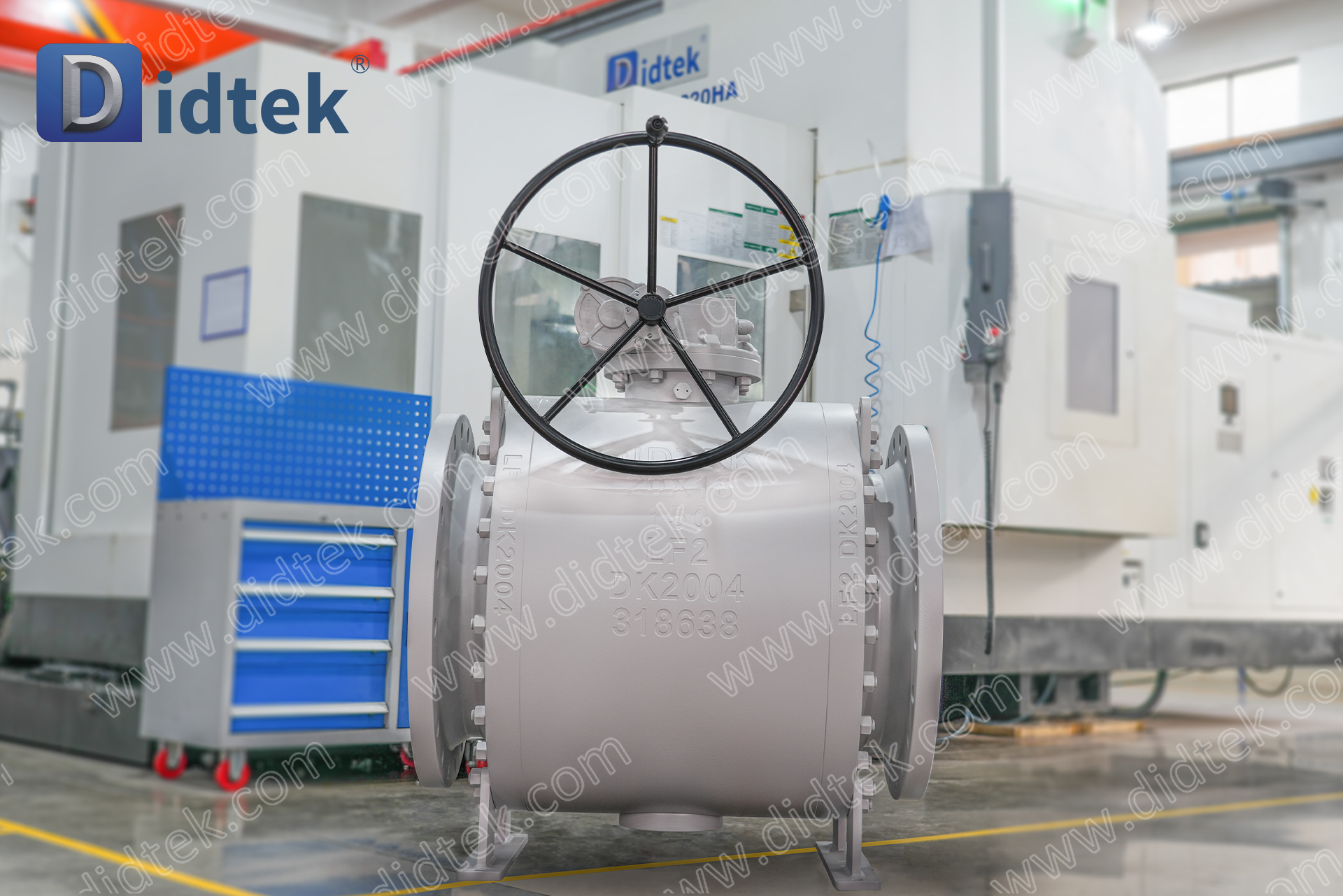

The Didtek Gear Operated LF2 Top Entry Ball Valve is a premium fluid control solution designed for high-pressure networks and extreme low-temperature environments. Forged from ASTM A350 LF2 carbon steel, its standout advantage lies in the Top Entry construction—allowing for rapid in-line maintenance or replacement of the ball, seats, and seals by simply removing the bonnet, without extracting the valve from the pipeline. Equipped with a high-performance Gear Operator, it ensures precise and effortless manual control even in large-diameter and high-differential pressure applications. B-41 DIDTEKFTMSBV-Gear Operated LF2 Top Entry Ball Valve for Industrial Use

Product Parameters

Parameter Name	Parameter
Size Range	20''X18''
Pressure Range	150LB
Material	LF2
Seal	Soft Seat: PTFE
Temperature Range	-40°C~200°C
Design According	API6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	Flanged
Fire Safety	API6FA
Inspection and Test	API 598, ASME B16.34
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

One-Piece Rugged Body: The monolithic forged design minimizes potential leak paths and enhances structural rigidity for high-pressure integrity.
Simplified In-Line Maintenance: The top-entry design grants vertical access to internal components, a critical feature for reducing operational downtime in buried or space-restricted pipelines.
LF2 Low-Temp Resilience: Optimized for cold climates, maintaining superior impact toughness at temperatures down to -46℃ to prevent brittle failure.
Gear-Driven Efficiency: Heavy-duty worm gear actuators provide significant mechanical advantage, allowing a single operator to manage high-differential pressures effortlessly with clear position indication.
Full Safety Compliance: Fully compliant with API 6D, featuring Double Block and Bleed (DBB) functionality, anti-static devices, anti-blowout stem, and fire-safe sealing per API 607.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Aluminum-magnesium series anti-rust aluminum alloy
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Lip Seal with Vent & Drain Flange Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Cold Climate Oil & Gas Networks: Ideal for transmission systems in high-latitude regions such as Alaska, Siberia, and Northern China.
Compressor & Pumping Stations: Perfect for critical nodes where in-line serviceability avoids costly piping disassembly.
LNG & Cryogenic Service: Suitable for terminals and facilities handling low-temperature liquid or gaseous media.
Offshore Platforms & Refineries: Excels in space-constrained environments where maximum reliability and safety are mandatory.
