LF2 Pneumatic High pressure Top Entry Ball Valve

The Didtek LF2 Pneumatic High Pressure Top Entry Ball Valve is an automated fluid control solution engineered for arctic environments and complex high-pressure applications.

Model:
QT667-900LBL
Brand:
DIDTEK
Code:
TEBV TEBV-010

Availability:

Quantity:



Inquire

Pneumatic Top Entry Ball Valve LF2 API 6D High Pressure Automated Valve Low Temperature Forged Steel Top Entry Valve In-line Maintenance Pneumatic Ball Valve ASTM A350 LF2 Actuated Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

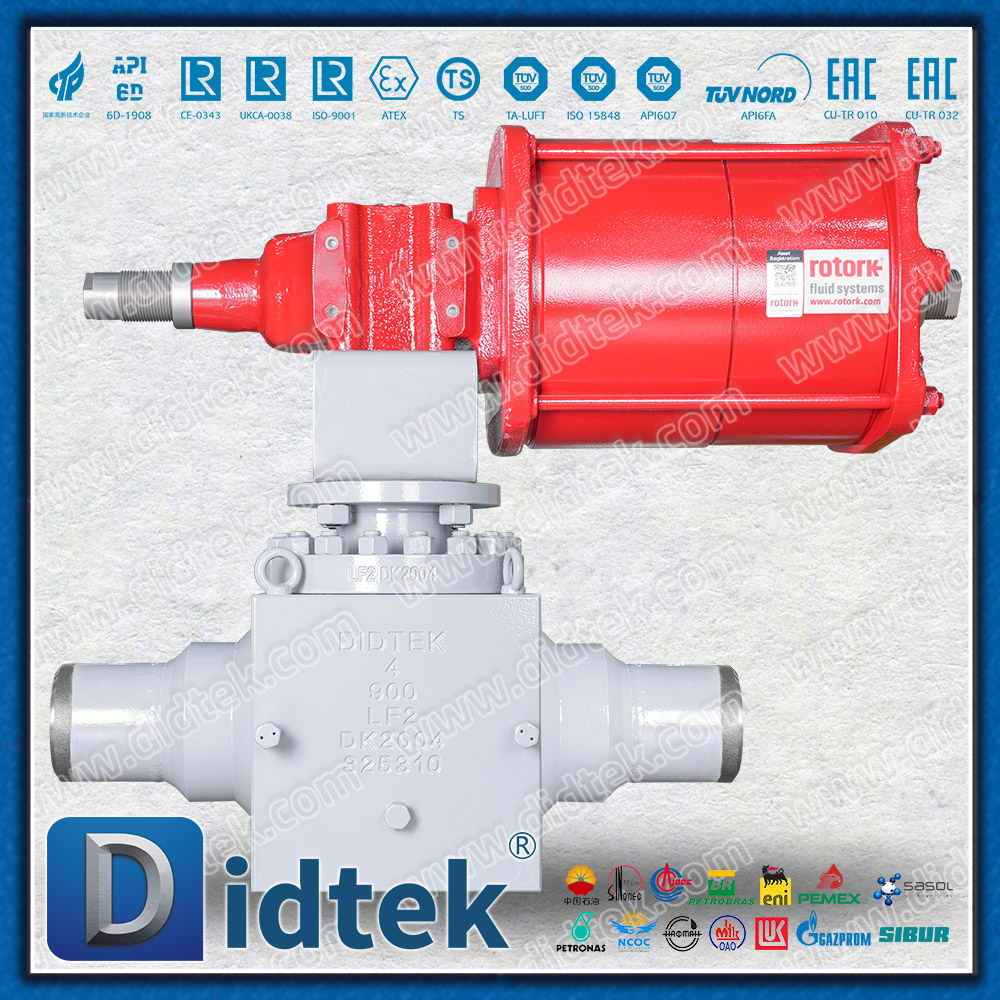

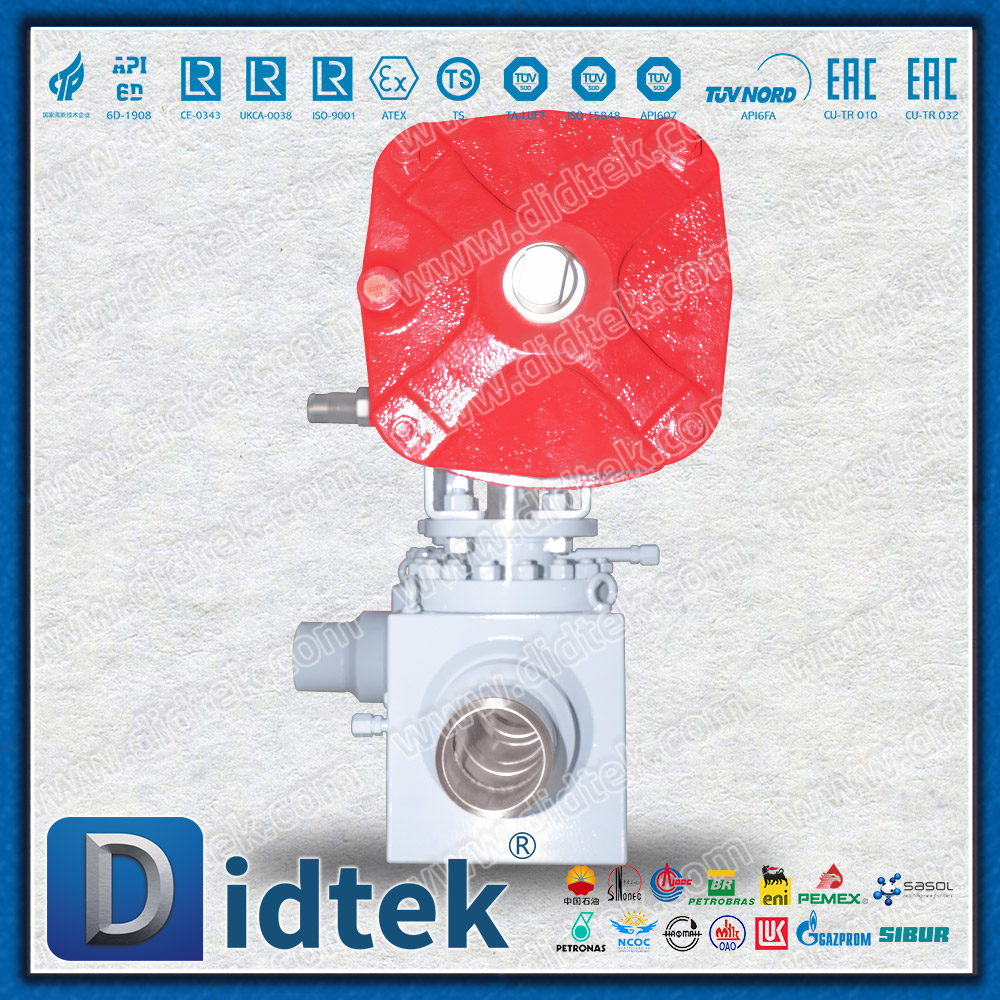

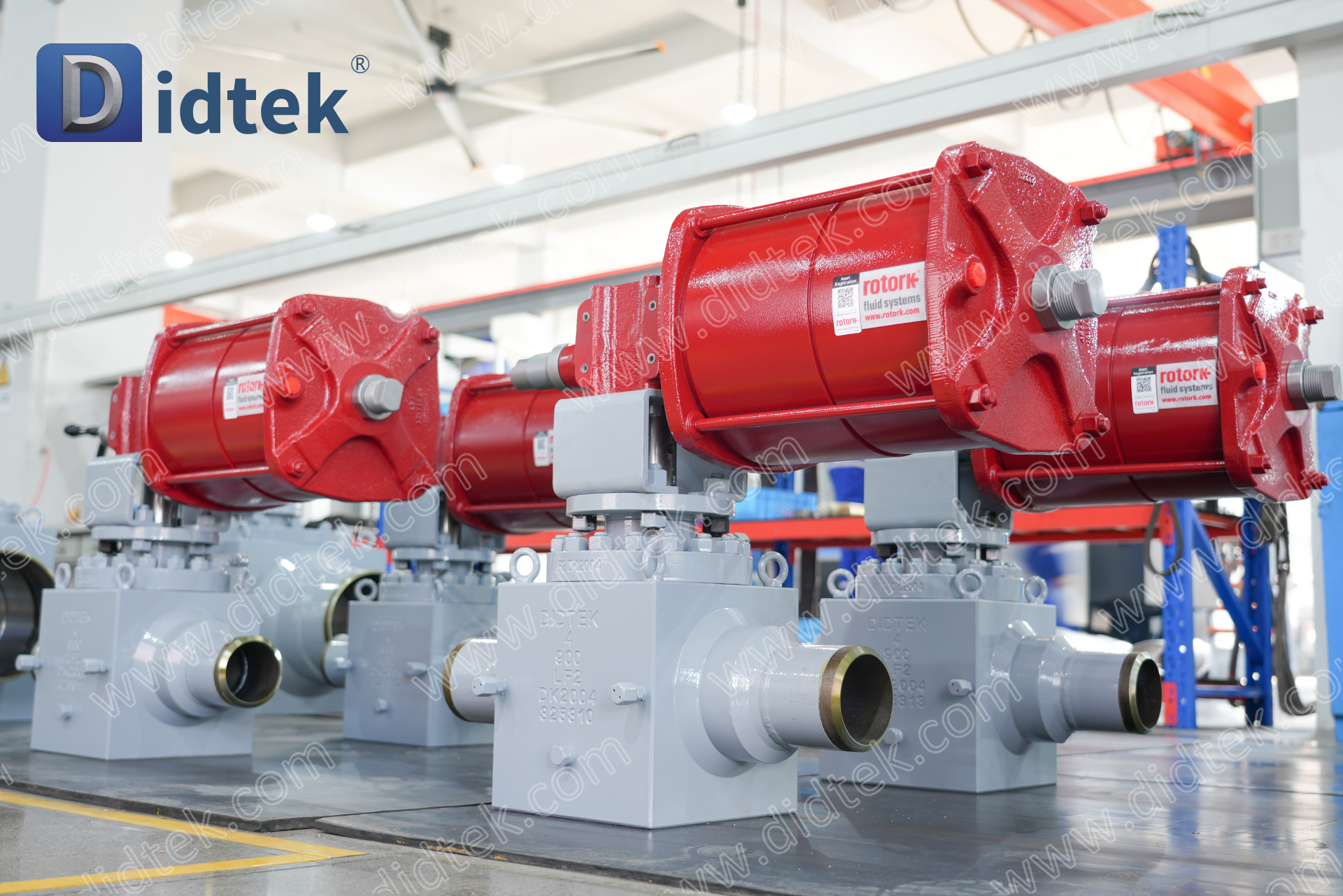

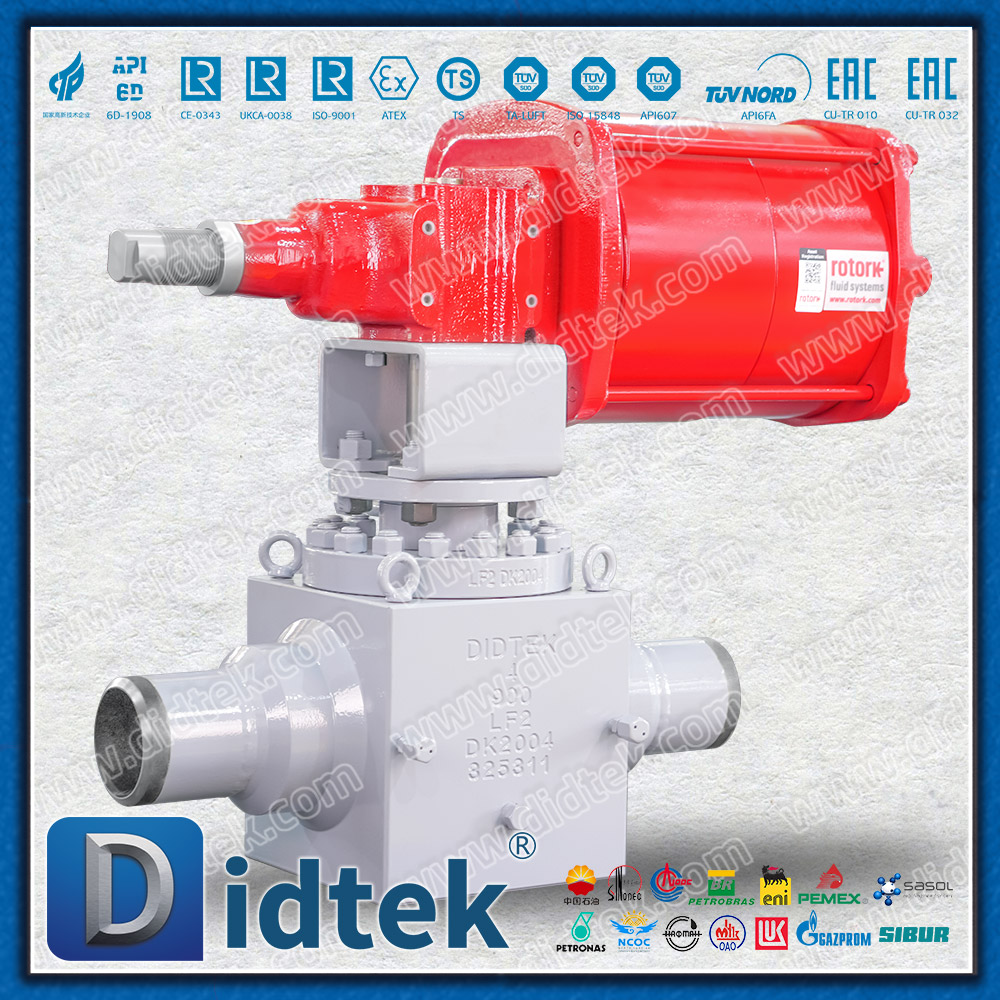

The Didtek LF2 Pneumatic High Pressure Top Entry Ball Valve is an automated fluid control solution engineered for arctic environments and complex high-pressure applications. Forged from ASTM A350 LF2 low-temperature carbon steel, it maintains superior impact toughness down to -46℃. The Top Entry design facilitates rapid in-line maintenance and component replacement from the top without pipeline disassembly, significantly reducing OPEX. Integrated with a high-performance pneumatic actuator, it provides rapid shut-off and precise remote control, meeting the demands of modern industrial automation. Pneumatic Top Entry Ball Valve LF2

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	900LB
Material	LF2
Seal	Soft Seat: DEVLON
Temperature Range	-40°C~100°C
Design According	API6D
End to End Dimension	ASME B16.10
End Flanges	ASME B16.25
End Connection Type	Butt Welded
Fire Safety	API607
Inspection and Test	API 598, ASME B16.34
Operate	Pneumatic
Body Type	Top Entry
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

One-Piece High-Pressure Body: The unibody forged construction eliminates central flange joints, minimizing leakage paths under high-pressure conditions.
Low-Temperature Toughness: ASTM A350 LF2 material is Charpy impact tested to ensure no brittle fracture in freezing climates.
Rapid Pneumatic Response: Equipped with piston or scotch-yoke actuators, supporting fail-safe options (Fail-Close/Fail-Open) with fast, stable operation.
Double Block and Bleed (DBB): Fully compliant with API 6D, utilizing spring-energized seats for independent bi-directional sealing and safe cavity venting.
Comprehensive Safety Suite: Features fire-safe design (API 607), anti-static devices, and anti-blowout stems for maximum security in hazardous services.
ISO 5211 Direct Mounting: Features a standardized top-mounting pad for seamless integration of pneumatic actuators, limit switches, and solenoid valves.

Parameters

Brand	DIDTEK
Structure	Top Entry Trunnion Ball
Material	Aluminum-magnesium series anti-rust aluminum alloy
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

LF2 Pneumatic High pressure Top Entry Ball Valve are widely utilized in demanding environments due to their superior material properties:

Arctic Oil & Gas Networks: Ideal for long-distance pipelines and compressor stations in high-latitude, freezing regions.
Emergency Shut-Down (ESD): Critical element for Safety Instrumented Systems (SIS) in plants and terminals.
Offshore Platforms & FPSOs: Leveraging the compact top-entry design for easy maintenance in space-restricted environments.
Chemical Process Automation: Handling flammable, explosive, toxic, or corrosive high-pressure fluids.
