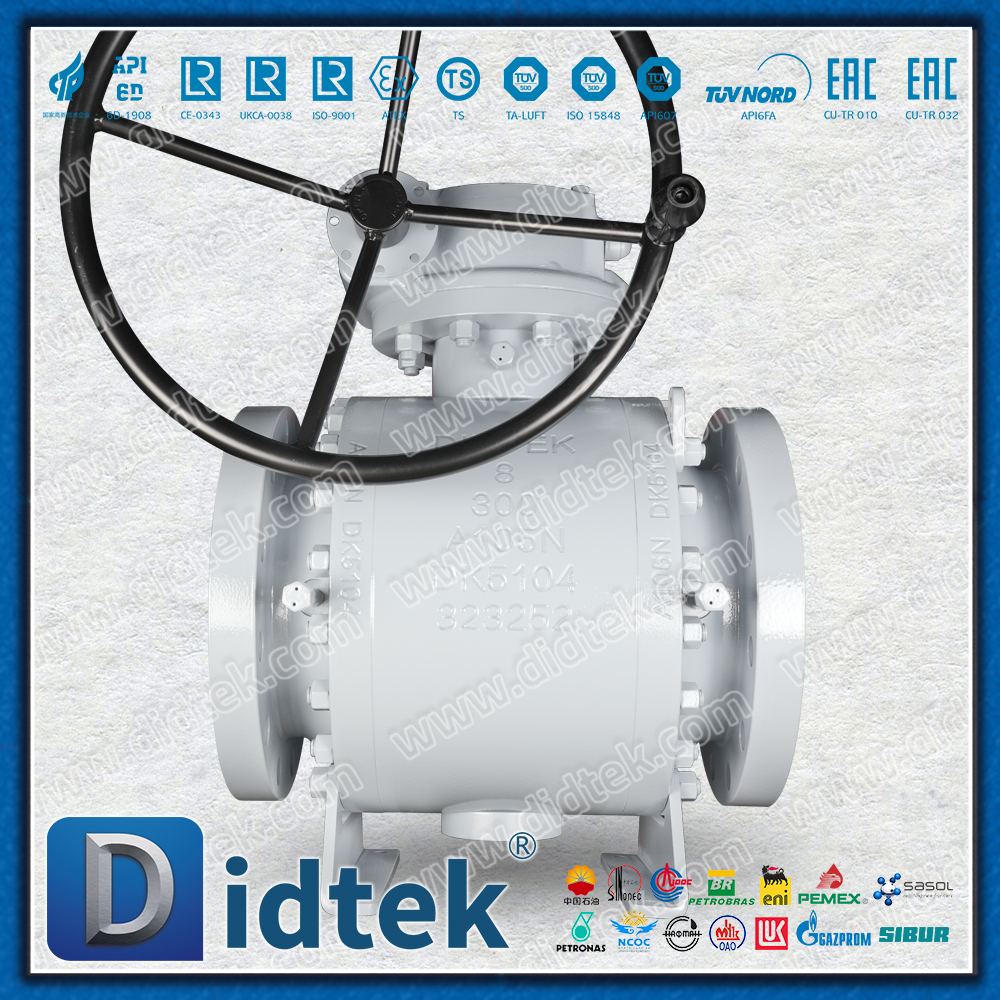

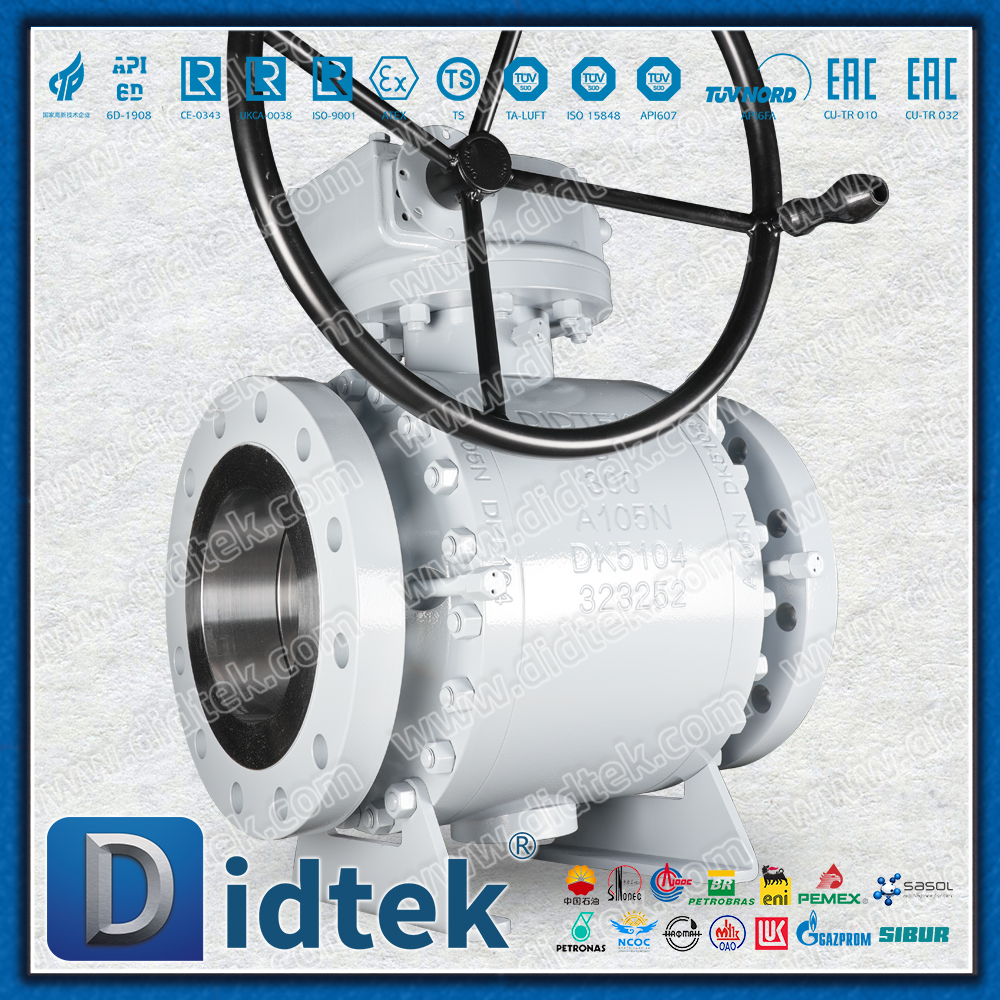

ASTM A105N Weld Overlay UNS N06625+TCC Trunnion Ball Valve

The ASTM A105N Trunnion Ball Valve with UNS N06625 Weld Overlay and TCC Coating is a premium engineered solution for high-pressure, highly corrosive, and abrasive services.

Model:
Q344Y-300LBC
Brand:
DIDTEK
Code:
TRBV-FTBV-036

Availability:

Quantity:



Inquire

Weld Overlay Ball Valve Clad Ball Valve Ball Valve with Weld Overlay Butter Welded Ball Valve Inconel 625 Overlay Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

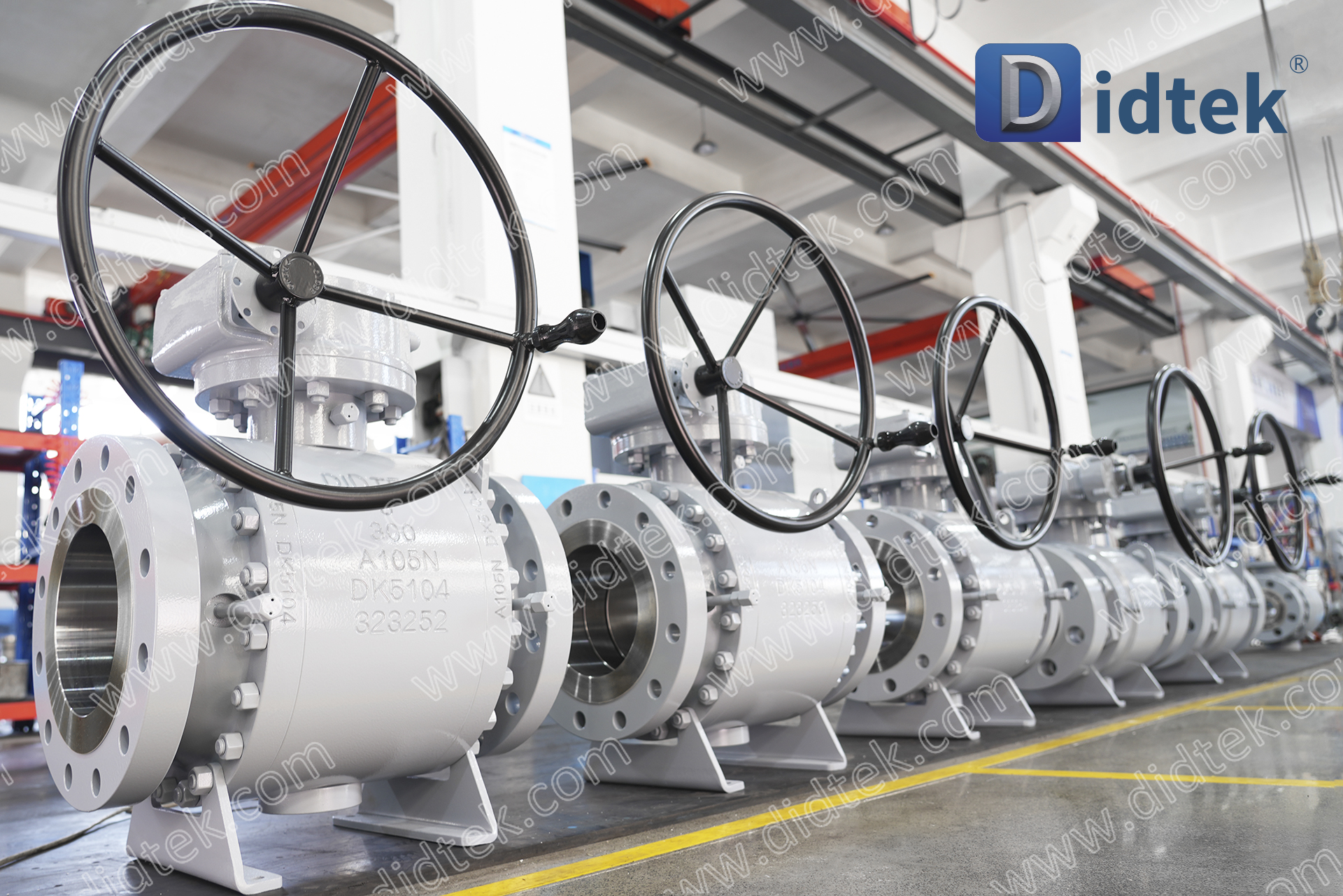

The ASTM A105N Trunnion Ball Valve with UNS N06625 Weld Overlay and TCC Coating is a premium engineered solution for high-pressure, highly corrosive, and abrasive services. By utilizing an A105N (normalized carbon steel) forged body as the structural base and cladding all wetted parts with Inconel 625 (UNS N06625), this valve offers the chemical resistance of a solid alloy valve at a more cost-effective price point. To combat erosion, the ball and seats are hard-faced with Tungsten Carbide Coating (TCC), ensuring a robust metal-to-metal seal that excels in sour gas (NACE) and slurry applications. Didtek ASTM A105N Weld Overlay UNS N06625+TCC Trunnion Ball Valve

Product Parameters

Parameter Name	Parameter
Size Range	8''
Pressure Range	300LB
Material	A105
Seal	Soft Seat: RPTFE
Temperature Range	-29°C~200°C
Design According	API6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API6FA
Inspection and Test	API 598, ASME B16.34
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

Corrosion-Resistant Overlay (CRA): The UNS N06625 weld overlay (typically 3mm thick) provides exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in chloride and H₂S environments.
TCC Hard-Facing for Wear Resistance: The Tungsten Carbide Coating (TCC) on the ball and seats offers a surface hardness exceeding 60 HRC, protecting the sealing faces from high-velocity particles and sand.
Normalized A105N Forging: The normalized heat treatment of the A105N body ensures superior impact toughness and structural stability in high-pressure cycles.
Metal-to-Metal Sealing: Engineered for absolute reliability where soft seals would fail, achieving Bi-directional Class VI or better leakage rates.
NACE Compliance: Fully compliant with NACE MR0175/ISO 15156 for sour service in oil and gas production.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

ASTM A105N Trunnion Ball Valve with UNS N06625 Weld Overlay and TCC Coating are widely utilized in demanding environments due to their superior material properties:

Sour Gas Processing: Handling raw natural gas with high H₂S and CO ₂ content.
Offshore Production: Critical topside and subsea manifold systems in salt-spray environments.
Abrasive Slurry Service: Mining and refining processes with high solid concentrations.
High-Pressure Injection: Water and gas injection systems in EOR (Enhanced Oil Recovery).
