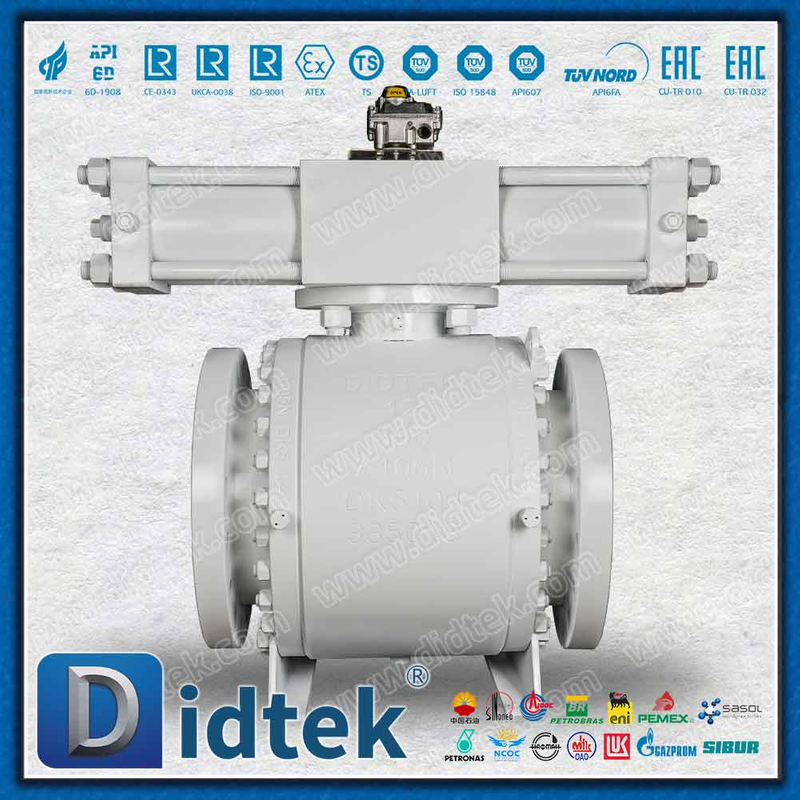

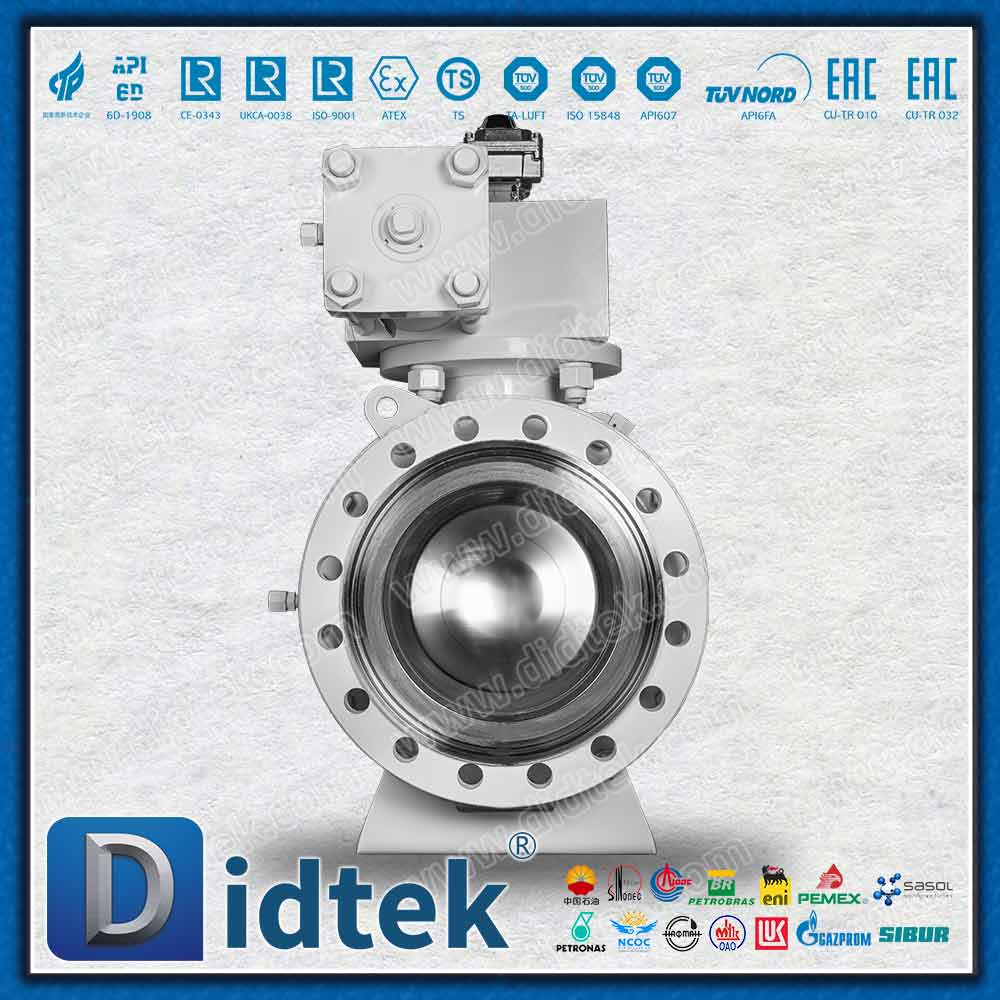

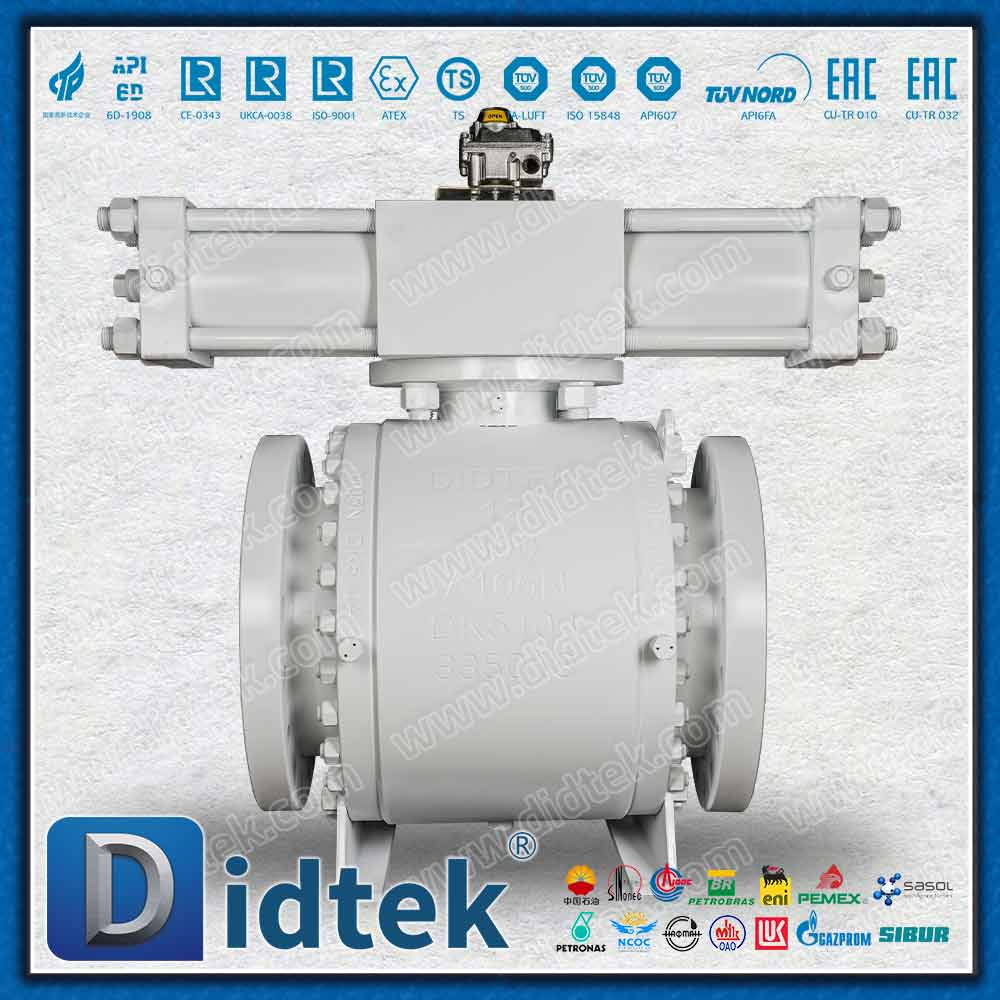

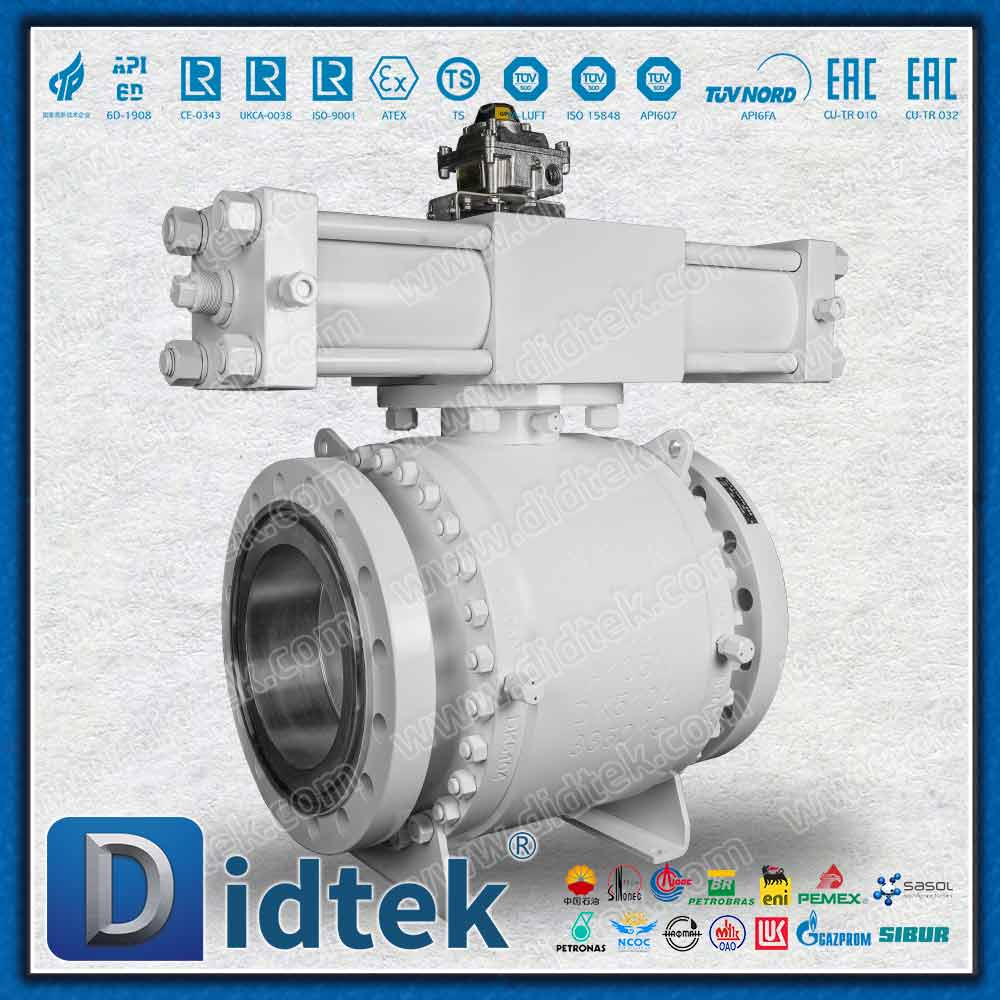

Marine Engineering Pneumatic & Hydraulic Forged Steel Metal-Seated Trunnion Ball Valve

The Marine Engineering Forged Steel Metal-Seated Trunnion Ball Valve represents the pinnacle of flow control technology for offshore and subsea environments.

Model:
Q747Y-300LB
Brand:
DIDTEK
Code:
TRBV-FTBV-045

Availability:

Quantity:



Inquire

Marine Engineering Ball Valve Pneumatic Hydraulic Ball Valve Metal Seated Trunnion Valve Forged Steel Offshore Valve TCC Coated Hard Seal Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

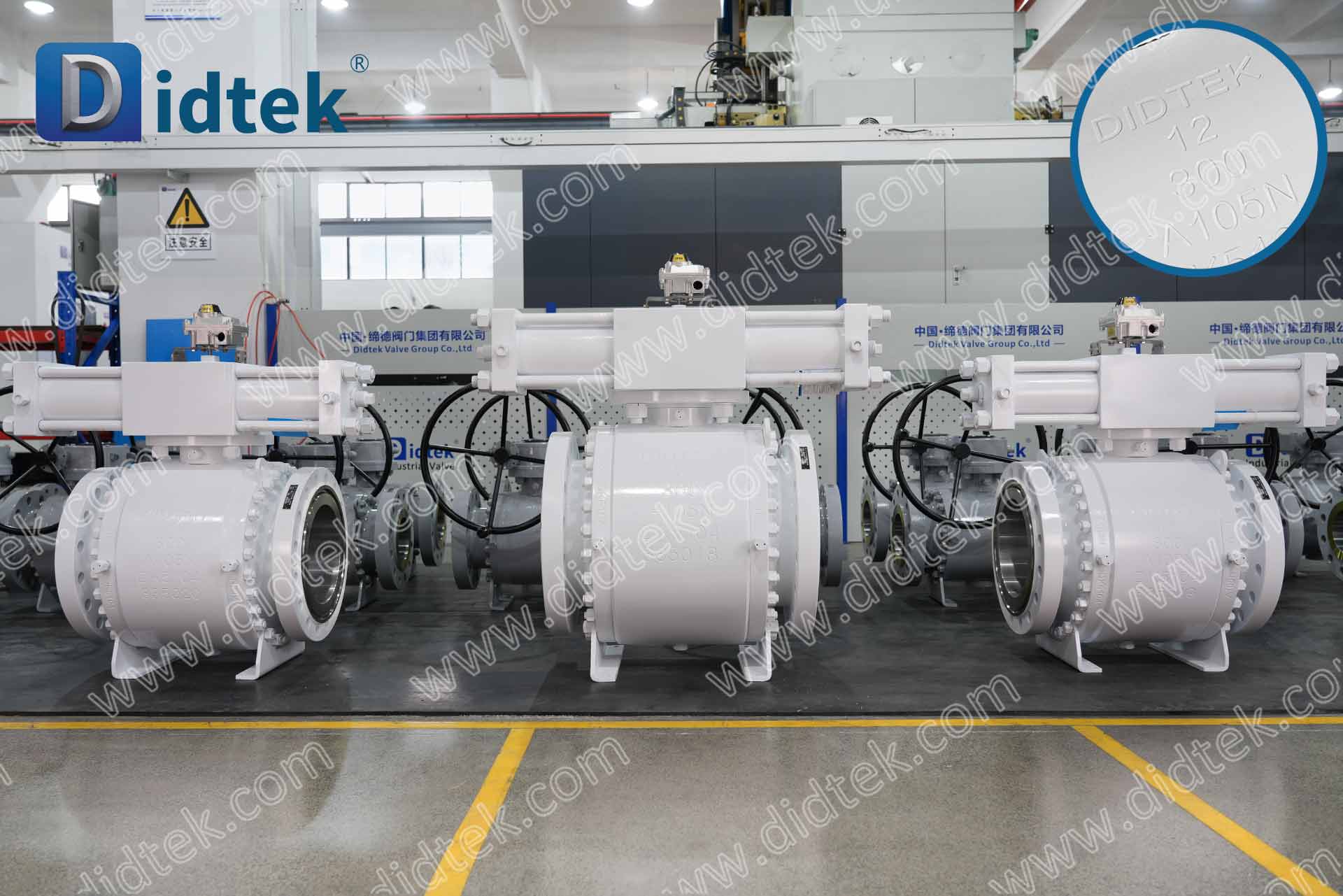

The Marine Engineering Forged Steel Metal-Seated Trunnion Ball Valve represents the pinnacle of flow control technology for offshore and subsea environments. Engineered with a high-density forged body and a metal-to-metal (Hard Seal) interface, this valve is designed to survive the most abrasive and corrosive conditions, such as seawater injection, hydrocarbon processing, and FPSO topside services. Integrated with high-performance Pneumatic or Hydraulic actuators, it provides flexible automation options—whether you need the rapid response of air or the high-torque, compact power of hydraulics—all while ensuring a zero-leakage seal that soft-seated valves simply cannot match. B-45 DIDTEKFTMSBV - Marine Engineering Pneumatic & Hydraulic Forg

Product Parameters

Parameter Name	Parameter
Size Range	12''
Pressure Range	300LB

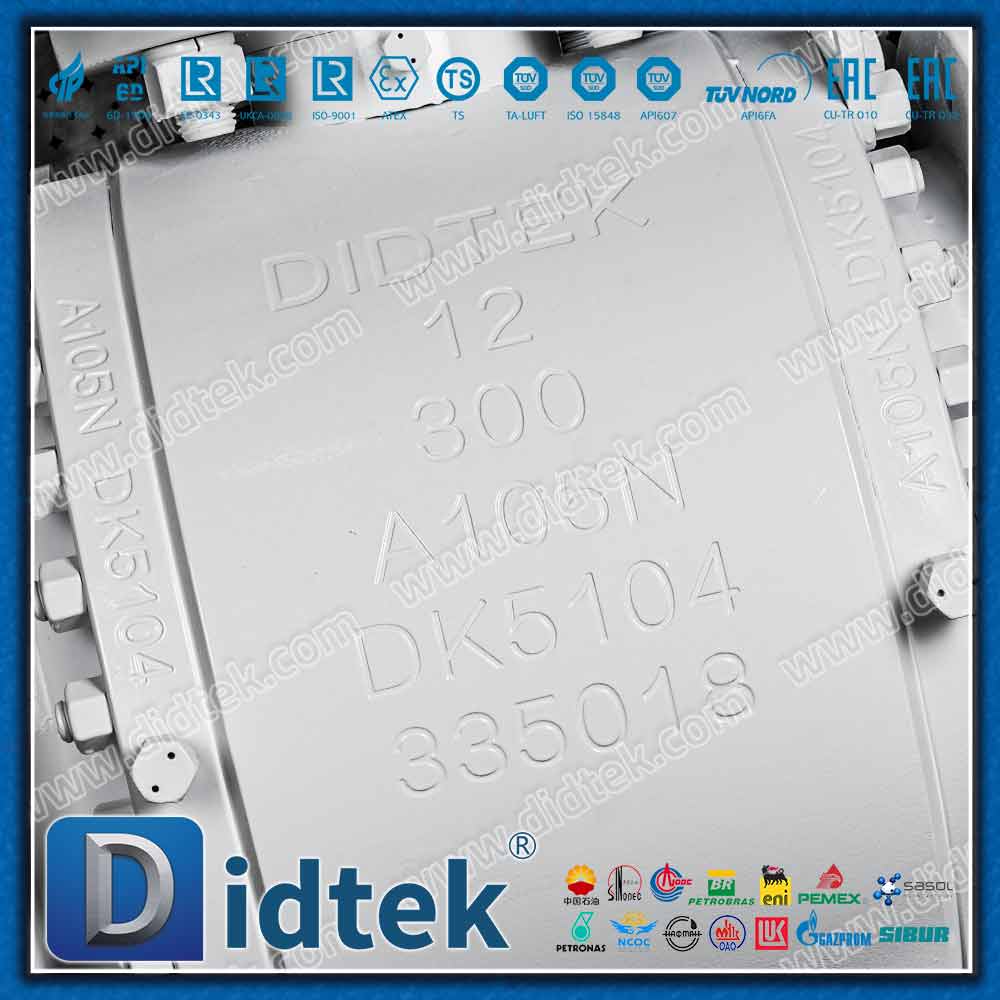

Material	A105N
Seal	Metal Seat
Temperature Range	-196°C~450°C
Design According	API 608
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic & Hydraulic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

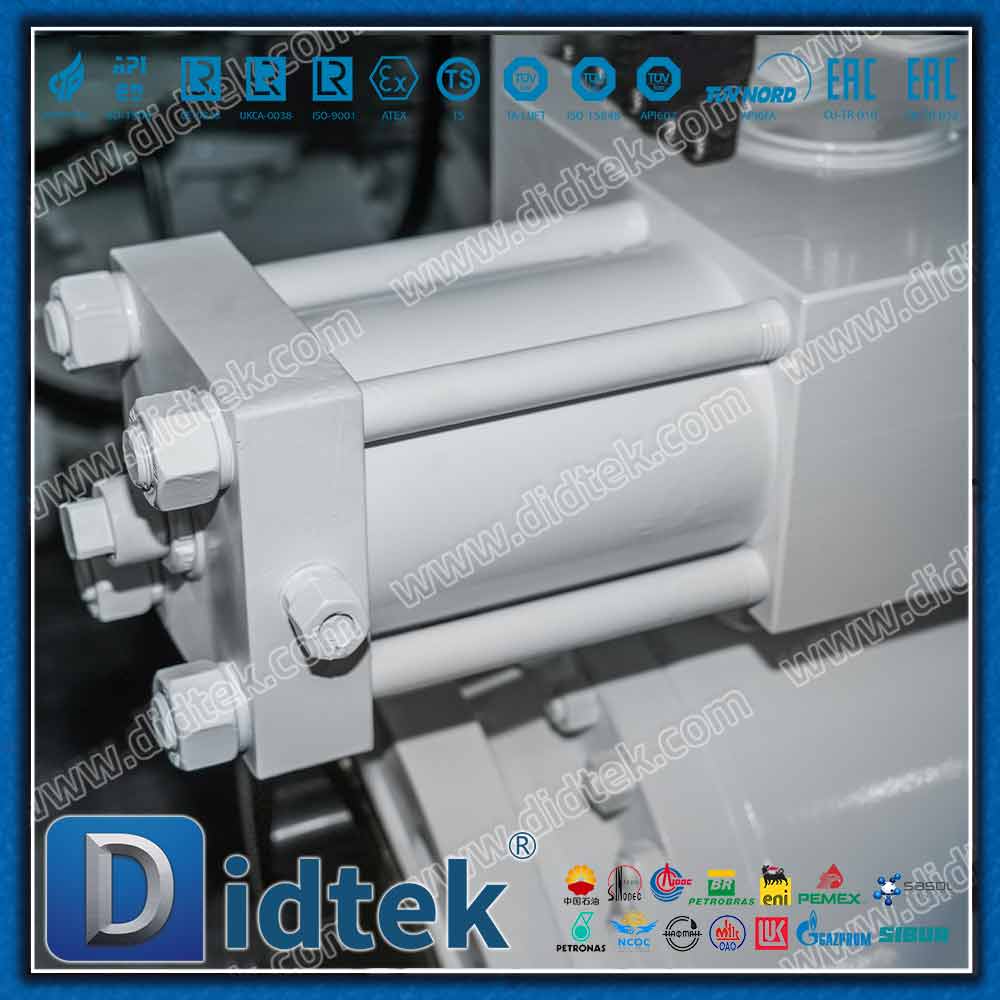

Dual-Actuation Capability: Supports both Pneumatic (for fast action/standard air) and Hydraulic (for high torque/subsea depth) actuators, adapting to various offshore power sources.
Hard-Faced Metal Sealing: The ball and seats are coated with Tungsten Carbide (TCC) or Stellite, achieving a hardness of HRC 70+ to resist erosion from seawater sand and chemical scales.
Marine-Grade Forged Integrity: Forged steel (A105N, F316, or Duplex F51/F53) eliminates casting porosity, providing the high fracture toughness required for thermal cycling and vibration.
Corrosion Protection: External surfaces are typically treated with C5-M (Marine Grade) epoxy coatings or involve specialized materials like Inconel 625 cladding for critical sealing areas.
Trunnion-Mounted Performance: The fixed-ball design ensures stable sealing and low operating torque, even under extreme pressure differentials (up to Class 2500).

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Marine Engineering Pneumatic & Hydraulic Forged Steel Metal-Seated Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Offshore Platforms: High-pressure seawater cooling and fire-fighting systems.
Subsea Manifolds: Remote hydraulic-operated valves for deepwater flowlines.
FPSO Topsides: Crude oil and gas processing modules where space is limited and reliability is key.
LNG Terminals: Loading and unloading lines requiring fire-safe metal seats.
