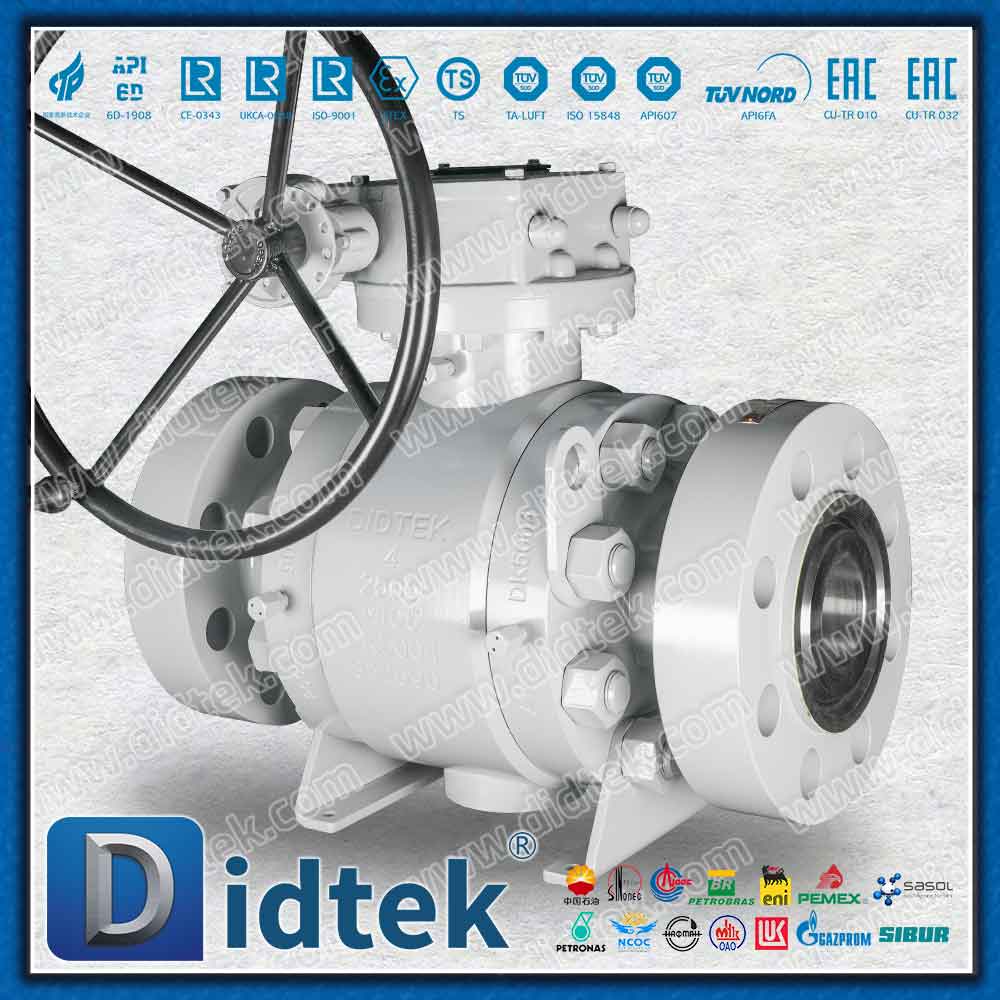

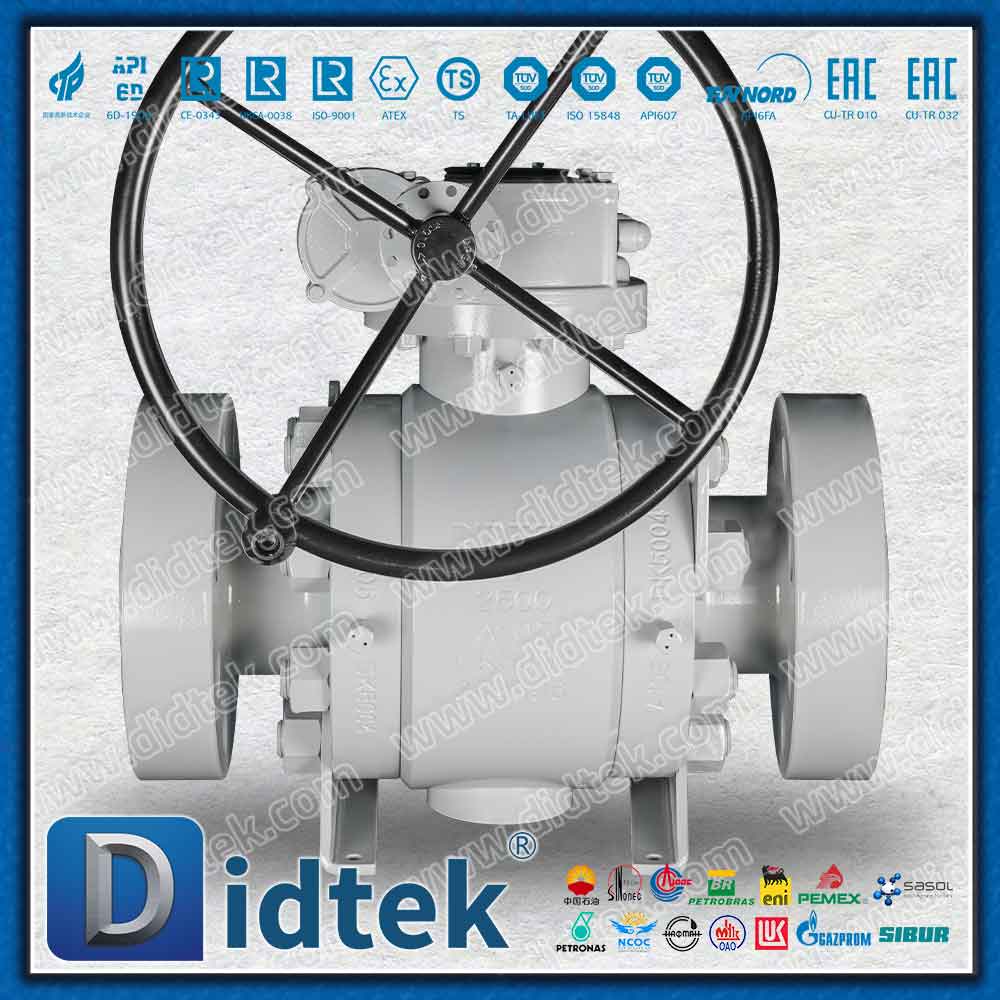

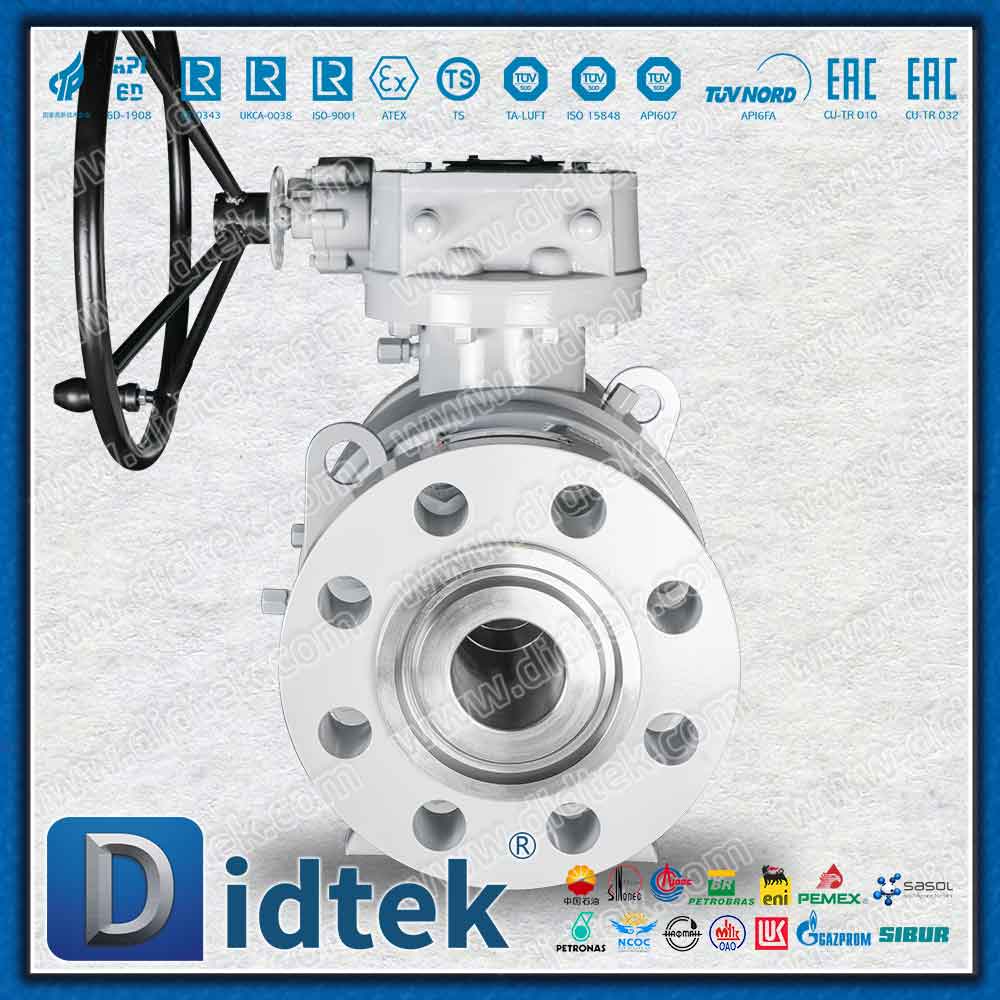

2500LB High Pressure Forged Steel Ball Valve for Water Inject

The 2500LB High Pressure Forged Steel Ball Valve is a specialized solution engineered for high-pressure water injection (WI) and enhanced oil recovery (EOR) operations.

Model:
Q347PEEK-2500LBC
Brand:
DIDTEK
Code:
TRBV-FTBV-043

Availability:

Quantity:



Inquire

2500LB Water Injection Valve High Pressure Forged Ball Valve RTJ Class 2500 Ball Valve PEEK Seated Injection Valve API 6D Trunnion Mounted Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

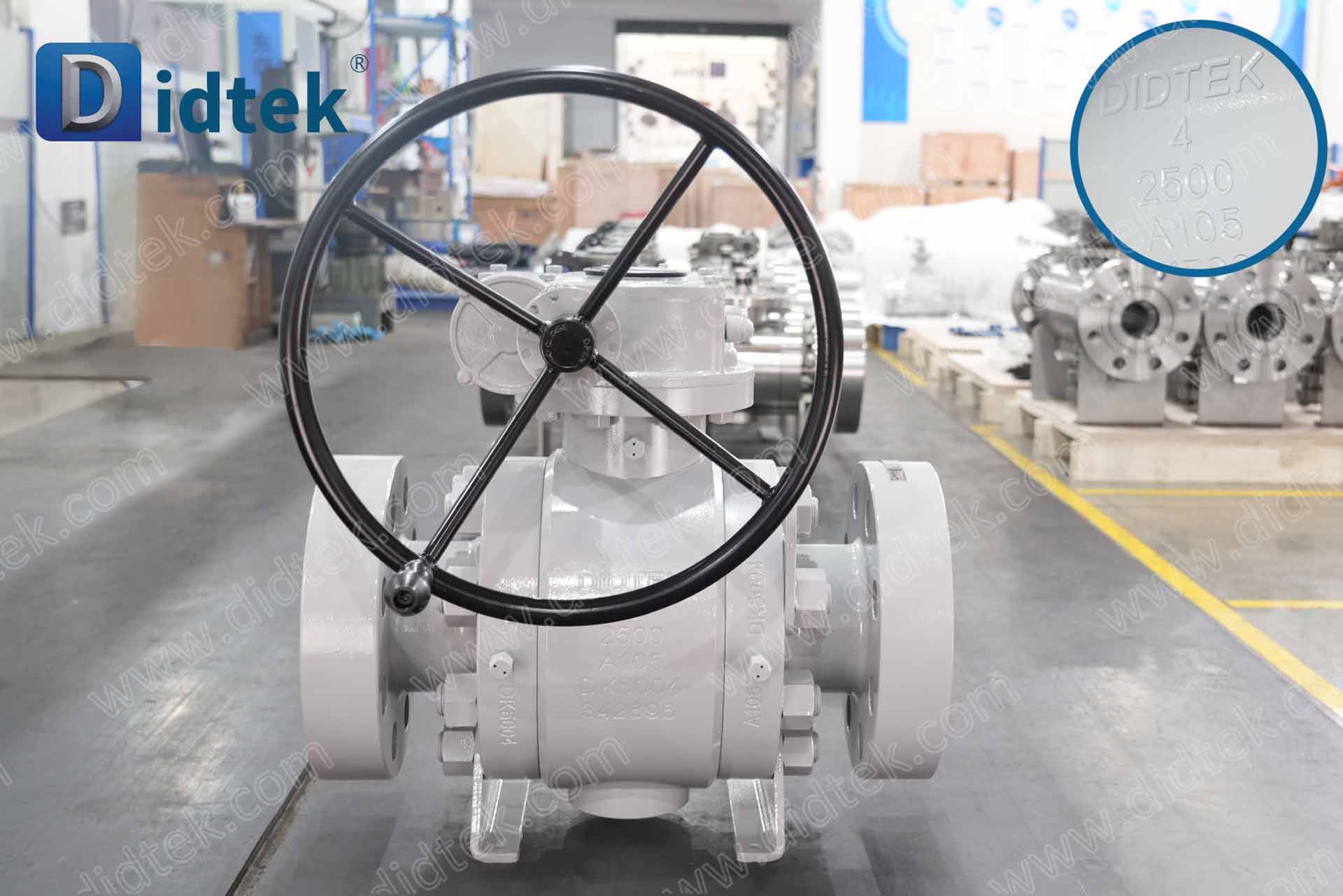

The 2500LB High Pressure Forged Steel Ball Valve is a specialized solution engineered for high-pressure water injection (WI) and enhanced oil recovery (EOR) operations. Crafted from high-integrity forged steel (A105N, LF2, or Duplex Stainless Steel), this valve provides superior structural density and fatigue resistance to handle the extreme cyclic loads of injection manifolds. Featuring a trunnion-mounted design and high-performance PEEK or Metal-to-Metal seals, it ensures bubble-tight shut-off and long-term reliability in saline or chemically treated water environments. B-43 DIDTEKFTMSBV - 2500LB High Pressure Forged Steel Ball Valve for Water Inject

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	2500LB
Material	A105
Seal	Soft Seat: PEEK
Temperature Range	-26°C~100°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RTJ
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Ultra-High Pressure Integrity: Rated for ASME Class 2500, capable of operating at pressures up to 425 Bar (6170 PSI), essential for deep-well water injection.
Advanced PEEK Sealing: PEEK (Polyetheretherketone) seats provide exceptional mechanical strength and resistance to "cold flow," maintaining a reliable seal under intense water pressure.
Corrosion & Erosion Resistance: Trims are often crafted from F51/F53 Duplex steel or coated with Tungsten Carbide (TCC) to resist erosion from suspended solids and corrosion from dissolved oxygen.

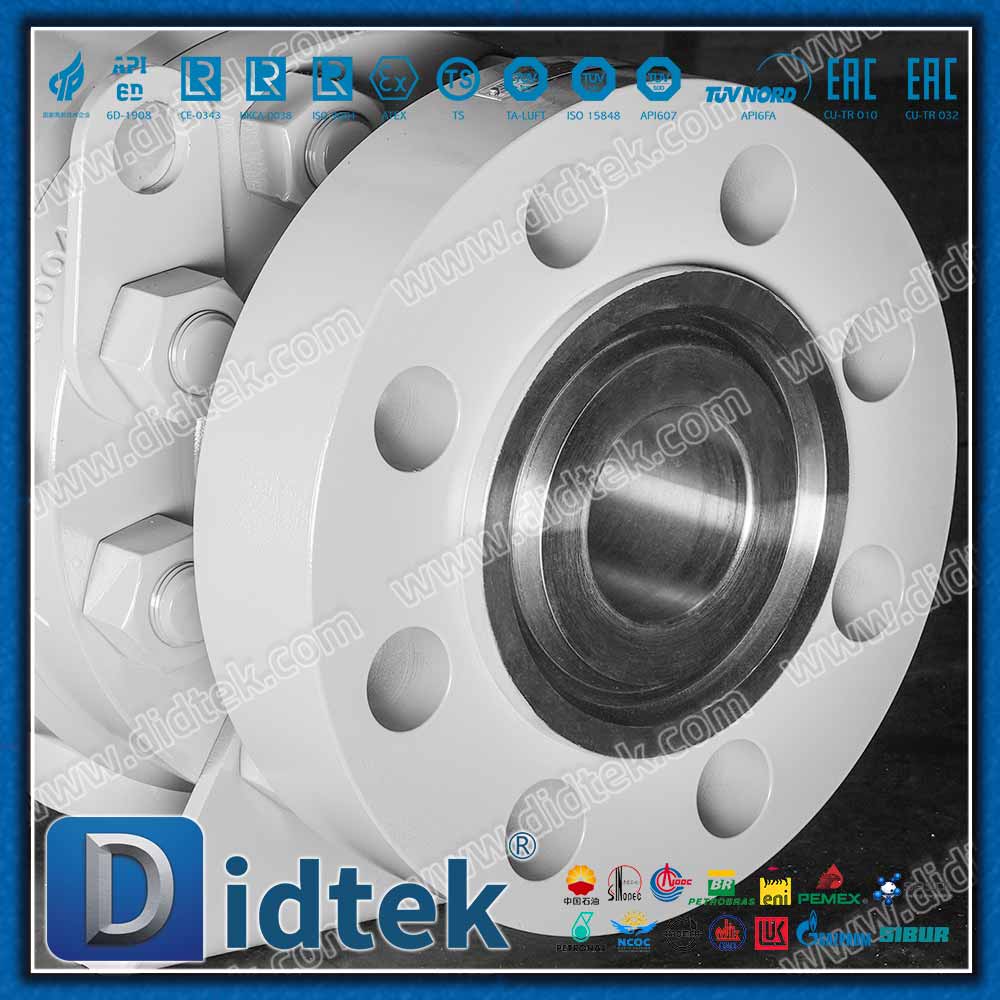

RTJ Leak-Proof Connection: Equipped with Ring Type Joint (RTJ) flanges to provide the most secure metal-to-metal external seal for high-vibration injection lines.
Double Block and Bleed (DBB): Fully compliant with API 6D, allowing for safe maintenance and seat integrity checking while the pipeline is under pressure.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

2500LB High Pressure Forged Steel Ball Valve for Water Injection Service are widely utilized in demanding environments due to their superior material properties:

Water Injection Manifolds: Primary isolation for high-pressure distribution lines.
EOR / Chemical Injection: Controlling flow for polymer or surfactant injection systems.
Offshore WI Platforms: High-pressure seawater injection for reservoir pressure maintenance.
