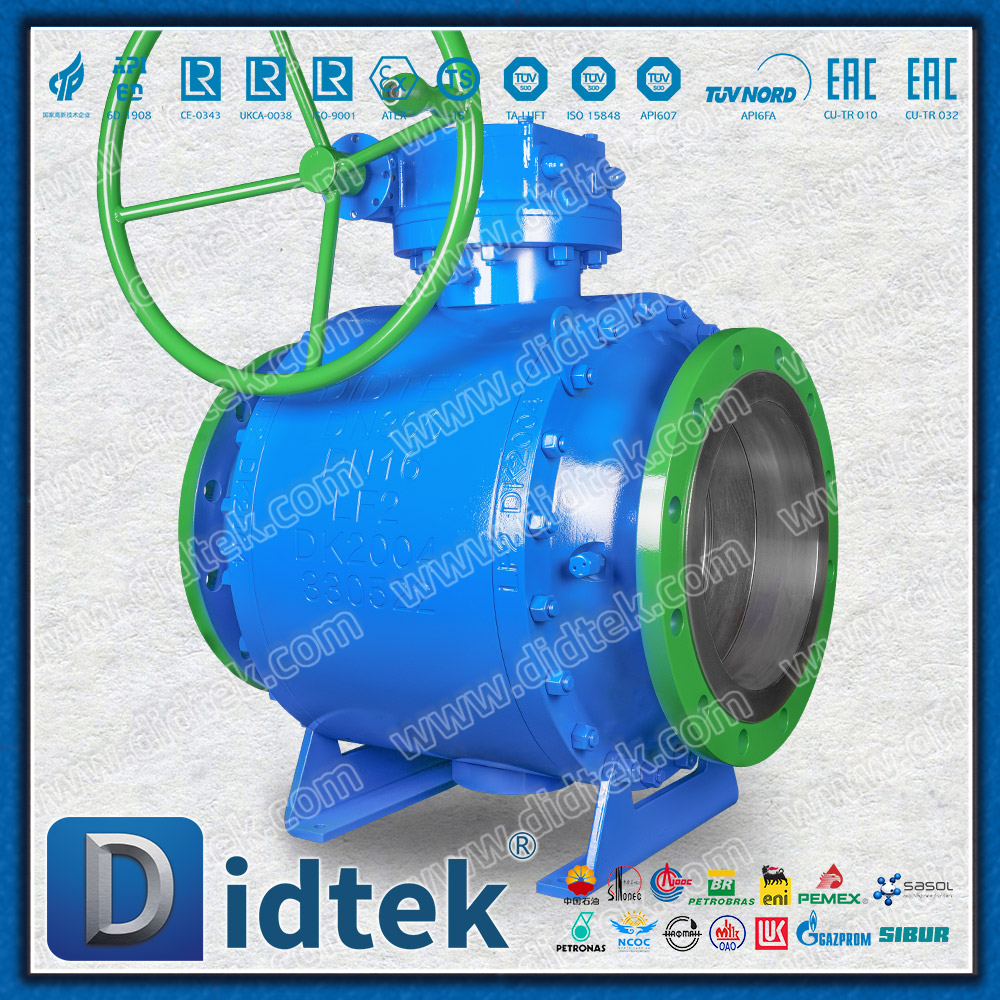

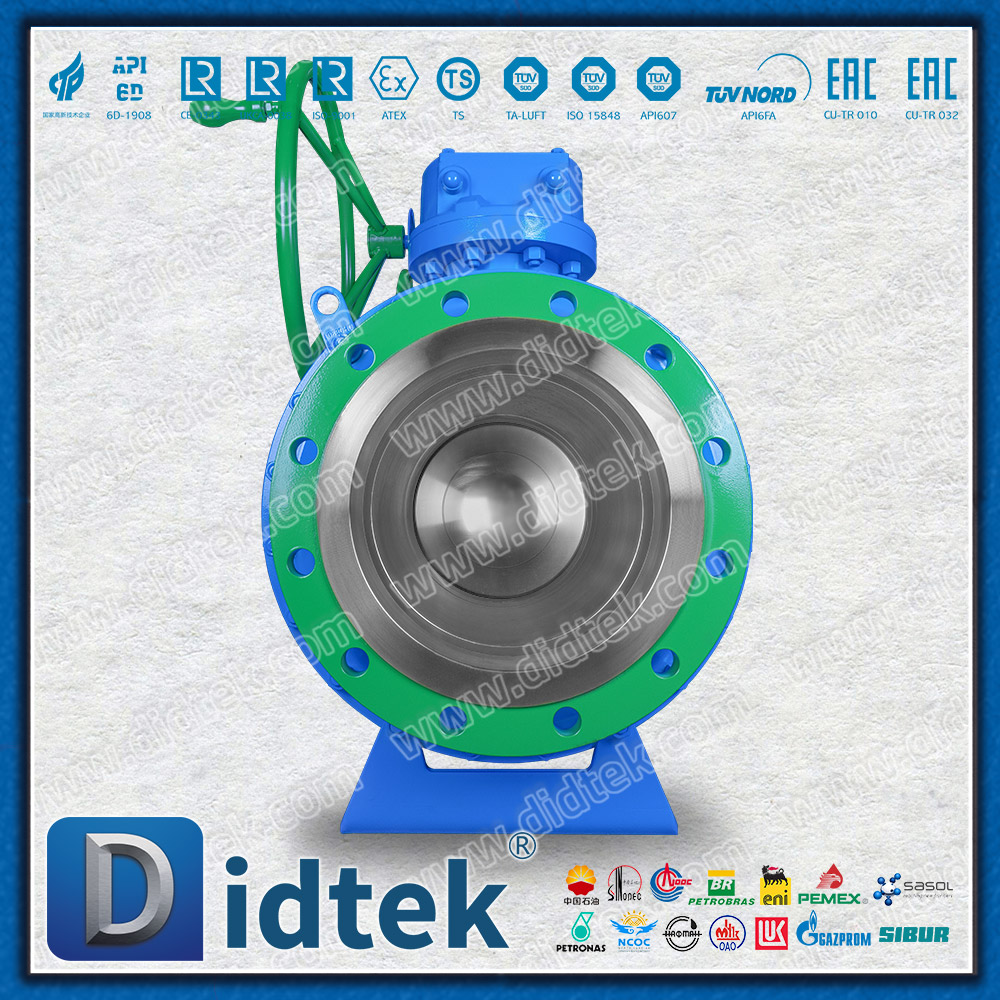

LF2 Full Bore Trunnion Ball Valve for High Pressure Industry

The Didtek LF2 Full Bore Trunnion Ball Valve is a high-performance fluid control solution specifically engineered for high-pressure industrial and low-temperature services.

Model:
Q347F-16L
Brand:
DIDTEK
Code:
TRBV-FTBV-040

Availability:

Quantity:



Inquire

LF2 Ball Valve Full Bore Trunnion Valve ASTM A350 LF2 Valve High Pressure Ball Valve API 6D Forged Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

The Didtek LF2 Full Bore Trunnion Ball Valve is a high-performance fluid control solution specifically engineered for high-pressure industrial and low-temperature services. Forged from ASTM A350 LF2 carbon steel, it ensures exceptional impact toughness at temperatures as low as -46℃. The Full Bore design provides an unobstructed flow path, minimizing pressure drop and facilitating pigging operations in transmission pipelines. Featuring a Trunnion-mounted structure, the valve maintains low operating torque even under extreme high-pressure differentials.

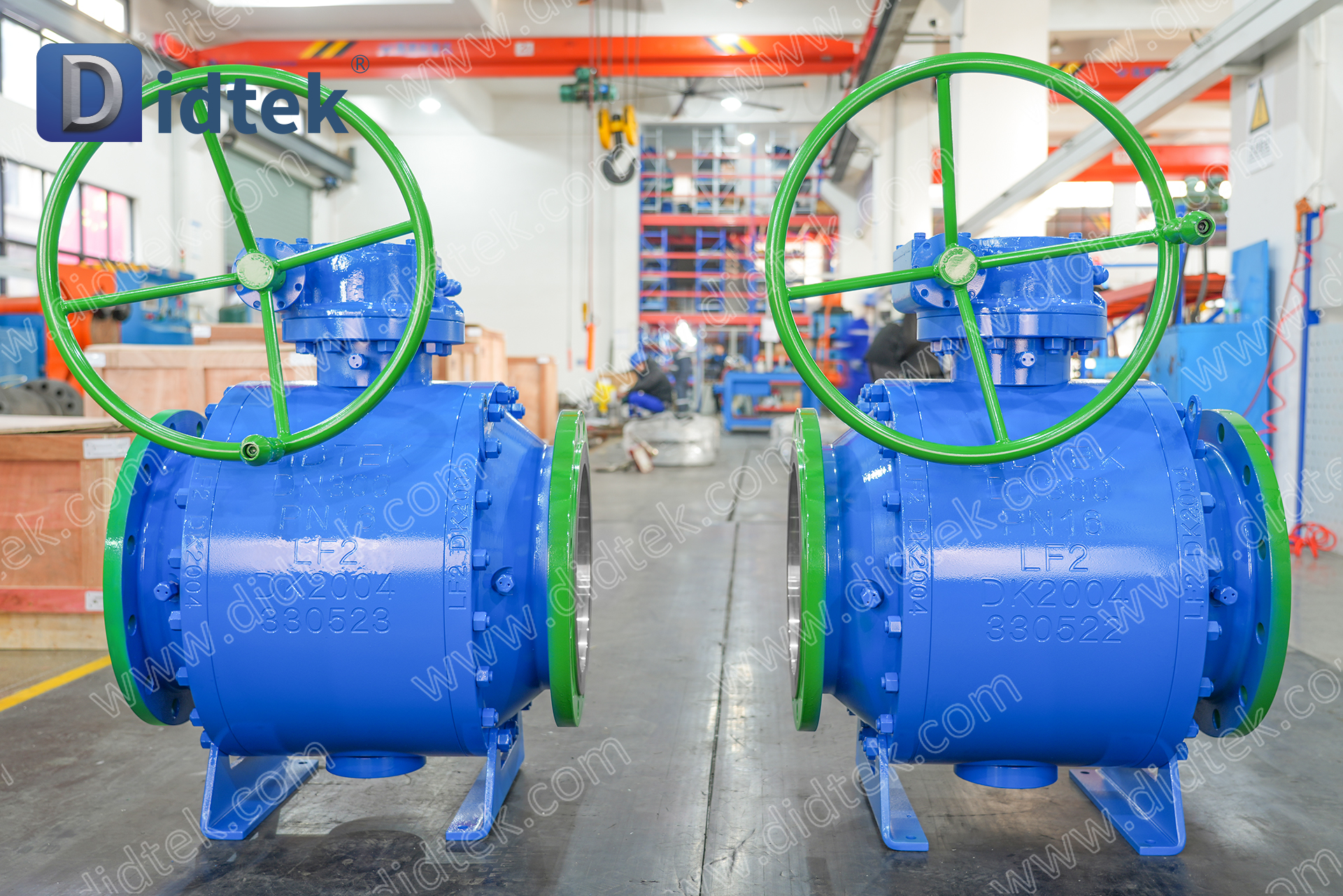

B-40 DIDTEKFTMSBV-LF2 Full Bore Trunnion Ball Valve for High Pressure Industry

Product Parameters

Parameter Name	Parameter

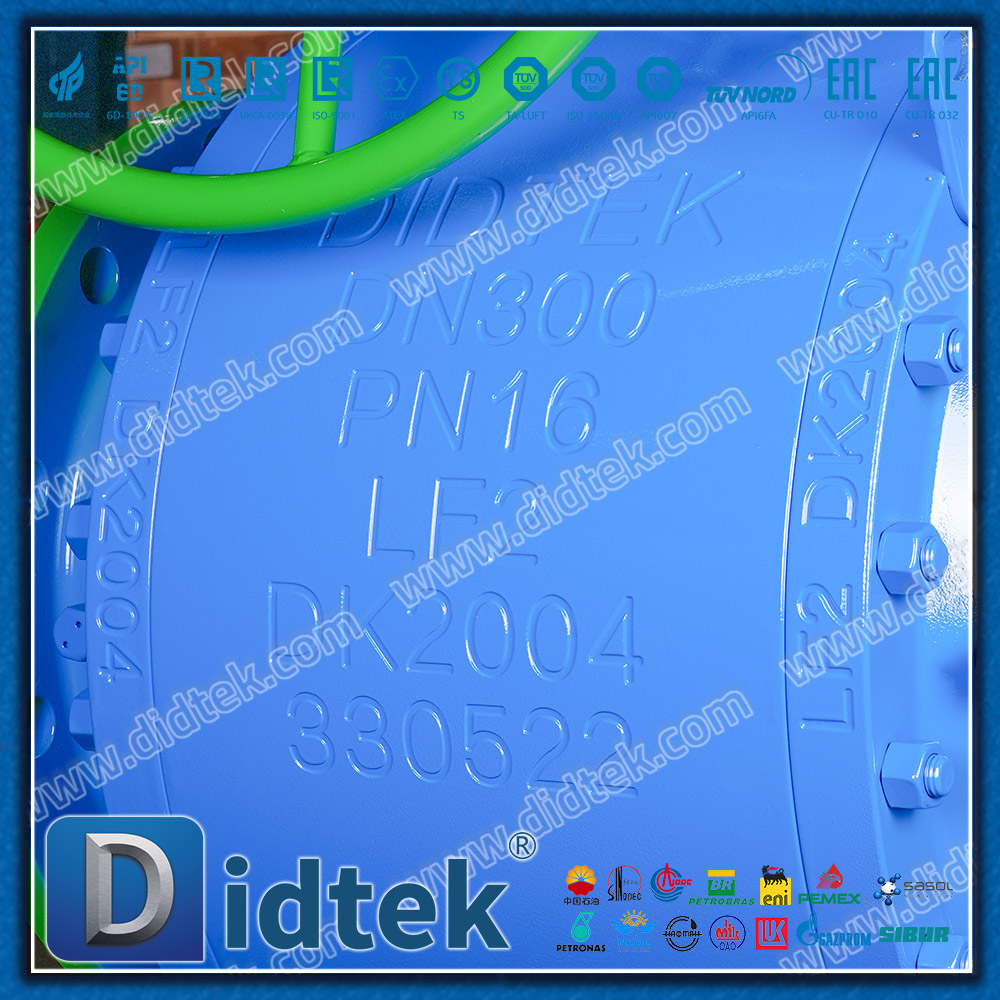

Size Range	DN300
Pressure Range	PN16
Material	LF2
Seal	Soft Seat: RPTFE
Temperature Range	-60°C~180°C
Design According	API6D
Face to Face	ASME B16.10
End Flanges	GOST 33259
End Connection Type	RTJ
Fire Safety	API607, API6A
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

ASTM A350 LF2 Material: Premium low-temperature forged steel with specialized heat treatment to prevent brittle fracture in cold climates.

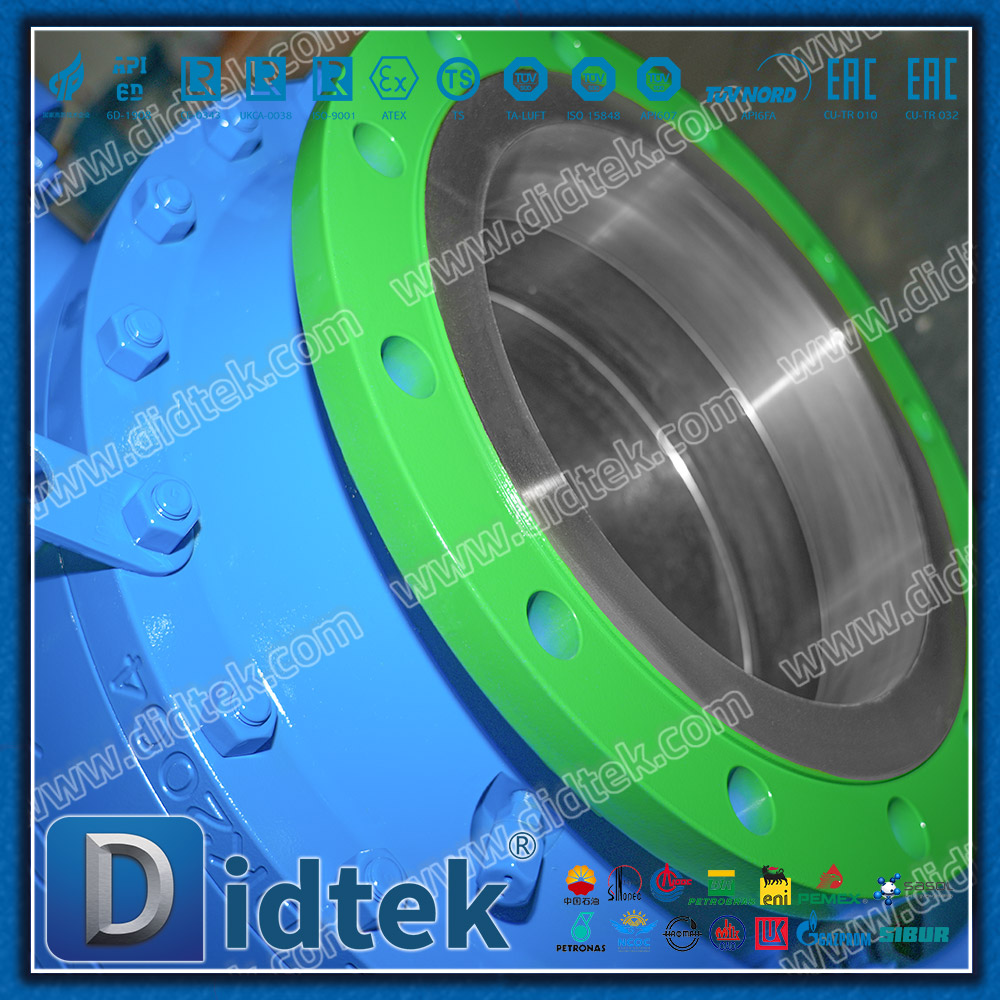

Full Bore Flow Optimization: The internal diameter matches the pipeline, minimizing flow resistance and supporting Pigging operations for maximum transport efficiency.
Trunnion Mounted Stability: The ball is fixed by upper and lower shafts to absorb high line pressure, reducing seat friction and extending service life.
Double Block and Bleed (DBB): Fully compliant with API 6D, providing independent upstream and downstream sealing with a cavity relief function for enhanced safety.
Emergency Sealant Injection: Equipped with auxiliary injection fittings to provide an emergency seal in case of seat damage, ensuring operational continuity.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Aluminum-magnesium series anti-rust aluminum alloy
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Lip Seal with Vent & Drain Flange Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Oil & Gas Transmission: Main pipelines for oil and gas, especially those located in high-latitude or arctic regions.
LNG Storage & Transport: LNG terminals and associated mid-to-low temperature infrastructure.
Natural Gas Processing: High-pressure desulfurization, dehydration, and compressor station systems.
Petrochemical Production: Process lines requiring high flow rates, low pressure drops, and high-pressure reliability.
