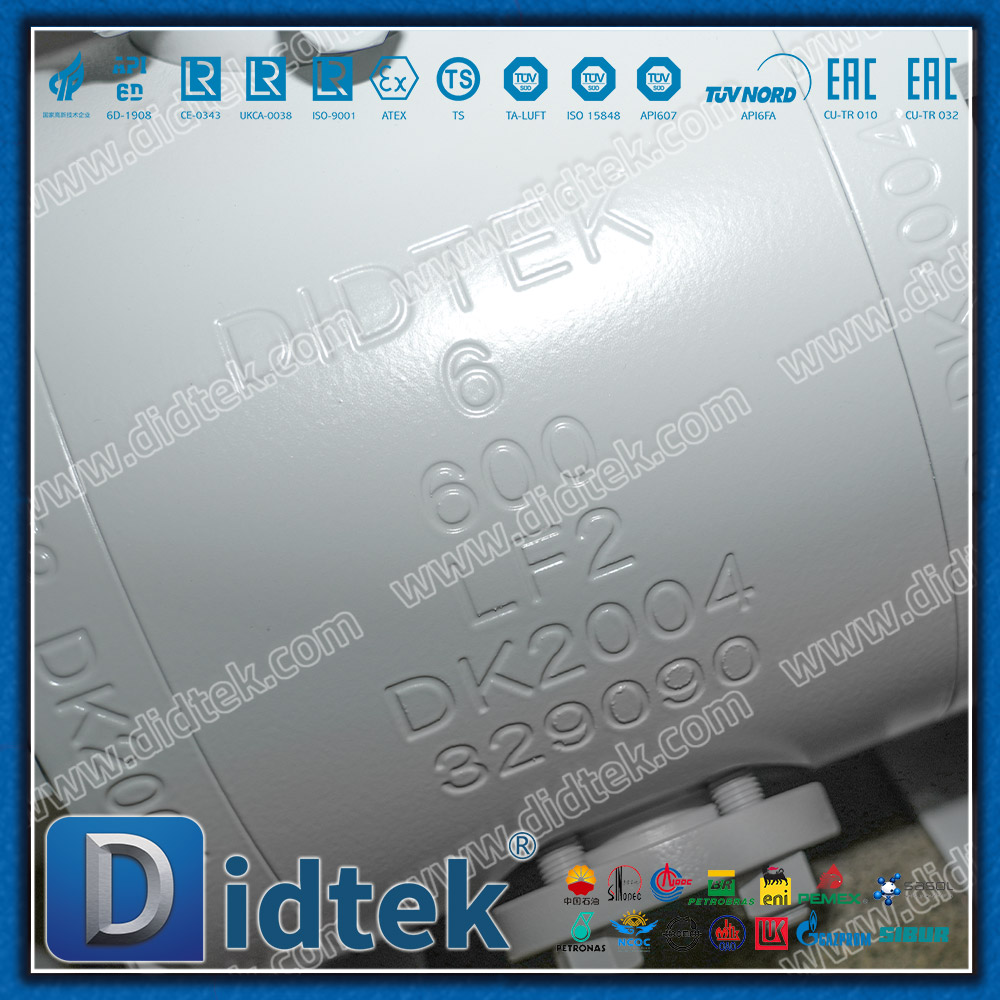

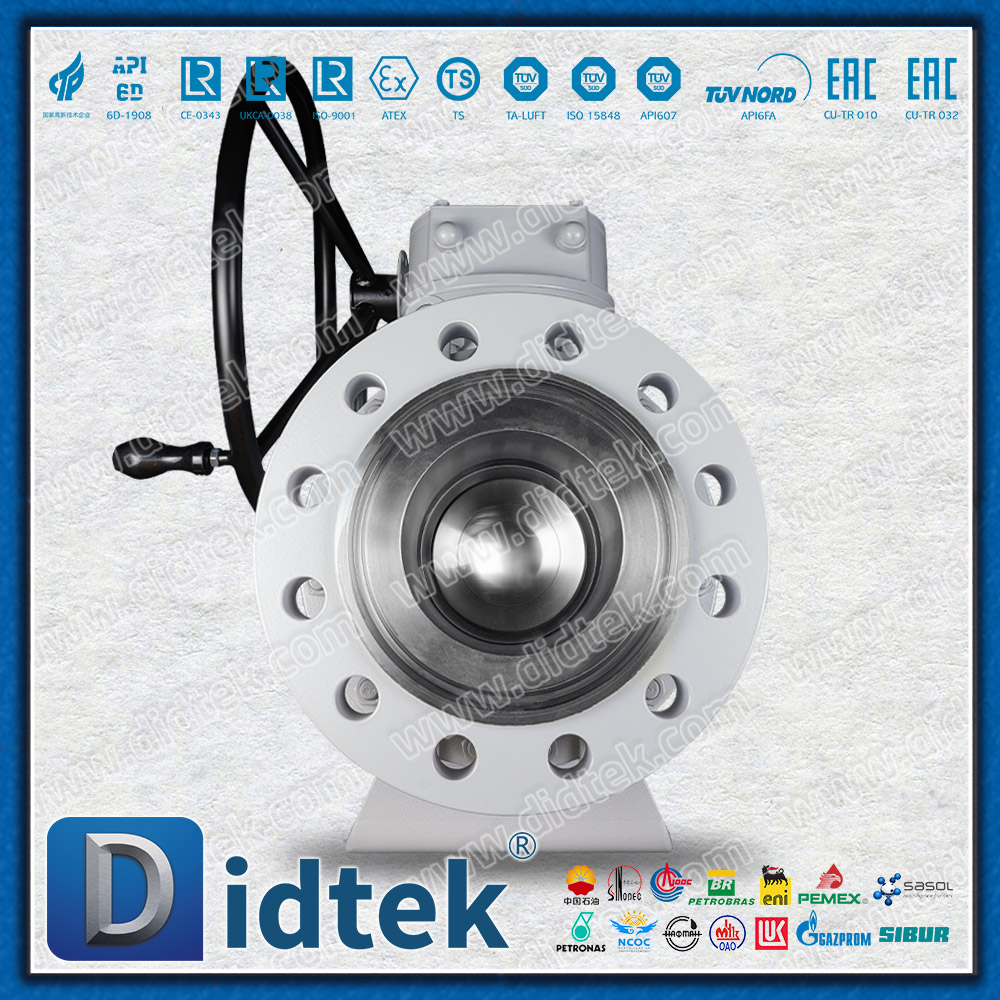

Lip Seal with Vent & Drain Flange Trunnion Ball Valve

The Didtek Lip Seal Trunnion Ball Valve is engineered for high-integrity sealing in the most demanding industrial services.

Model:
Q347F-600LBL
Brand:
DIDTEK
Code:
TRBV-FTBV-039

Availability:

Quantity:



Inquire

Trunnion ball valve Lip Seal Valve Vent and Drain Flange Antistatic Device Zero Leakage

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

The Didtek Lip Seal Trunnion Ball Valve is engineered for high-integrity sealing in the most demanding industrial services. Featuring advanced Spring-Energized Lip Seals, this valve provides superior performance compared to standard O-rings, especially in cryogenic, high-pressure, or aggressive chemical media. With integrated Vent and Drain ports, the valve facilitates full Double Block and Bleed (DBB) functionality, allowing operators to safely relieve body cavity pressure and verify seat integrity without interrupting the process flow.

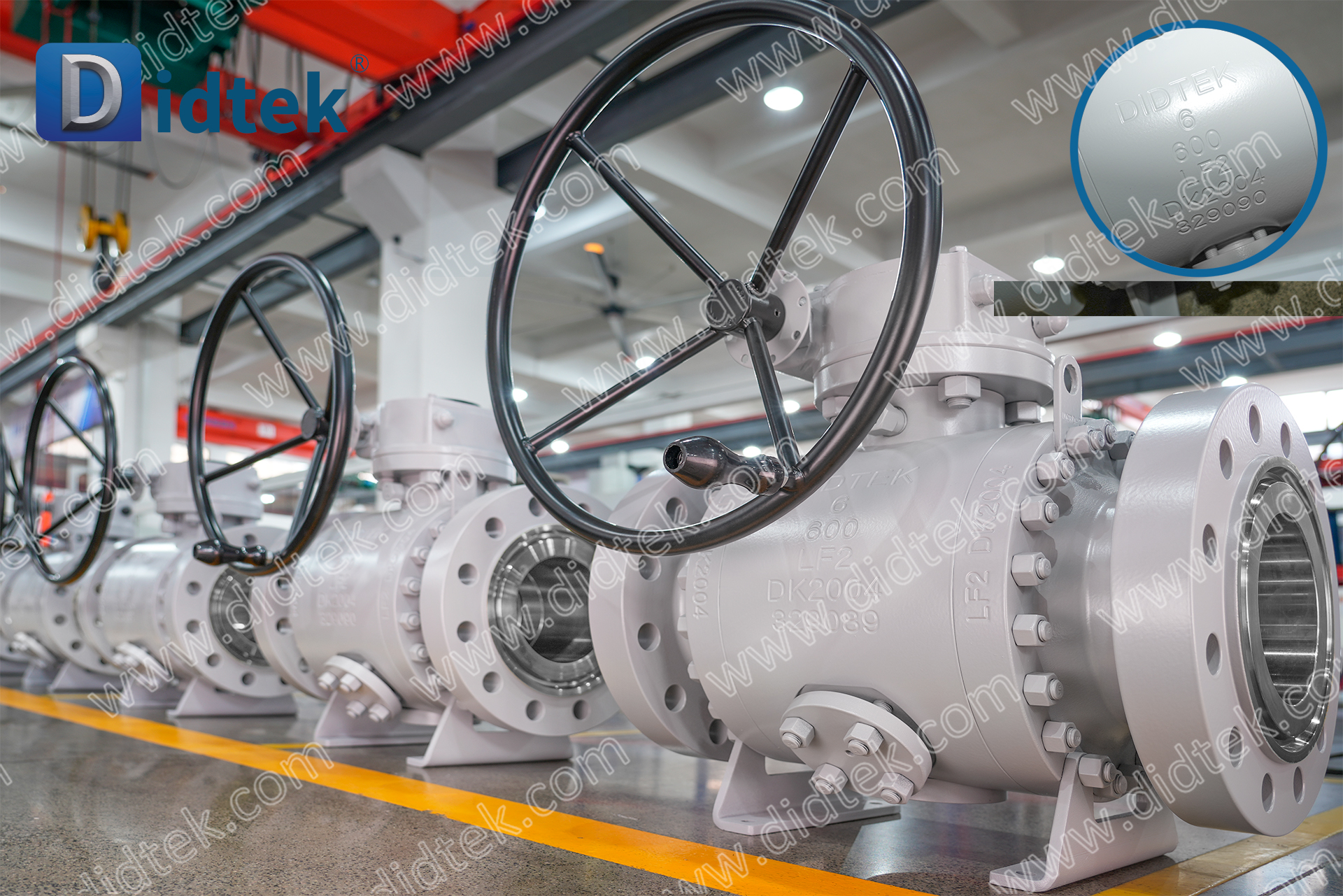

B-39 DIDTEKFTMSBV-Lip Seal with Vent & Drain Flange Trunnion Ball Valve

Product Parameters

Parameter Name	Parameter
Size Range	6"
Pressure Range	600LB
Material	LF2
Seal	Lip Seal: PTFE+ELGILOY
Temperature Range	-45°C~200°C
Design According	API6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RTJ
Fire Safety	AP1607, API6A
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

✔️ Structure : 2 pieces or 3 pieces body
✔️ High shut-off sealing mechanism and low torque operation
✔️ Block and bleed function
✔️ Self-cavity pressure relief
✔️ Fire safe design
✔️ Blow out proof stem construction
✔️ Anti-static design
✔️ Locking device (for lever handle operation)
✔️ ISO 5211 actuator mounting
✔️ Emergency grease injection (option)
✔️ PN design can be available

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Aluminum-magnesium series anti-rust aluminum alloy
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Lip Seal with Vent & Drain Flange Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

LNG (Liquefied Natural Gas): Leveraging the flexibility of lip seals in cryogenic temperatures for reliable sealing in LNG storage and transport.
Oil & Gas Transmission: Enabling pigging operations, periodic drainage, and on-line seat integrity monitoring.
Chemical & Petrochemical: Handling highly corrosive, volatile, or polymerizing hazardous fluids.
Air Separation Units (ASU): High-pressure cryogenic circulation systems for liquid oxygen, nitrogen, and argon.
